GF83.70-P-4204RT STH Radio Remote Control Transmitter, Component Description

GF83.70-P-4204RT STH Radio Remote Control Transmitter, Component Description
- Only ECE-cars [models 164, 251 as of 1.6.07]

Component Identification:

Design
The stationary heater transmitter consists essentially of a radio transmitter, two-way radio receiver and the following display and control elements:

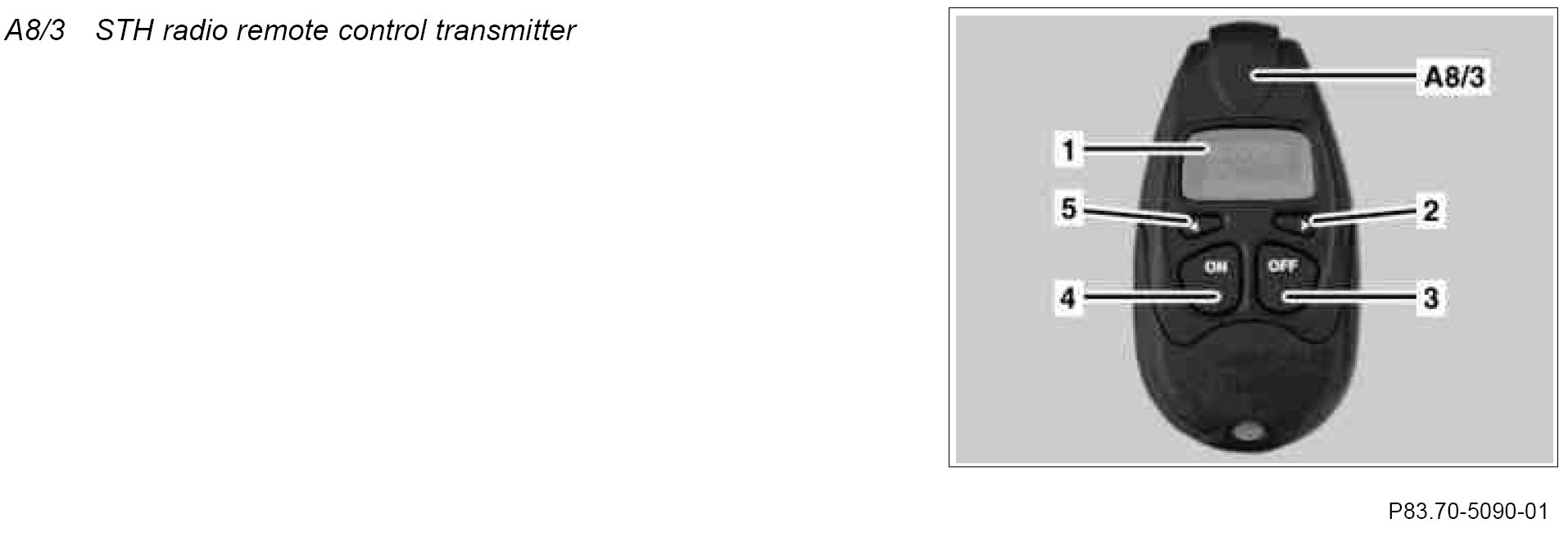

^ Display (1)
^ Right arrow button (2)
^ Left arrow button (5)
^ ON button (4)
^ OFF button (3)

Task
The stationary heater transmitter can be used to:
^ switch the stationary heater (STH) on and off
^ call up the stationary heater's operating condition

The roof antenna module (A2/93) receives the radio signal and forwards it via the telephone/cell phone/STH radio remote control antenna splitter (A2/53) to the receiver of the stationary heater radio remote control (A6/1). From there the request is forwarded to the stationary heater control unit (A6n1).

The stationary heater transmitter has a max. range of approx. 300 m (depending on the environment).

Operating condition query
A single actuation of one of the arrow buttons on the stationary heater transmitter can at any time call up an inquiry of the operating condition, irrespective of the manner in which the stationary heater was activated. The corresponding stationary heater status is shown on the display.
