GF40.15-P-5129RTU Central TPM (RDK) Antenna Component Description

GF40.15-P-5129RTU Central TPM [RDK] antenna component description
- with CODE (470) Tire pressure monitor (base)
- with CODE (494) USA version

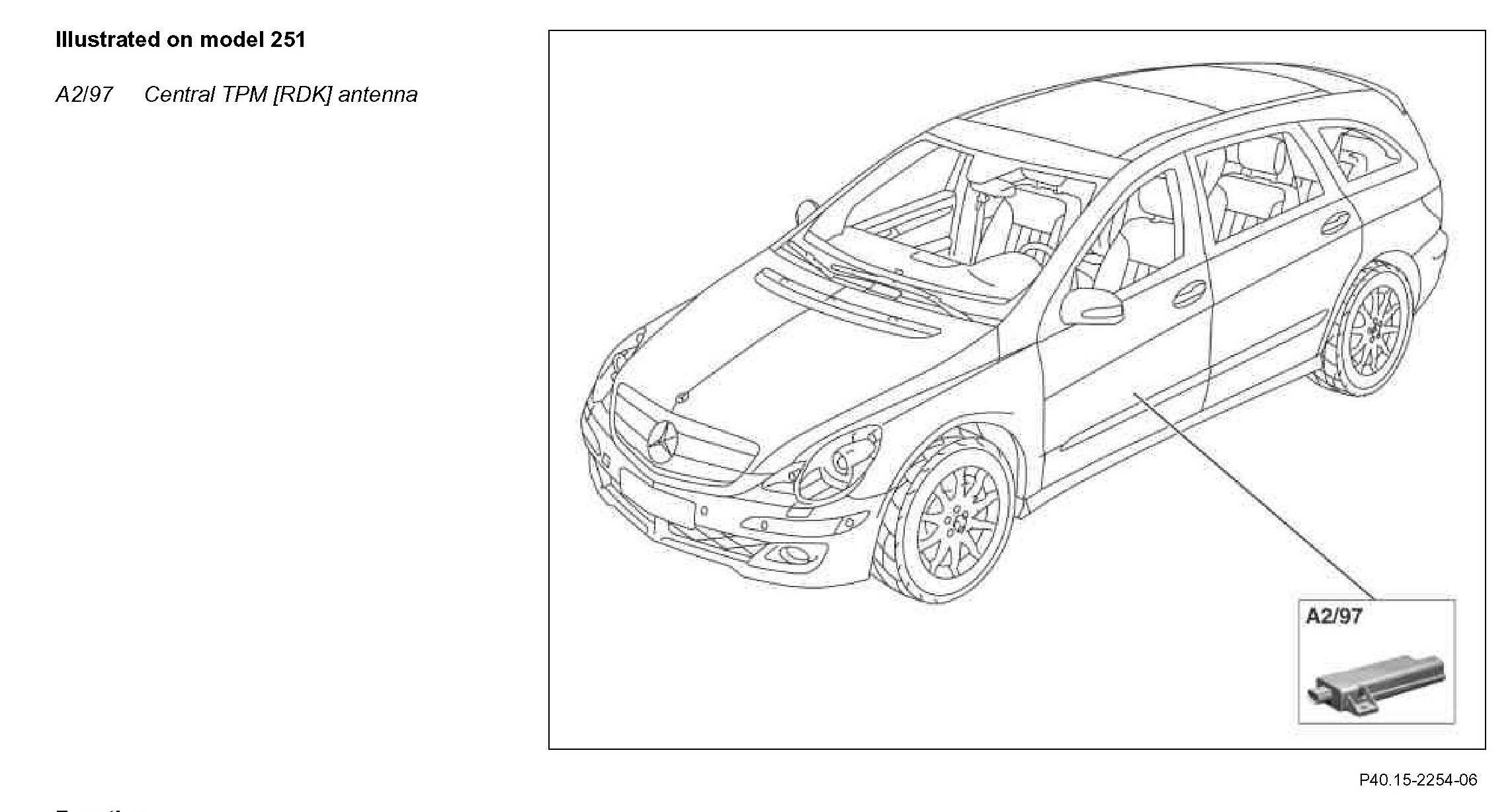

Component Identification:

Function
The central TPM [RDK] antenna receives the data transmitted by the corresponding wheel sensors by radio signal.

The data transmitted by the left front TPM [RDK] wheel sensor (A69/1), right front TPM [RDK] wheel sensor (A69/2), left rear TPM [RDK] wheel sensor (A69/3) and right rear TPM [RDK] wheel sensor (A69/4) are relayed to the TPM [RDK] control unit (N88).
