GF82.10-P-3002RTY Low-Beams Actuation, Function

GF82.10-P-3002RTY Low-Beams Actuation, Function
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

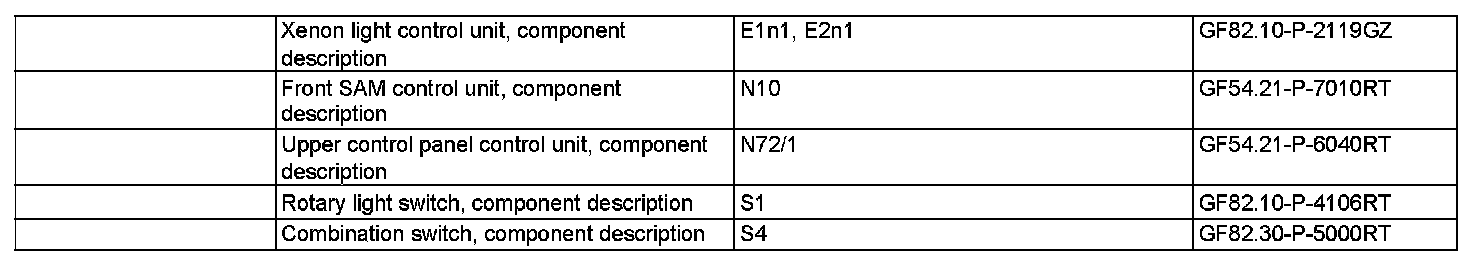

Component Identification:

Function requirements
^ C. 30 ON
^ Rotary light switch in Low beam position
^ Combination switch (S4) in center position (low beam switch position)

Function
The upper control panel control unit reads in the status of the rotary light switch via LIN and transmits this to the front SAM control unit via CAN-B.

The front SAM control unit actuates the xenon headlamp control units accordingly. These generate an ignition auxiliary voltage and pass this on to the bi-xenon lamps.
For their part, the bi-xenon lamps generate the ignition voltage required for igniting the xenon bulbs. When successfully ignited, the bi-xenon lamps are supplied with operating voltage by the xenon headlamp control units.
