Home >> Mercedes Benz Truck >> 2007 >> R 350 4MATIC (251.165) V6-3.5L (272.967) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Description and Operation >> GF91.60-P-0002-01RTE Supplemental Restraint System (SRS), Location of Components

GF91.60-P-0002-01RTE Supplemental Restraint System (SRS), Location of Components



GF91.60-P-0002-01RTE Supplemental Restraint System (SRS), Location Of Components
- except CODE (494) USA version
- except CODE (498) Japan version

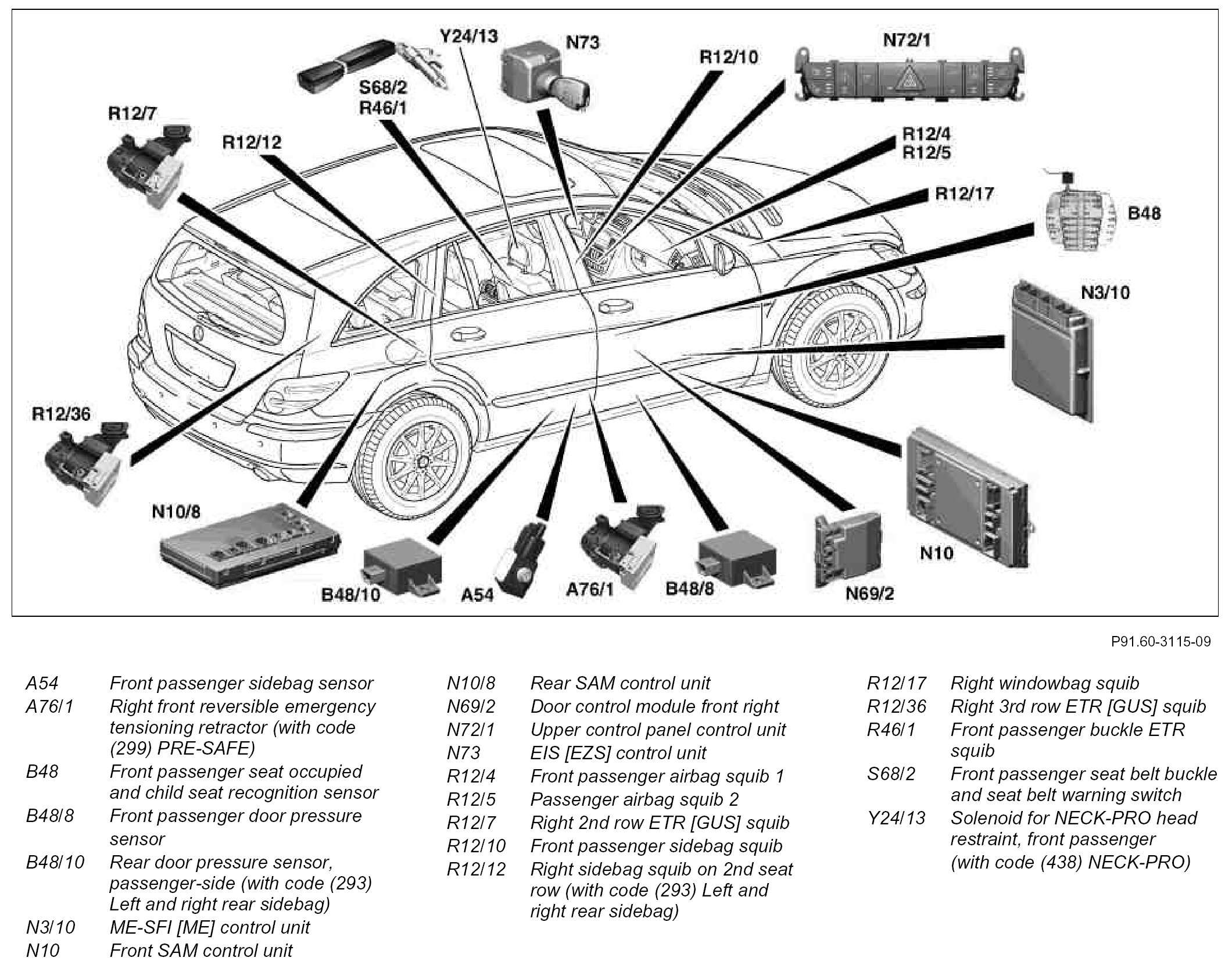

Component Identification:

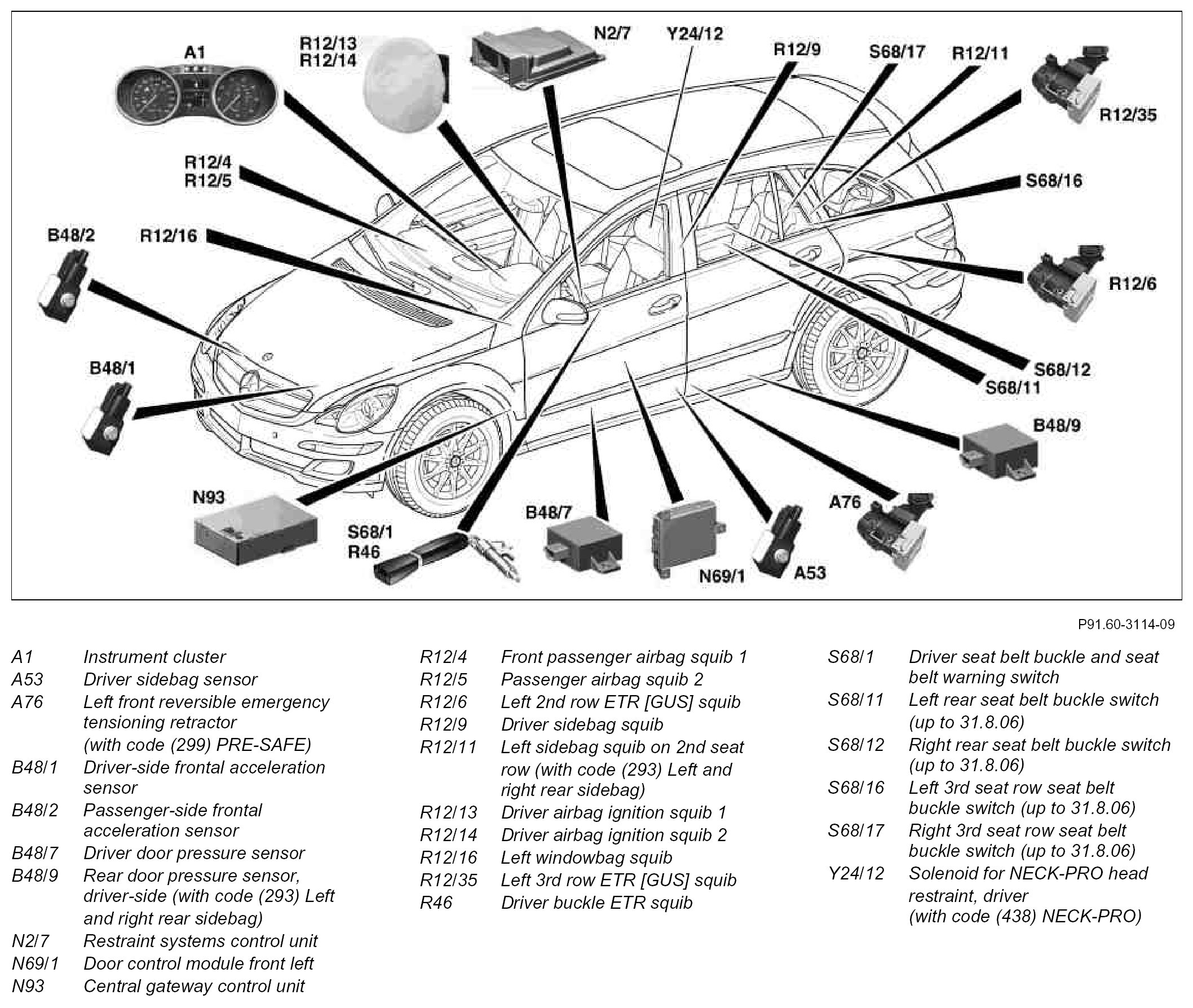

Component Identification:
