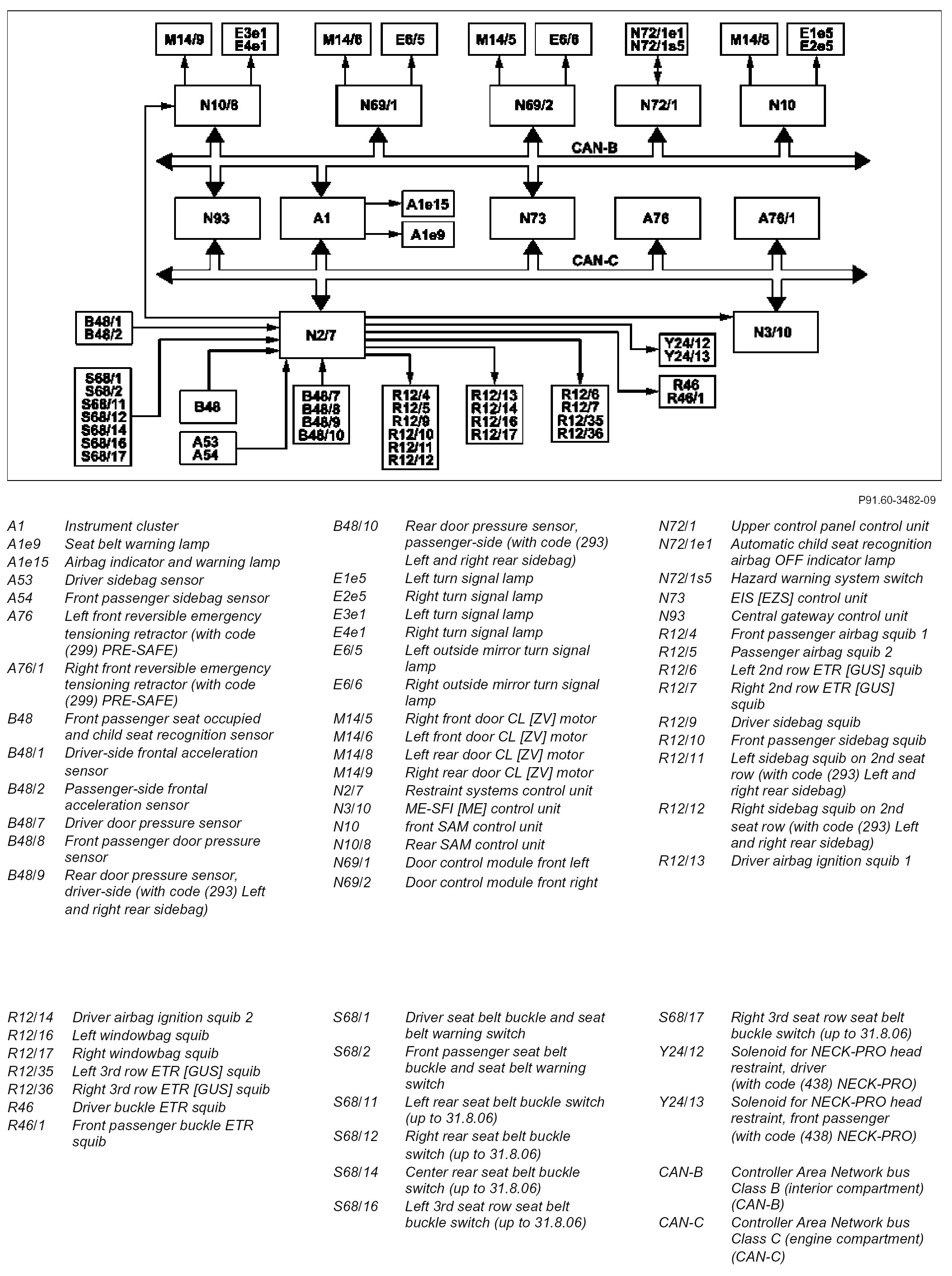

GF91.60-P-0002-03RTE Supplemental Restraint System (SRS), Block Diagram



GF91.60-P-0002-03RTE Supplemental Restraint System (SRS), Block Diagram
- except CODE (494) USA version
- except CODE (498) Japan version

Component Identification:
