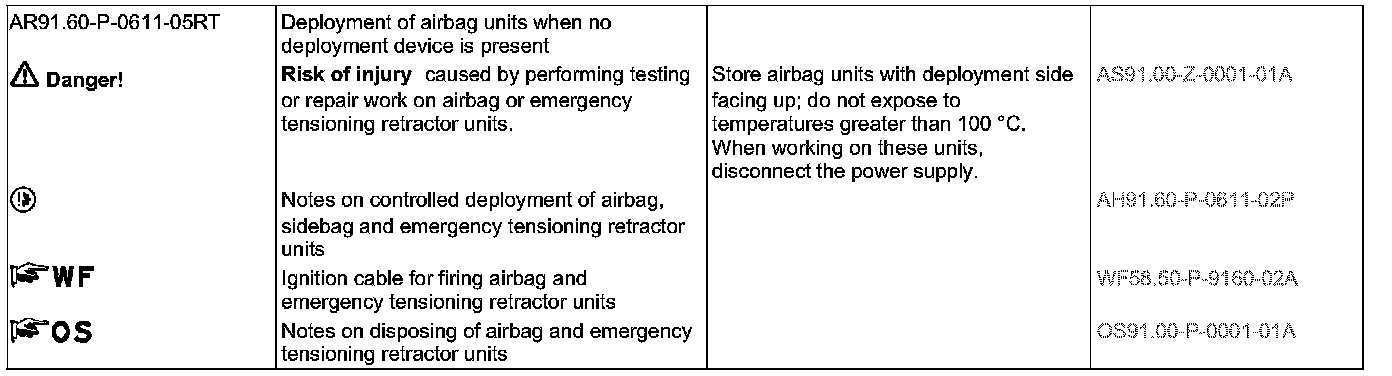

AR91.60-P-0611-05RT Deployment of Airbag Units When No Deployment Device Is Present

AR91.60-P-0611-05RT Deployment Of Airbag Units When No Deployment Device Is Present






Use of shop-made ignition cable

1. Fabricate ignition cable with a length of 10 m with pressure switch.
2. Insert 2-pin plug connector into the corresponding airbag unit.
3. Connect ignition cables to the battery.
4. Press both pressure switches simultaneously.
5. On airbag with two ignition squibs it is necessary to ignite both. To do this, repeat steps 2 through 4 after plugging the ignition cable into the second squib.

Observe safety distance of 10 m to prevent danger of injury.
