AP91.40-P-9150RT Check Seat Belts and Seat Belt Buckles For External Damage and Operation



AP91.40-P-9150RT Check Seat Belts And Seat Belt Buckles For External Damage And Operation

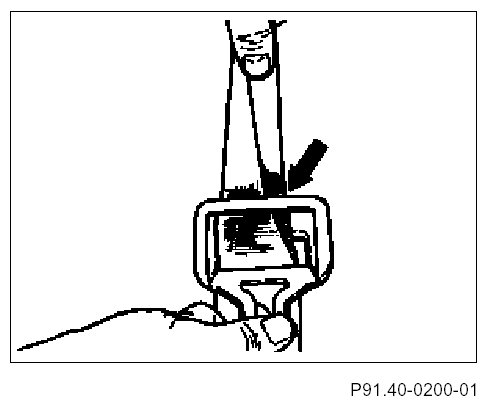

Component Identification:

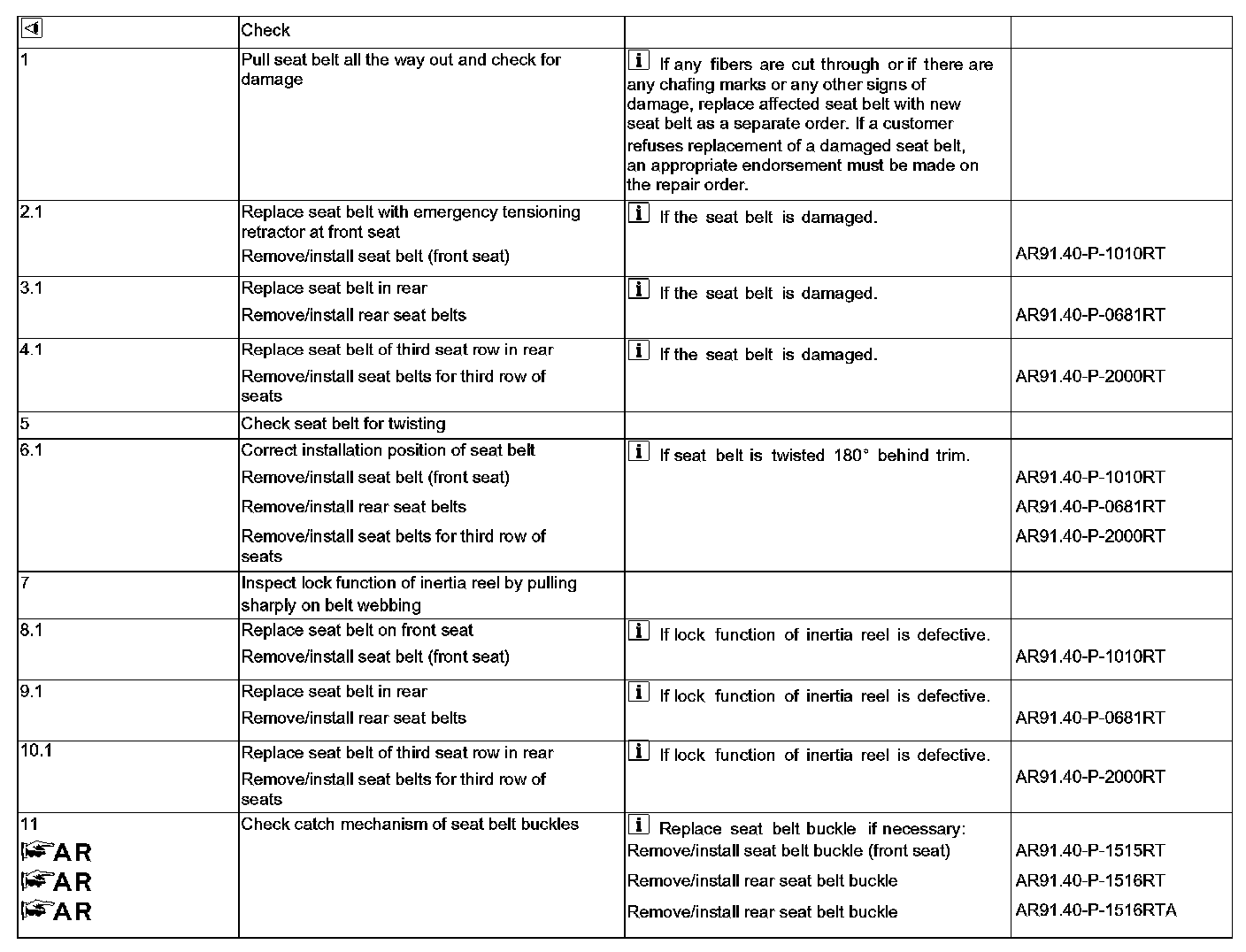

Steps 1 - 11:
