R 350 4MATIC (251.165) V6-3.5L (272.967)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
BE40.20-P-1000-10J Rear Axle Toe-In
BE40.20-P-1000-10J Rear Axle Toe-In
BE40.20-P-1000-10J Rear axle toe-in

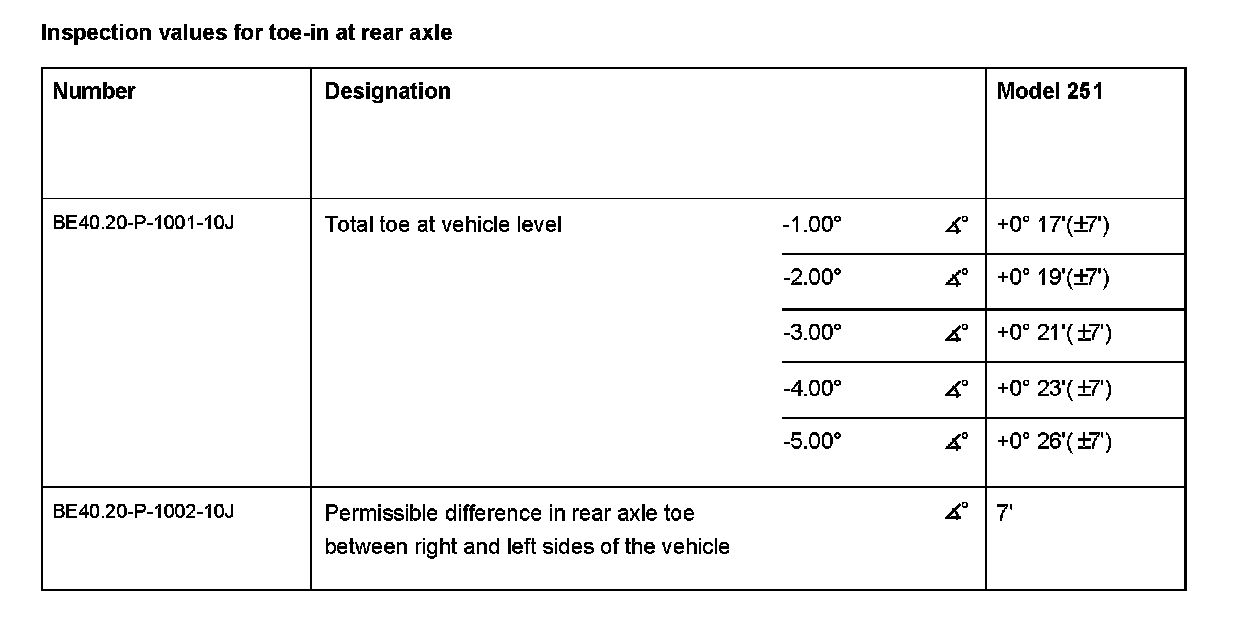

Inspection Values For Toe-in At Rear Axle:
