GF27.10-P-0001-02RT Automatic Transmission (AT), Driver Information



GF27.10-P-0001-02RT Automatic transmission (AT), driver information
- TRANSMISSION 722.9
- up to model year 08


Component Identification:

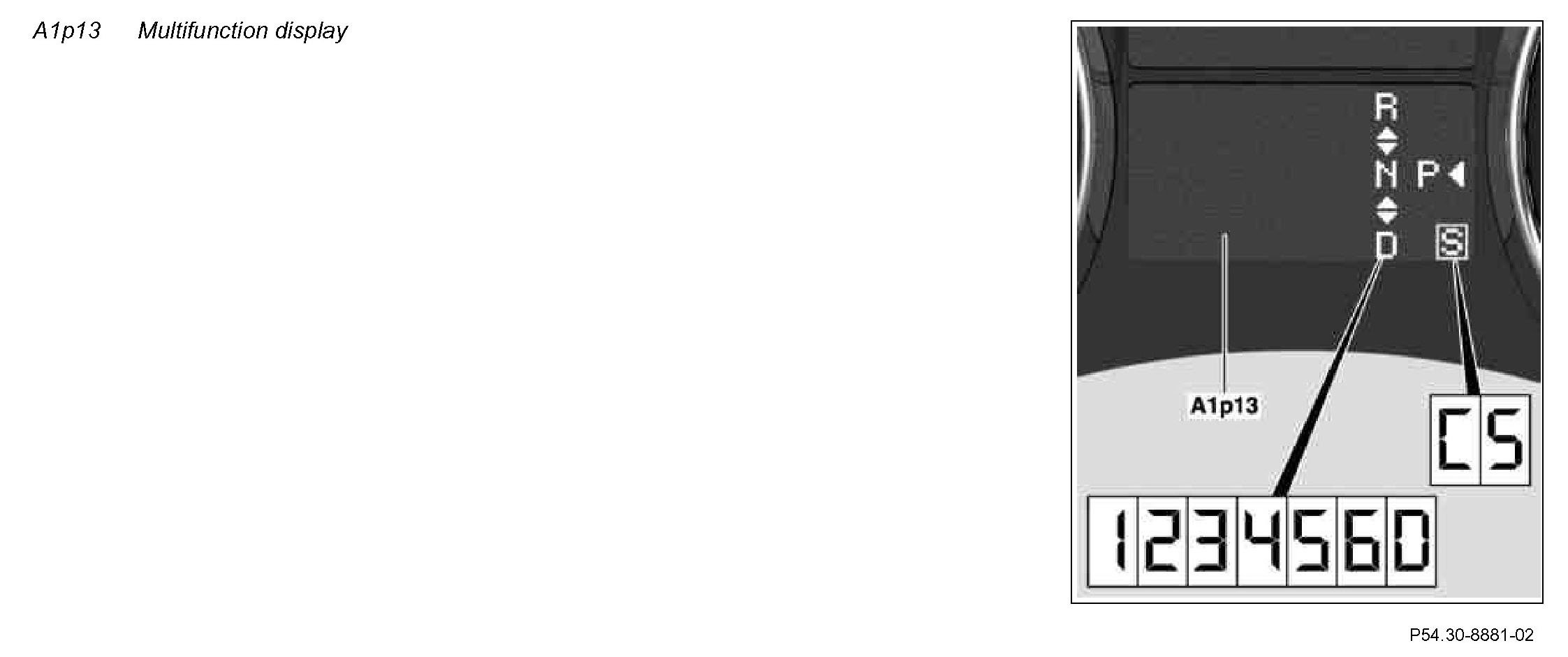

Gear indicator in instrument cluster (A1) in sport mode "S" and in comfort mode "C"
It shows the driver the currently selected shift range "1", "2", "3", "4", "5", "6" or the gear selector switch position "D", "R", "N" (neutral) or "P" (park).

Transmission mode display in instrument cluster
It shows the driver the program selection "S" (sport program) or "C" (comfort program) performed at the transmission modes switch (N72/1s32).

The arrows in the gear indicator show the driver which permissible gear selector switch position he can change to.

The decisive factor here is whether the speed, at which the vehicle is moving, is under or above the speed threshold of 5 km/h.
