GF00.19-P-2000-02MAA Location and Assignment of Ground Points, Engine Compartment, Right



GF00.19-P-2000-02MAA Location And Assignment Of Ground Points, Engine Compartment, Right

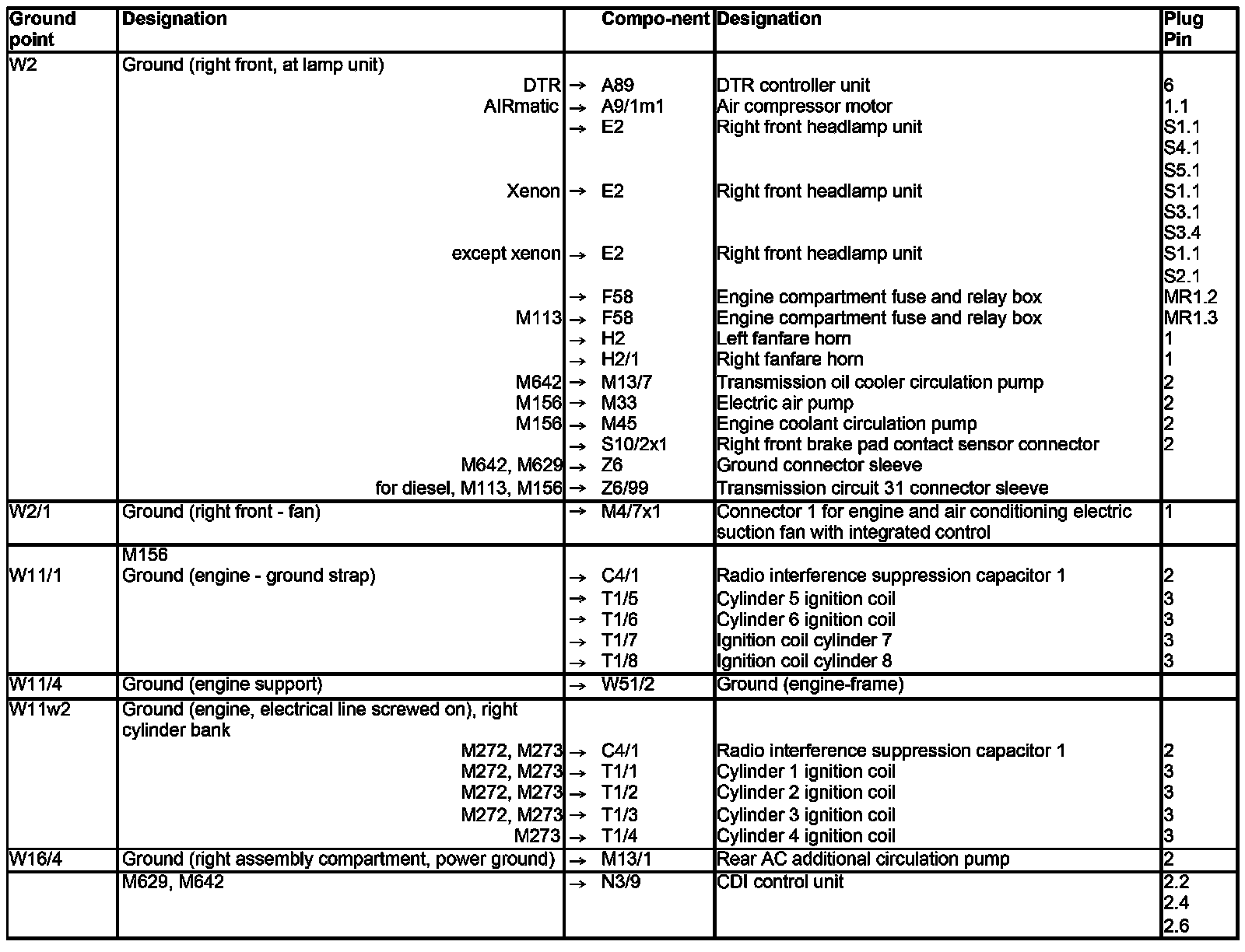

Part 1:





Part 2:
