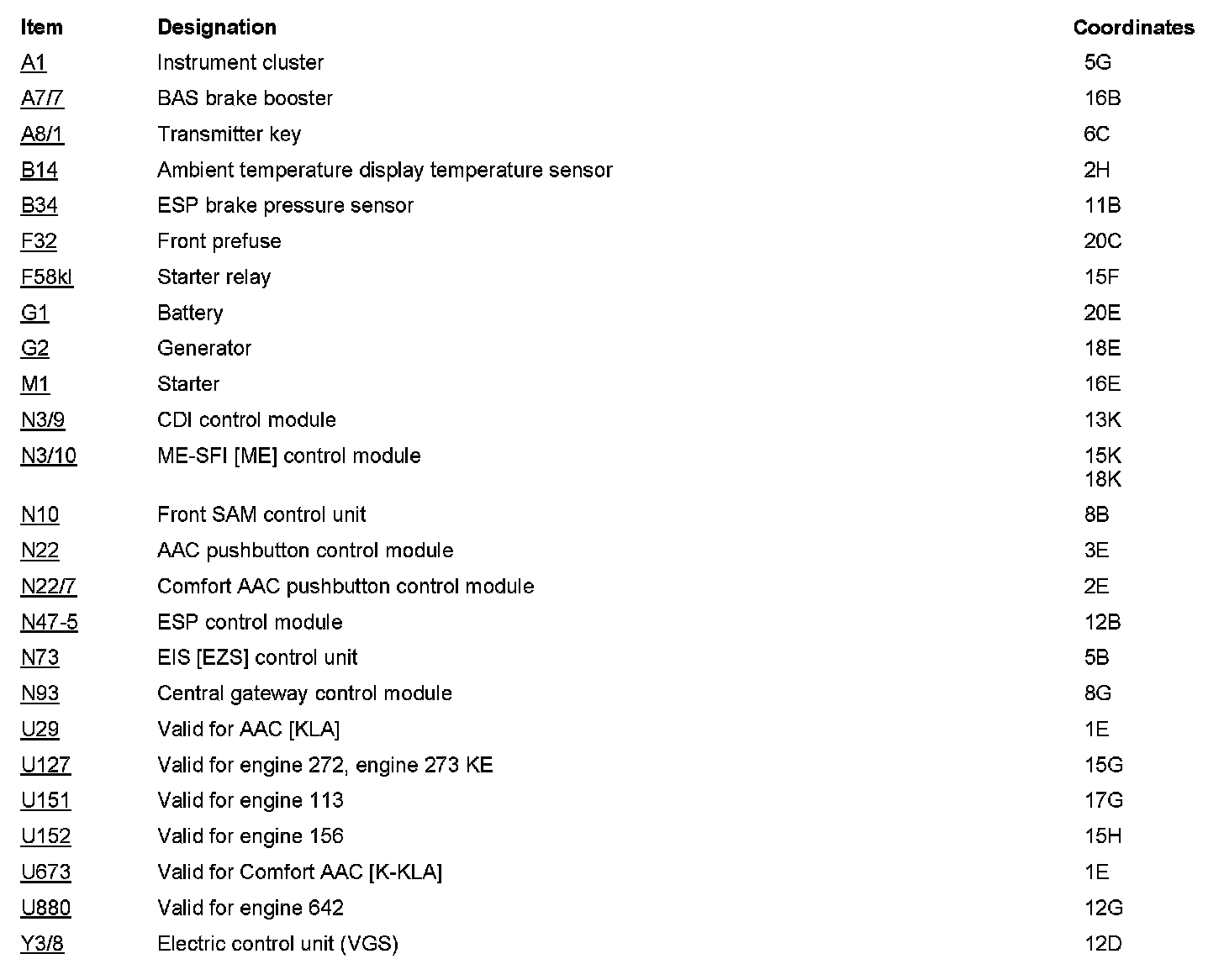

PE15.00-U-2050MAA Electrical Function Diagram For Starter, Alternator, Battery

PE15.00-U-2050MAA Electrical Function Diagram For Starter, Alternator, Battery















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
