Interior - Front Door Panel Trim Moulding Noises

ALUMINUM DOOR TRIM STRIP MAKES NOISES

Topic Number LI72.10-P-047127

Version 1

Design Group 72.10 Front door

Date 07-02-2009

Validity MODEL series 164 with code 739

Reason for change

Reason for block

Complaint:

Aluminum trim strip on door paneling lining makes noises

Cause:

Relative movements between the trim strip and the door panel.

Remedy:

1. Remove trim strip on door lining of front door.

2. Cut slide tape to a length of 450 mm.

3. Cut a 7 mm wide strip from the slide tape.

4. Stick the slide tape (7 mm) on the back of the trim strip on the trim material as shown in Figure 2 (starting 15 mm from the side edge, see Figure 1). The slide tape must be attached flushed with the inside edge.

5. Press down the adhesive tape beyond the first radius. The adhesive tape must not protrude into the radius on the visible side!

6. Reinstall trim strip.





Attachments

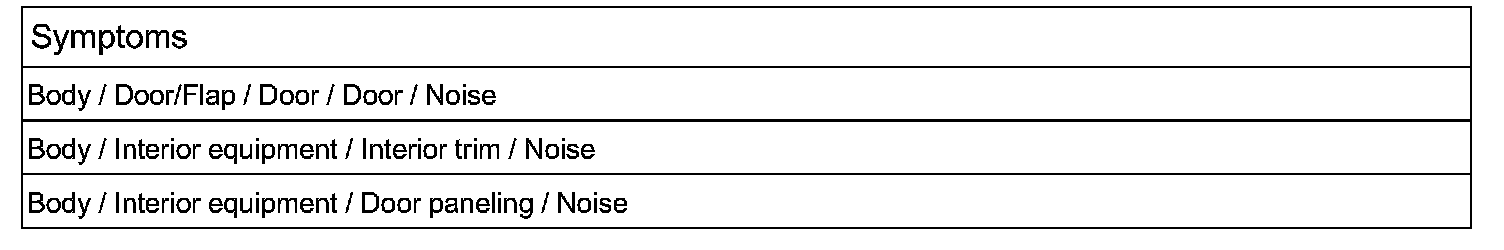

Symptoms





Parts





WIS-References

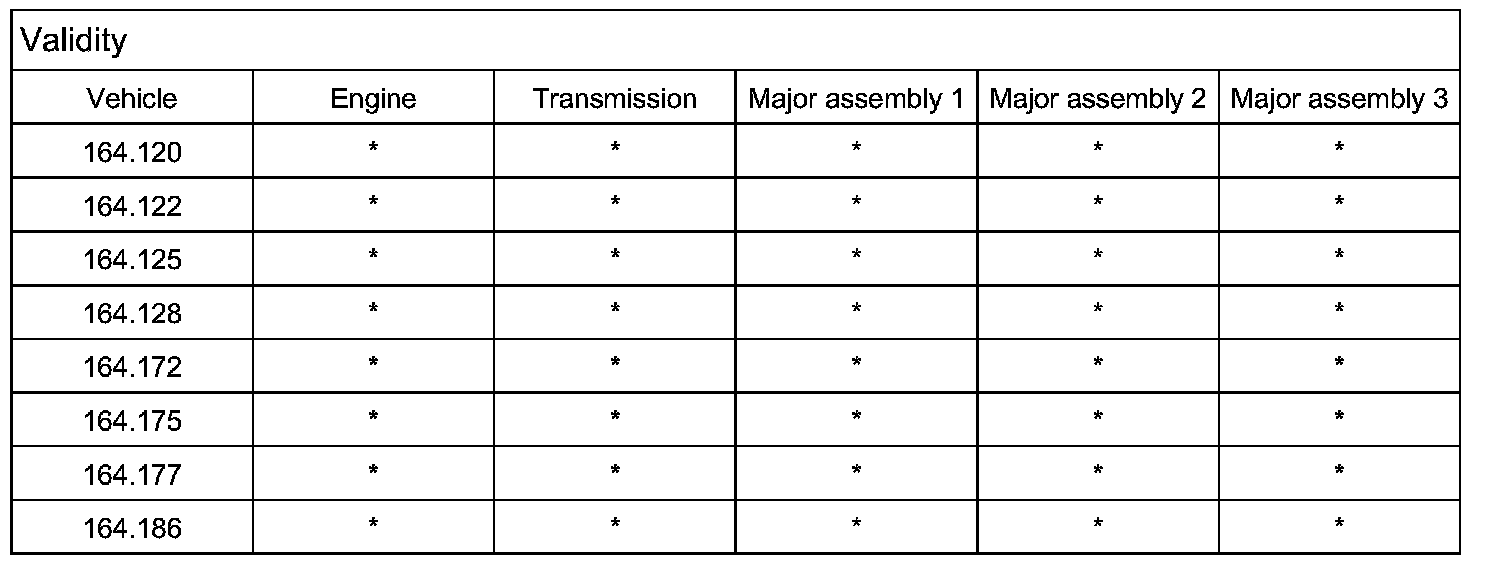

Validity

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for the repair. This information has been generated on July 2, 2009. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table above.

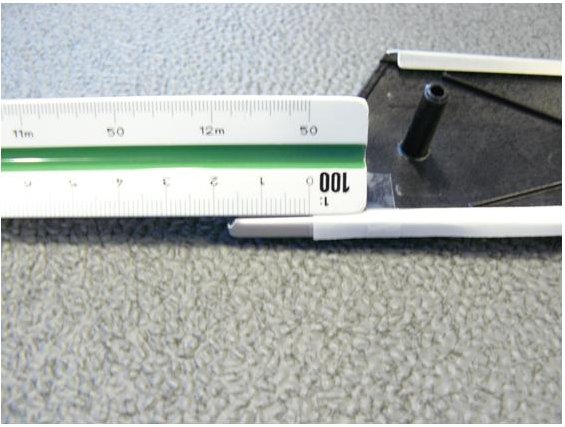

Attachment - Starting point for slide tape.

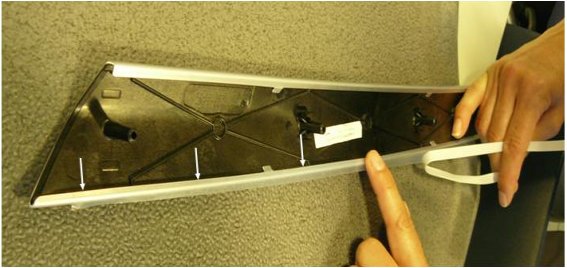

Attachment - Attaching the slide tape to the trim strip.
