Steering - Unequal Side To Side Steering Effort

UNEVEN STEERING FORCES WHEN STEERING FROM LOCK TO LOCK (PRESSURE POINT)

Topic Number LI46.10-P-047231

Version 1

Design Group 46.10 Steering wheel, casing tube, steering shaft, steering lock

Date 07-07-2009

Validity MODEL 164/251

Reason for change

Reason for block

Complaint:

Uneven steering forces steering from lock to lock. Increased steering forces in certain positions. Approximately every 90 degrees a pressure point can be felt which must be overcome by increased force on the steering wheel.

Cause:

Universal joint in steering coupling, (steer coupling) has excessive resistance. (see Figure 1).

Remedy:

Replace steering coupling (steer coupling).





Symptoms

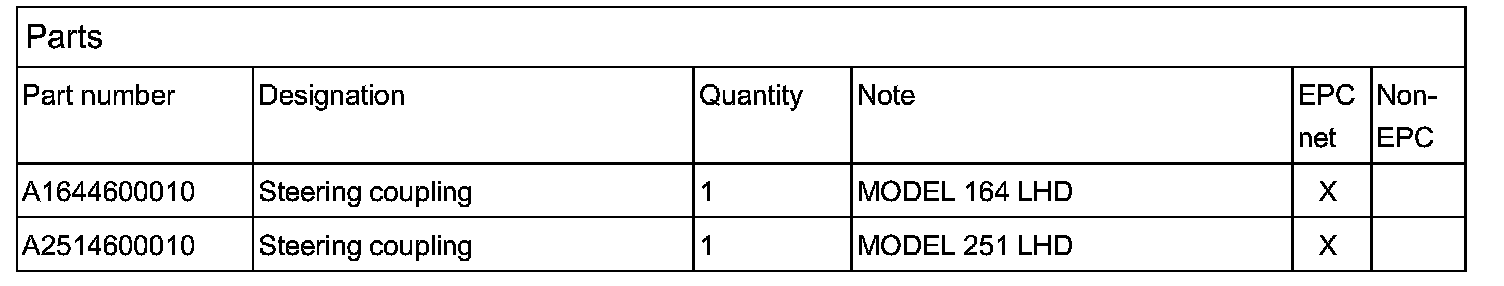

Parts

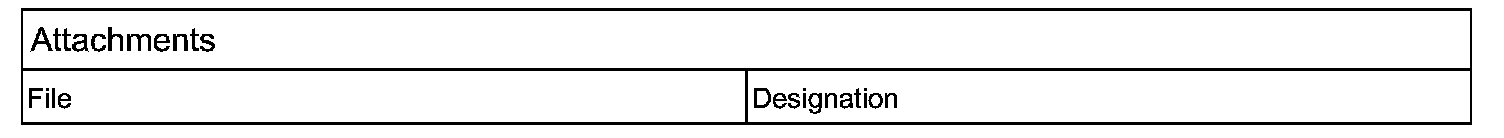

Attachments

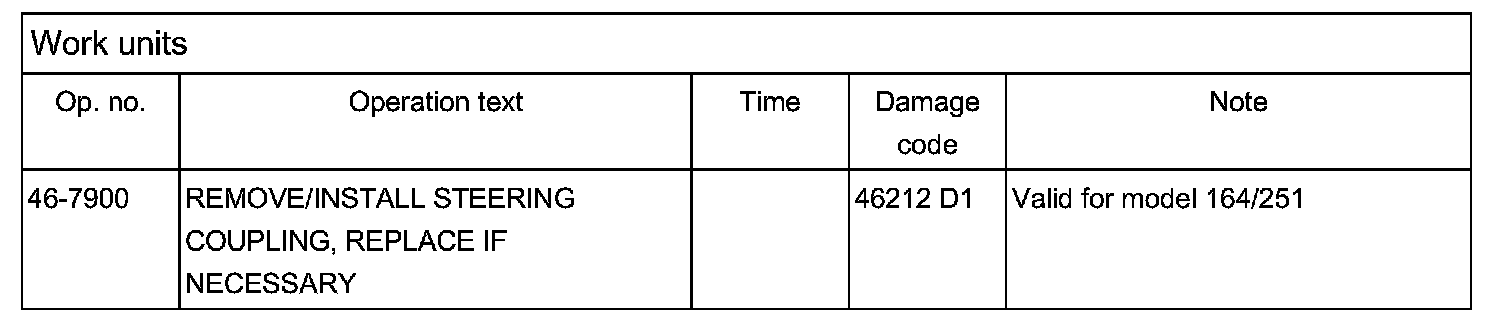

Work units





WIS-References





Validity





Attachment - Figure 1 Steering Coupling (steer coupling)
