[2] Check component M16/6 (Throttle valve actuator).: Open circuit in wiring / Short circuit to ground

[2] Check component M16/6 (Throttle valve actuator).: Open circuit in wiring / Short circuit to ground


Possible cause:

- M16/6 (Throttle valve actuator)
Affected functions:

- Engine diagnosis

-------------------------------------------------

Test 1: Check component M16/6 (Throttle valve actuator).

1. Check component M16/6 (Throttle valve actuator).

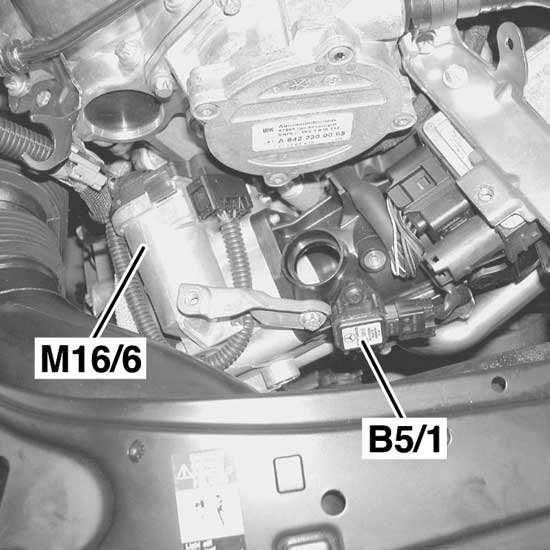

Figure legend

- M16/6 (Throttle valve actuator)
- B5/1 (Charge pressure sensor)
Possible cause and remedy

- Inspect wiring and plug connections between M16/6 (Throttle valve actuator) and control unit N3/9 (CDI control unit) for corrosion, loose contacts and damage.
- Test wiring and plug connections between control module N3/9 (CDI control unit) and M16/6 (Throttle valve actuator) for Short circuit and Open circuit, repair or replace if necessary.
End of test
