GF83.10-P-2000RTK Ventilation System, Function

GF83.10-P-2000RTK Ventilation System, Function
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner







Function

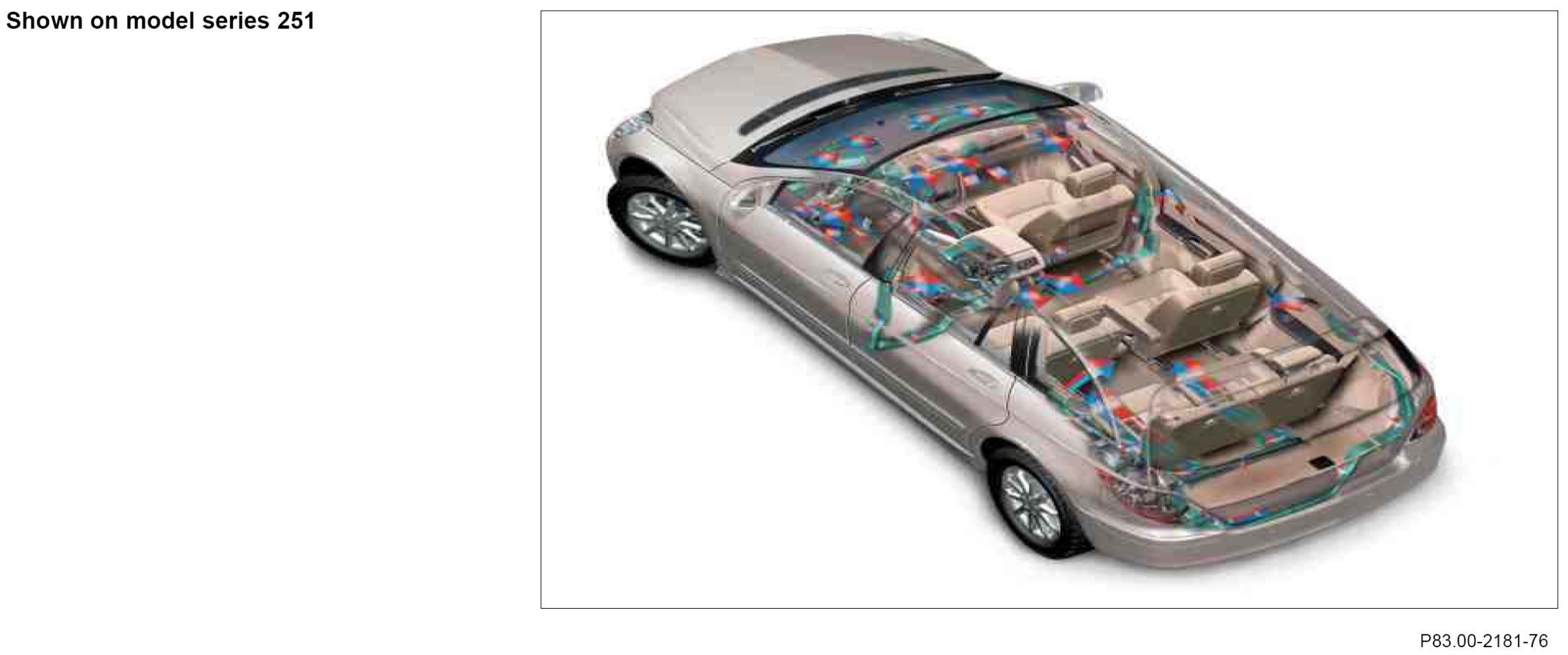

The ventilation system prevents windows from misting up, provides oxygen to the occupants and ensures that uniform and pleasant temperatures in the interior are reached quickly.
During normal operation, when the vehicle is stationary or to increase the air volume, ventilation is carried out with the assistance of the front blower, the rear blower and, in the case of additional rear systems, with a well "rear blower"

Fresh air is drawn into the air conditioner housing via the air inlet in the engine hood and via the fresh/recirculated air flap (fresh air position).
Depending on the preselection at the comfort AAC [KLA] control and operating unit (N22/7), the air is directed through air ducts and via air outlets into the vehicle interior. In the air recirculation mode, air is drawn out of the vehicle interior through the fresh air and air recirculation flaps (recirculated air position) and blown into the air conditioner housing.

In order to prevent the windows from fogging up, the defroster flaps and the air recirculation flap are closed and the footwell flaps opened completely 2 min after switching off the ignition. After starting the engine, the defroster flaps and footwell flaps remain in this position for 30 s. The air recirculation flap is immediately adjustable.
