Compass: Service and Repair

AR82.85-P-7371RT Remove/Install Electronic Compass
- Only vehicles without navigation system

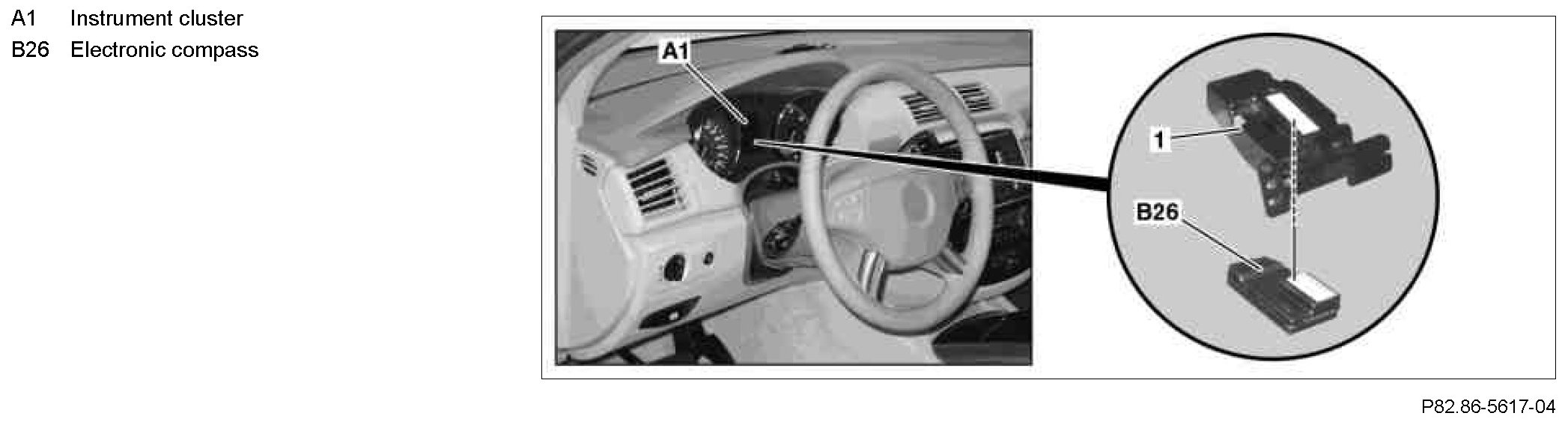

Component Identification:

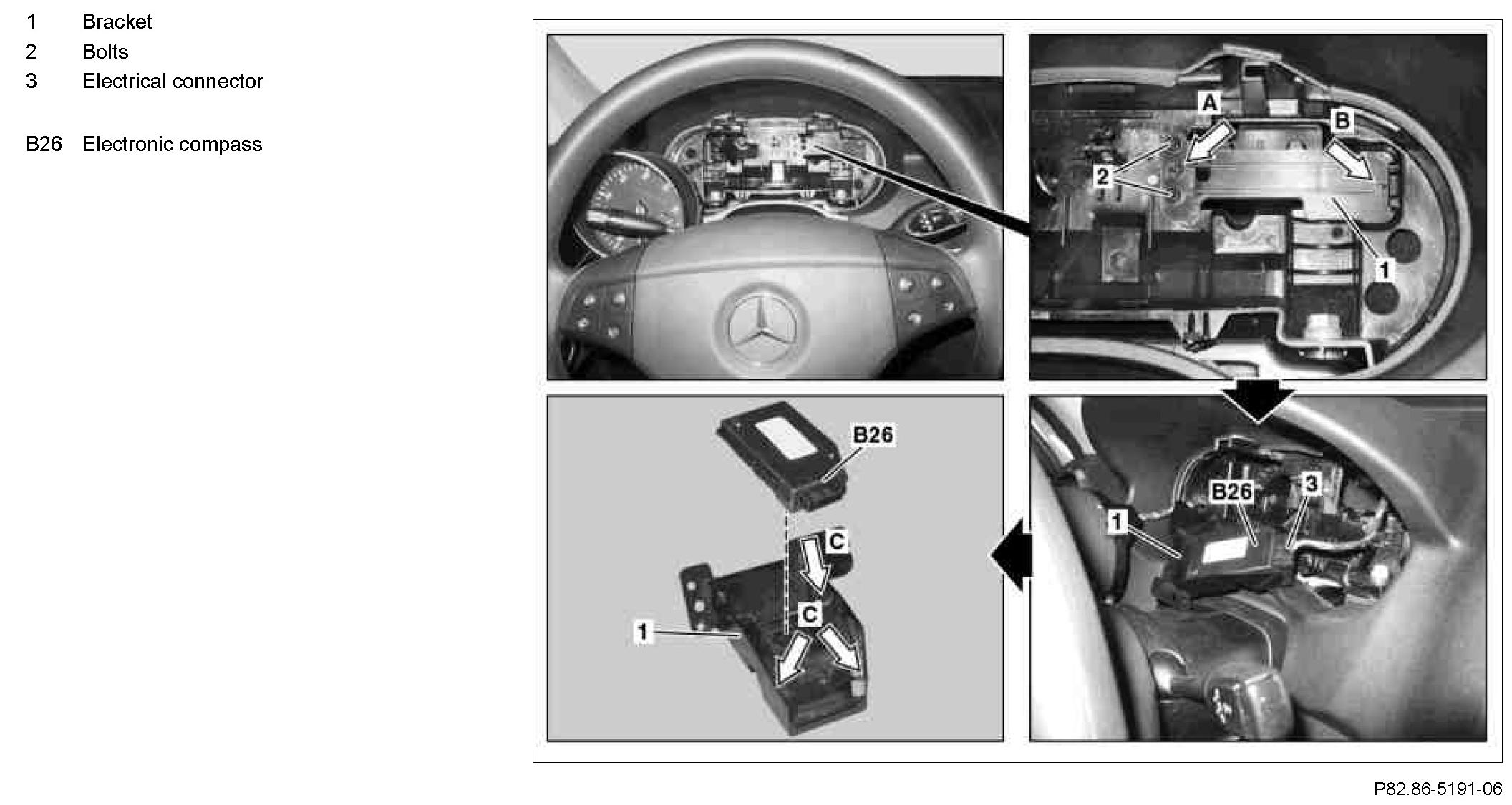

Component Identification:

Modification Notes:

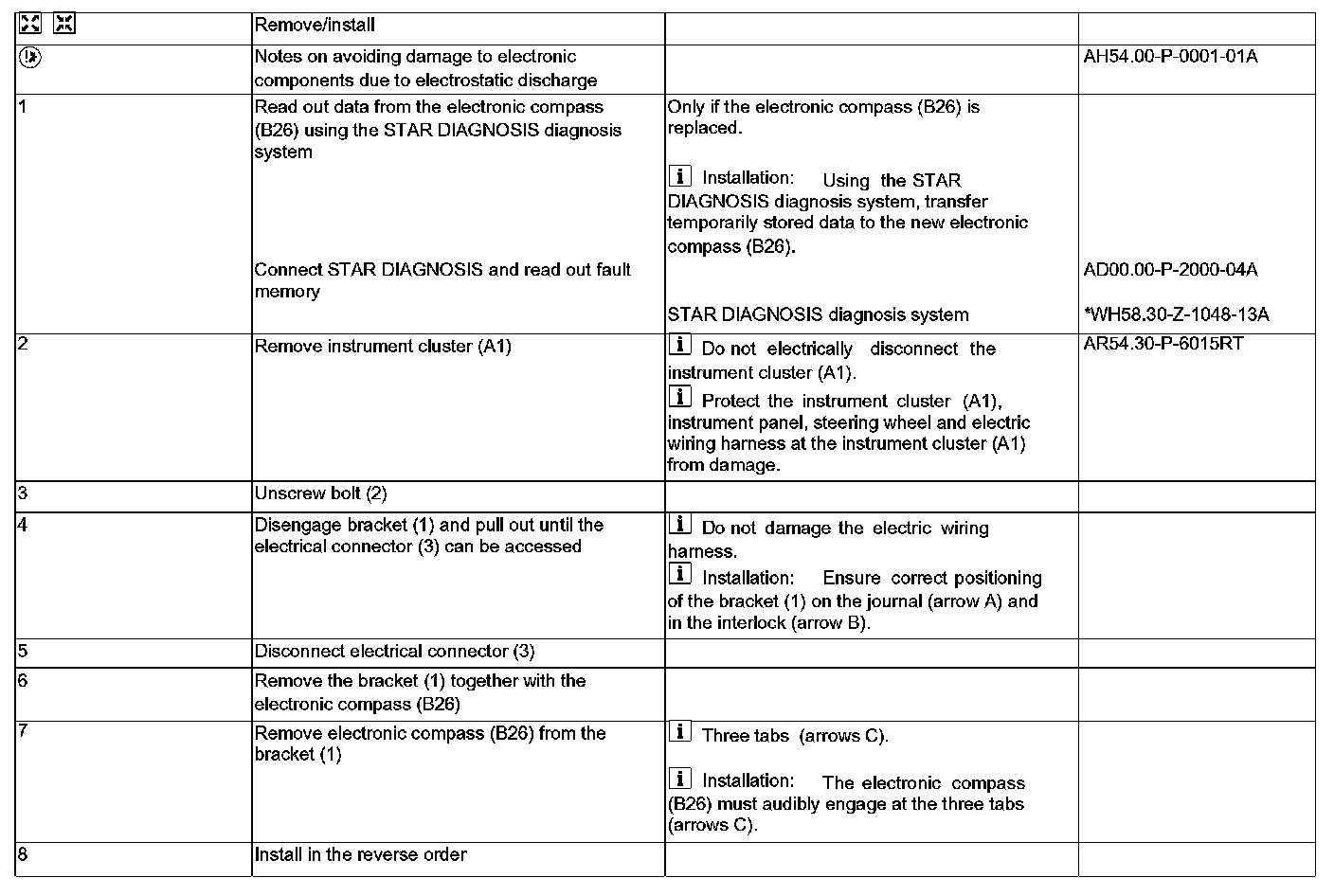

Steps 1 - 8:

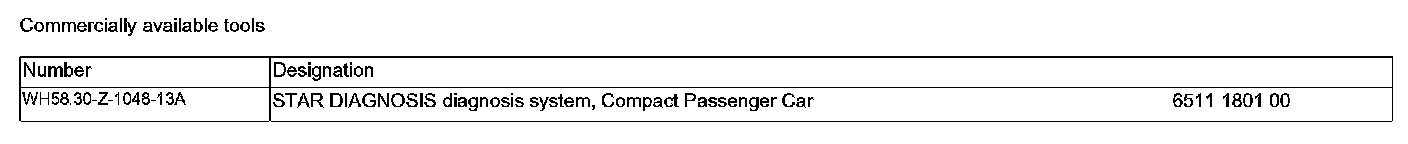

Commercially Available Tools:
