GF54.50-P-2008RT Mileage, Function

GF54.50-P-2008RT Mileage, Function
- up to model year 08

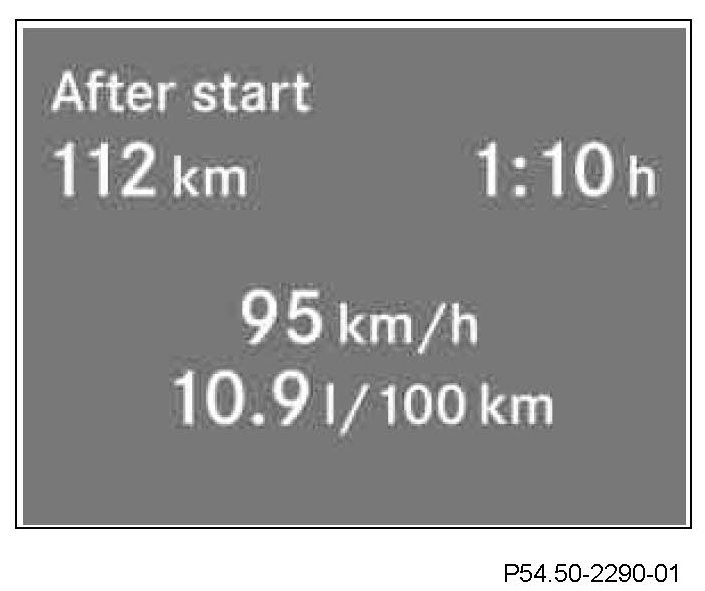

Distance "Since start" (short-distance memory), function
Kilometers driven since the last start.

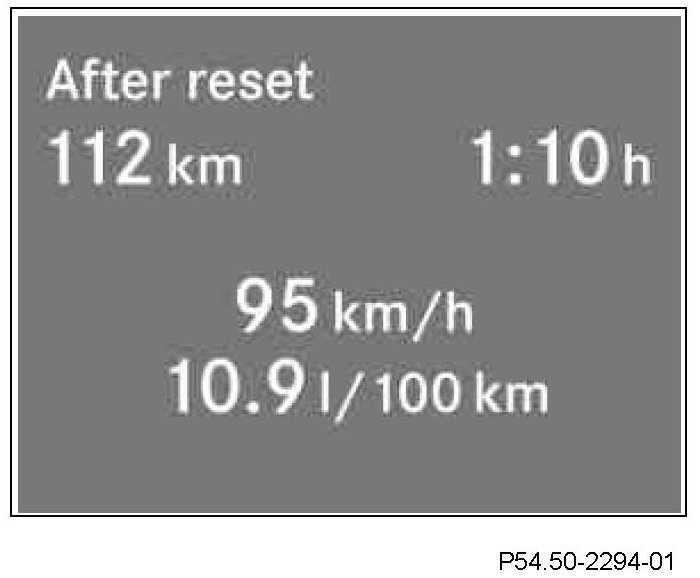

Distance "Since reset" (long-distance memory), function
Distance driven since last reset.

The" since start" or" since reset" display screen for the mileage can be activated via the system selection button (S110s3) and scroll forward/back button (S110s1) of the multifunction steering wheel.

The four wheel speed signals are evaluated for the mileages. They reach the instrument cluster in the form of a message from the engine compartment CAN message from the ESP control unit (N47-5)A1. The mileage is counted at the same time as the odometer function of the instrument cluster.

If the display of trip time or mileage exceeds the maximum display value (40959 miles (65535 km) or 99:59 hours), then the trip time and mileage of the respective memory is reset automatically. This preserves the relationship between trip time and mileage.
