Center Mounted Brake Lamp: Service and Repair
AR82.10-P-5375RT Remove/Install Center High-mounted Stop Lamp

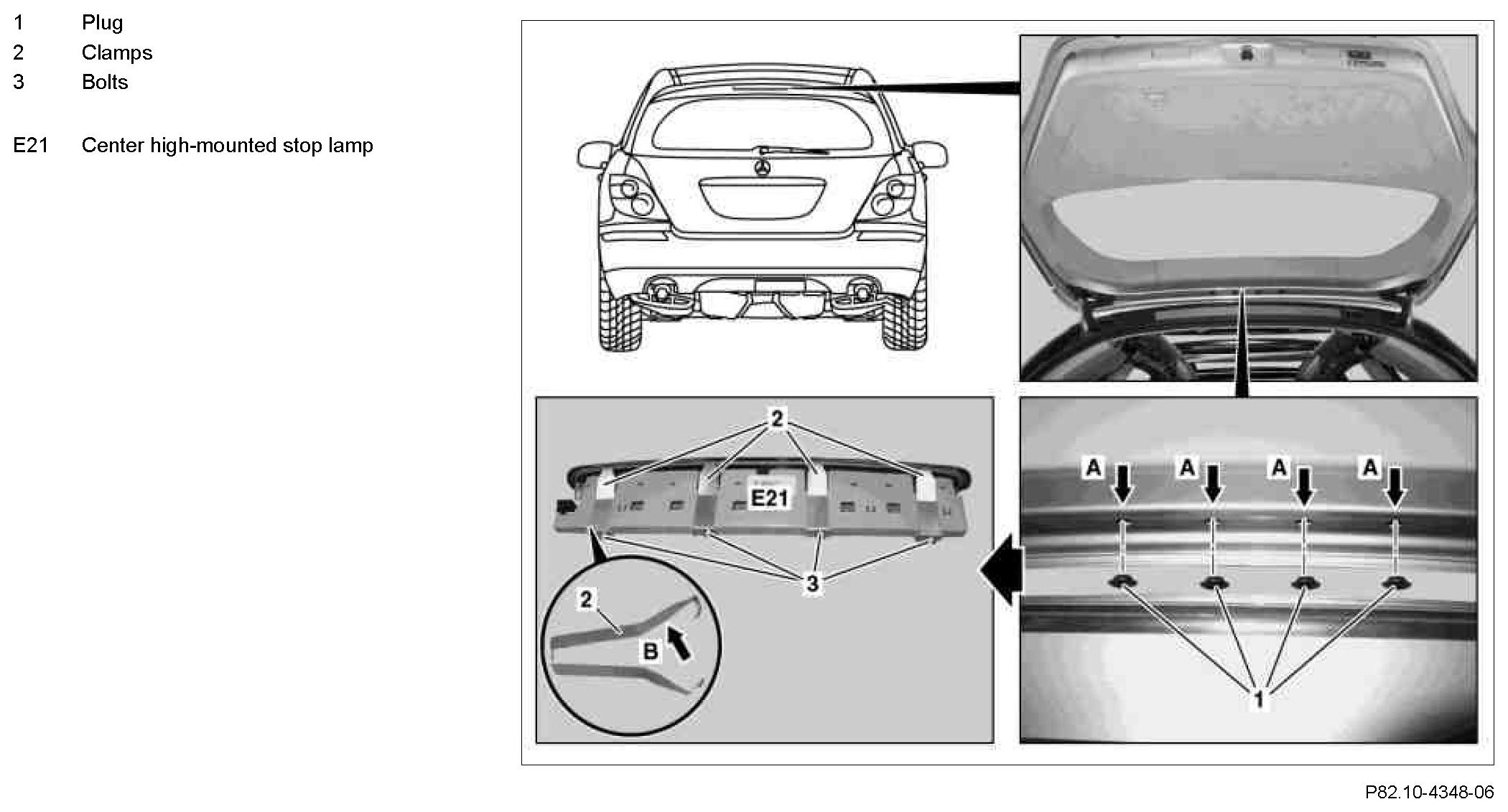

Component Identification:

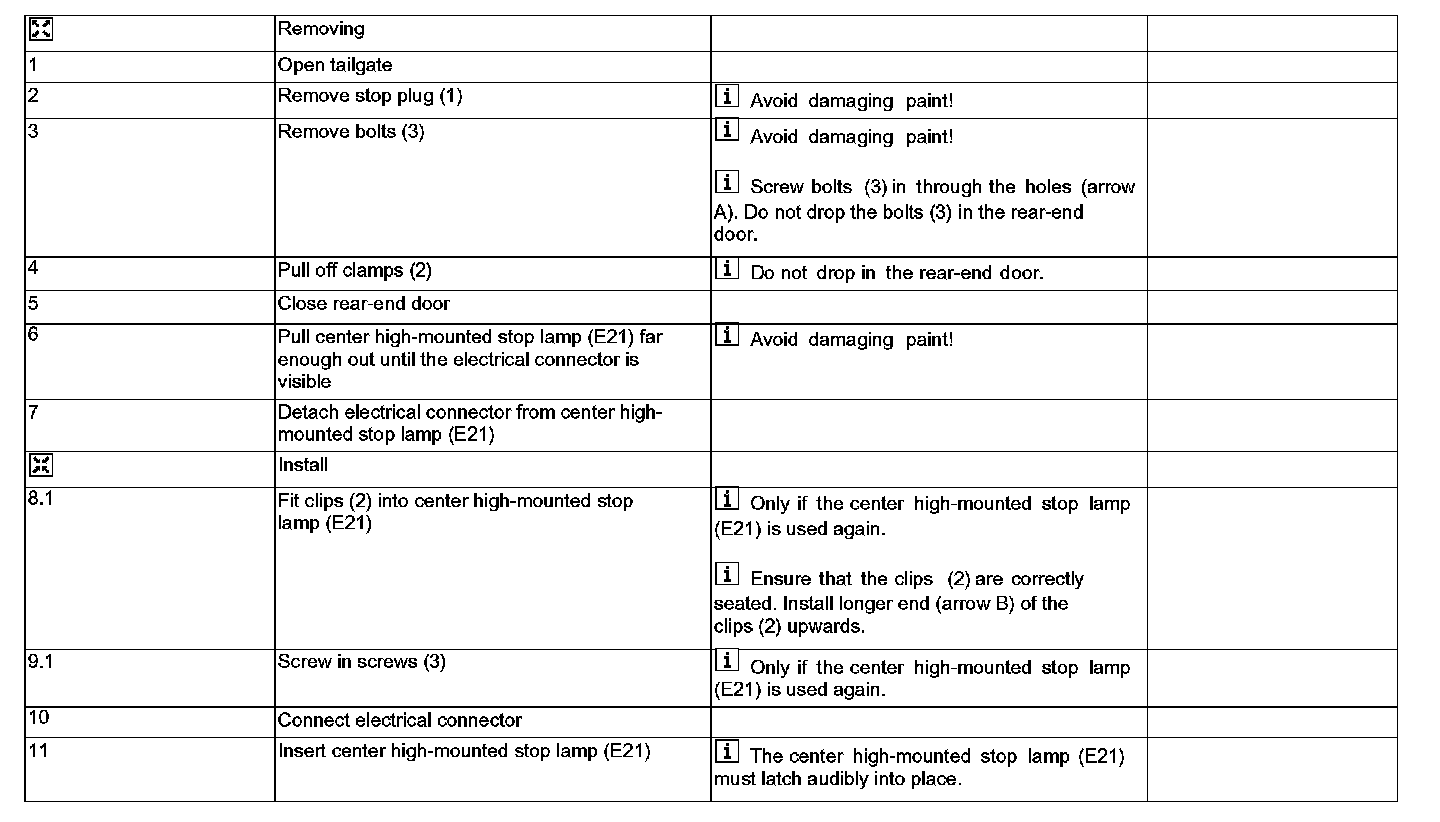

Steps 1 - 11:
