Body - Power Mirror Folding Feature Inoperative

Date: November 20, 2008

Order No.: T-B-88.70/62a

Supersedes: T-B-88.70/62 dated March 26, 2007

Group: 88





Revision History

SUBJECT:
Model 164.122/125/172/175/177/186/822/825/871/886

Model 251.122/125/156/165/175/177

Equipped with SA Code 500 (Electric Folding Outside Mirrors)

Electric Folding for the Exterior Mirrors Not Functioning

If you receive customer reports in the above model vehicles of the electric folding feature for the exterior mirrors not functioning, this may be due to the electrical connector for the mirror folding feature not being seated correctly in the mirror housing. To resolve, perform the following.

1. Remove exterior mirror. Refer to WIS document AR88.70-P-9000GZ.





2. Detach lock washer (Figure 1, 1).





3. Pull off plastic cap (Figure 1, 2).

4. Check connector (Figure 2) for proper seating. If necessary, reseat connector.

5. Reinstall plastic cap (Figure 1, 2).

6. Reinstall lock washer (Figure 1, 1).

7. Reinstall exterior mirror. Refer to WIS document AR88.70-P-9000GZ.

NOTE:

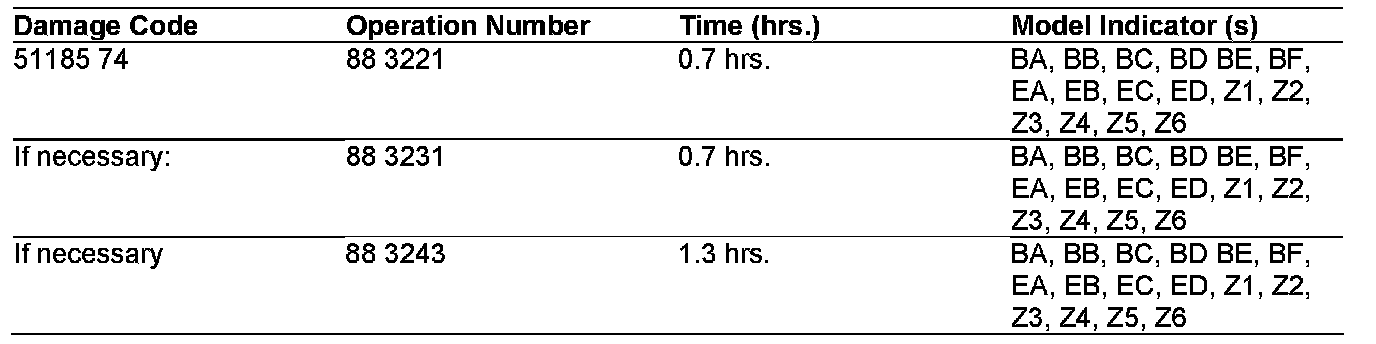

The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 20, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty

Operation: Outside mirror on left, R&R/replace (88-3221)
If necessary: Outside mirror on right, R&R/replace (88-3231)
If necessary: Outside mirrors (both), R&R/replace (88-3243)
