Campaign - Engine Coolant Line Inspection/Replacement: Overview

FILE:
SERVICE: GROUP 00 OF SERVICE INFORMATION BINDER
PARTS: GROUP I OF INFORMATION _ PARTS & ACCESSORIES BINDER

Campaign No. 2008070004, August 2008

Revision Date Purpose

A 08/27/08 Revision to parts information and Work Procedure

- 08/08/08 Initial release

TO: ALL MERCEDES-BENZ CENTERS

SUBJECT:
Model 251 with Diesel Engine OM 642, Model Years 2008 and 2009

Check Coolant Line, Replace if Necessary

This Service Campaign has been initiated because Daimler AG has determined that the coolant hose in the area of the fan shroud may work loose when driving on rough roads due to insufficient retention of the bracket. The dealer will fasten the hose with an additional cable tie at the next workshop visit. In addition, if the hose is found to be damaged it will be replaced.

Prior to performing this Service Campaign:

^ Please check VMI to determine if the vehicle is involved in the Campaign and if it has been previously repaired.

^ Please review the entire Service Campaign bulletin and follow the repair procedure exactly as described.

Please note that Recall and Service Campaigns do not expire and may also be performed on a vehicle with a vehicle status indicator.

Approximately 520 vehicles are affected.

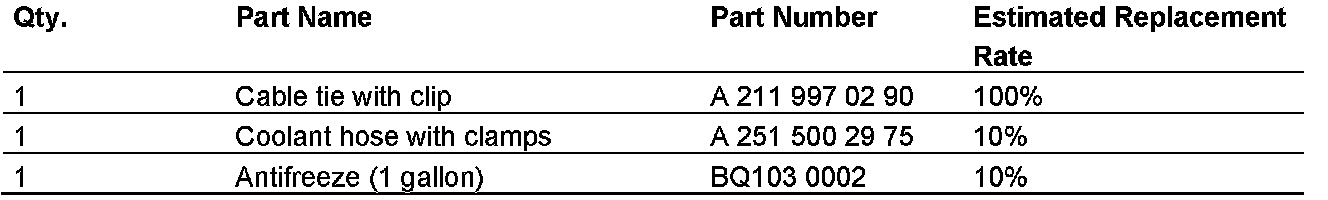

Primary Parts Information

Note:
^ Please be aware that only the part number(s) referenced in the Campaign Bulletin is/are approved for use to repair the vehicle. Repairs performed using any other part(s) will not have been performed in accordance with the campaign. Accordingly, warranty claims submitted with reference to an improper part number(s) will be denied.

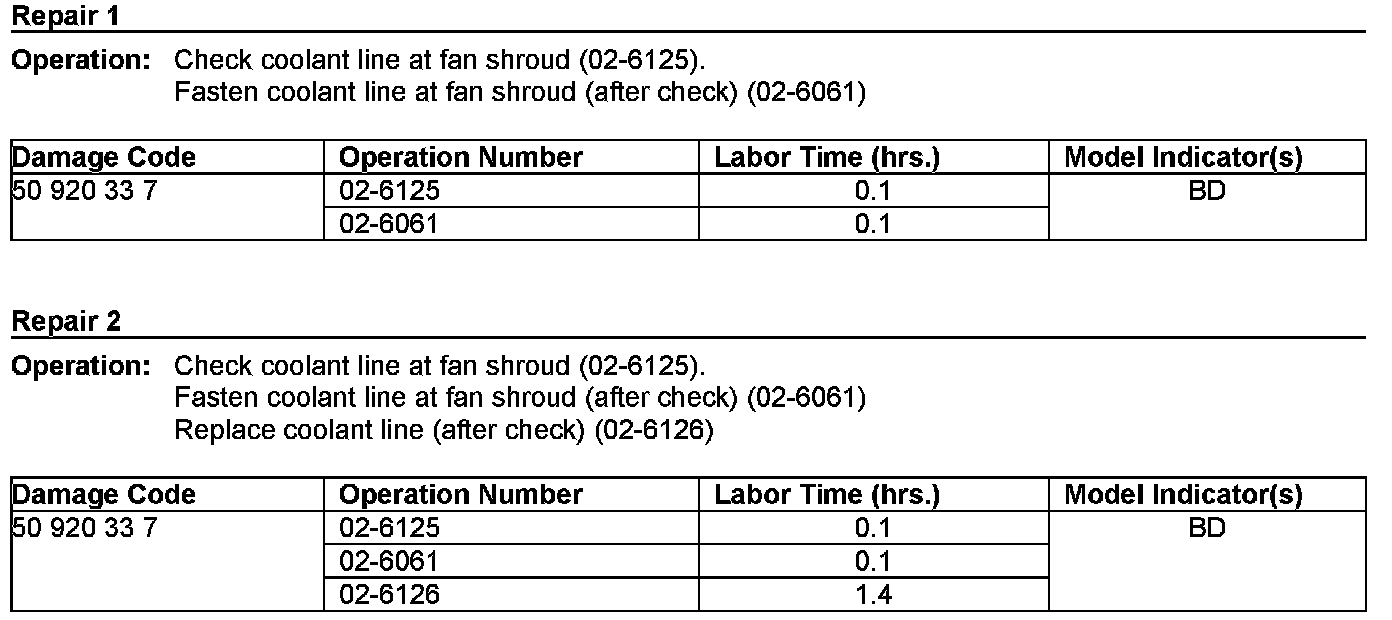

^ The following allowable labor operation should be used when submitting a warranty claim for this repair:





Warranty Information
