126A00

Component M55 (Intake port shutoff actuator motor) is faulty.


Possible cause:

- M55 (Intake port shutoff actuator motor)
Affected functions:

- Power generation

-------------------------------------------------

Test 1: Check component M55 (Inlet port shutoff motor).

1. Check component M55 (Inlet port shutoff motor).
Check component M55 (Inlet port shutoff motor).

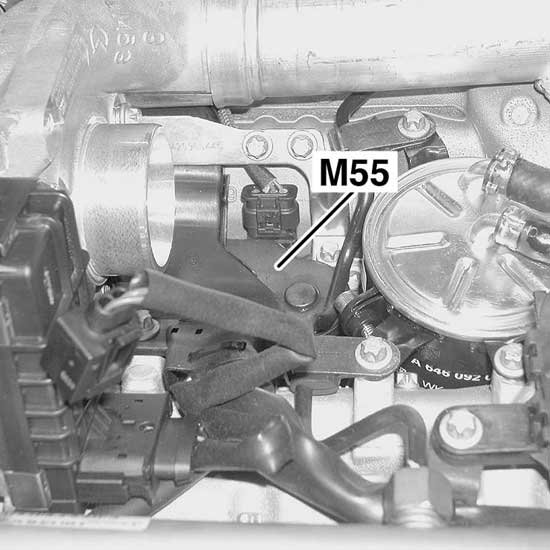

Figure legend

- M55 (Inlet port shutoff motor)
Procedure

- Check component M55 (Inlet port shutoff motor) for unobstructed movement by actuation.
Proceed to 'Actuation' with F2







Figure legend

- M55 (Inlet port shutoff motor)
Test prerequisite

- Switch on ignition.
Test sequence

- A noise can be heard coming from the actuator motor of the intake port shutoff when F3 (open) and F4 (close) are pressed.
Proceed to 'Actuation' with F2







Warning!Communication with ECU required.
