Access Cover: Service and Repair
AR01.10-P-2405GZB Remove/install engine cover

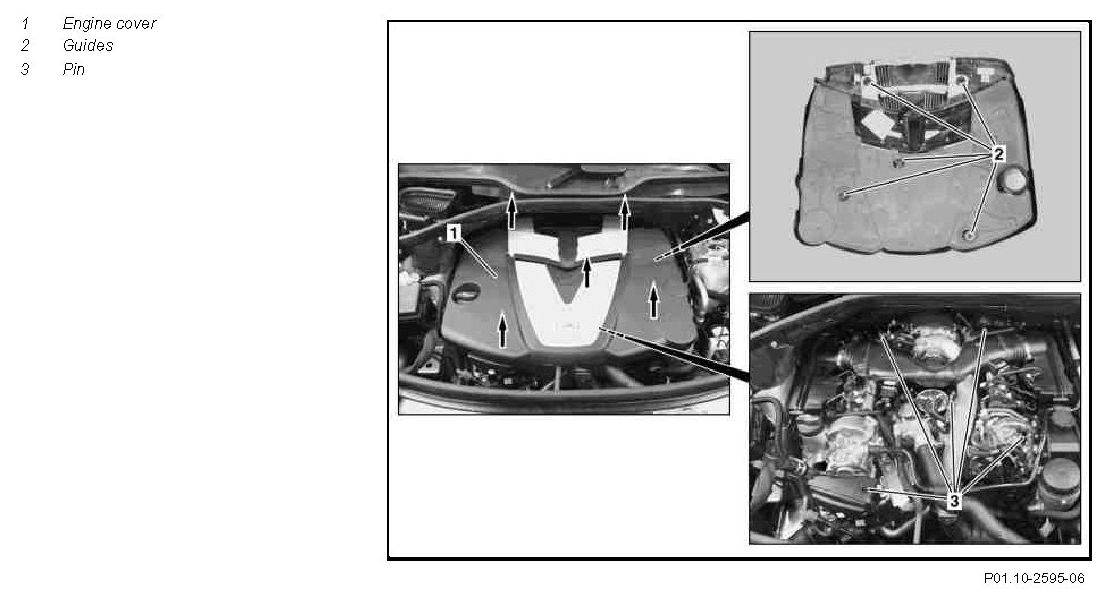

Component Identification:

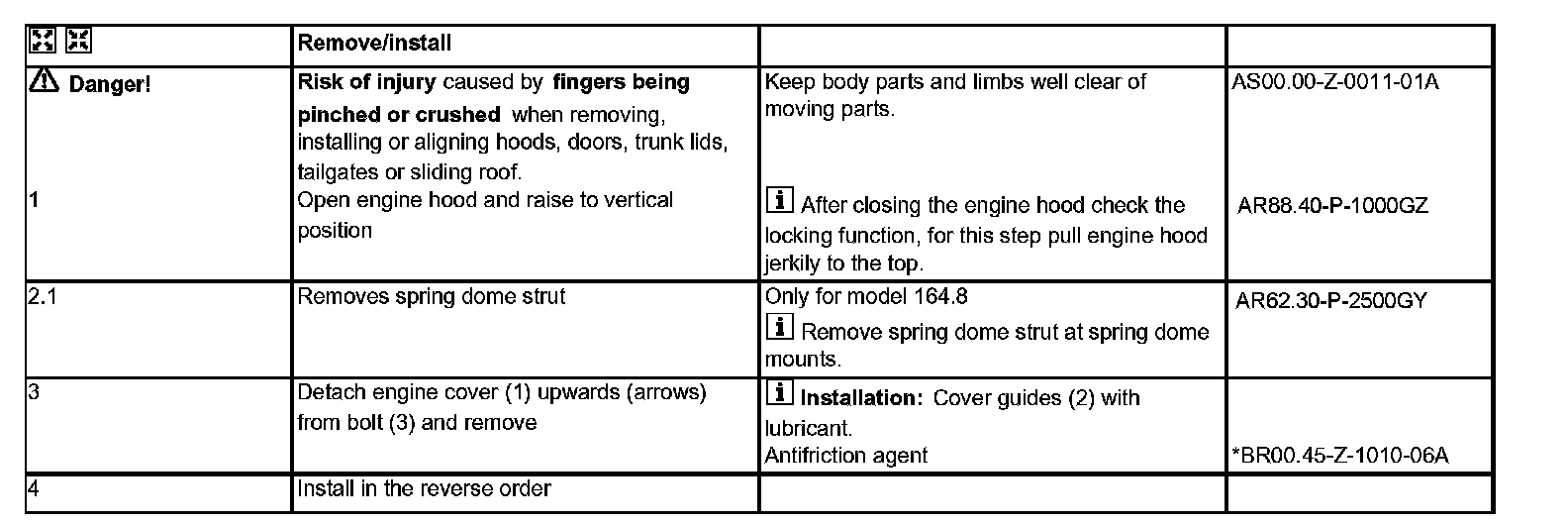

Remove/install Steps 1-4:
Repair materials:
