Radiator Support: Service and Repair

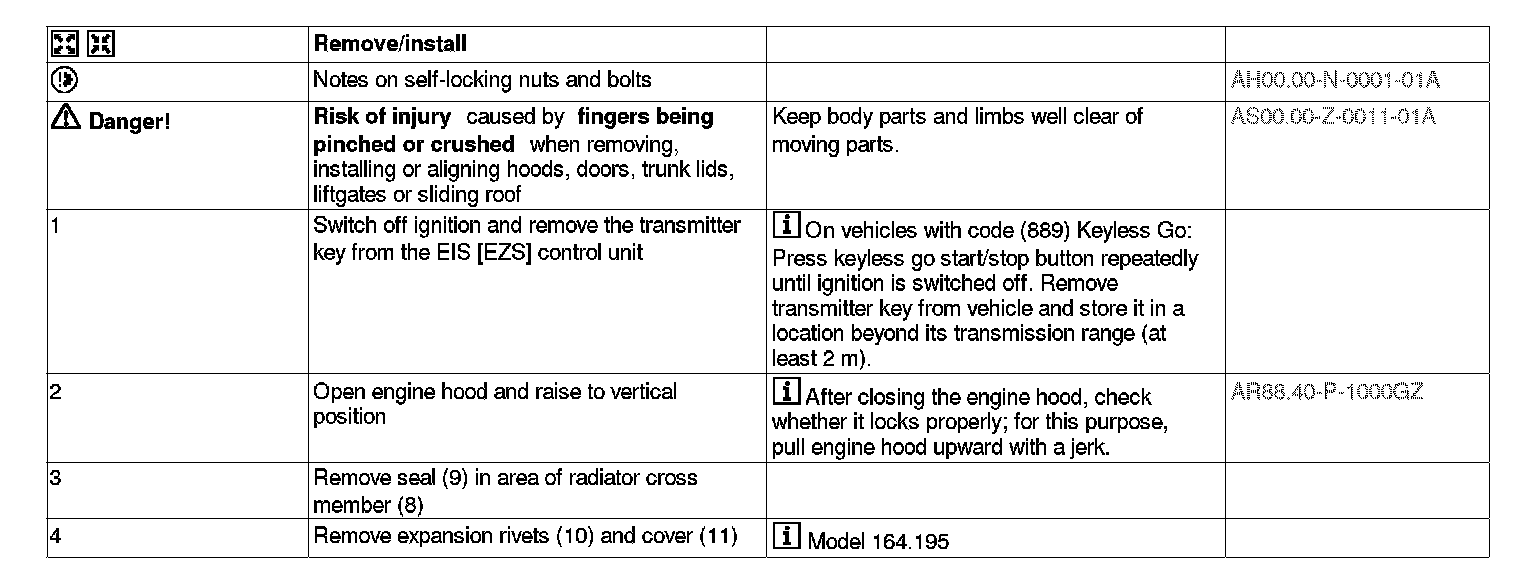

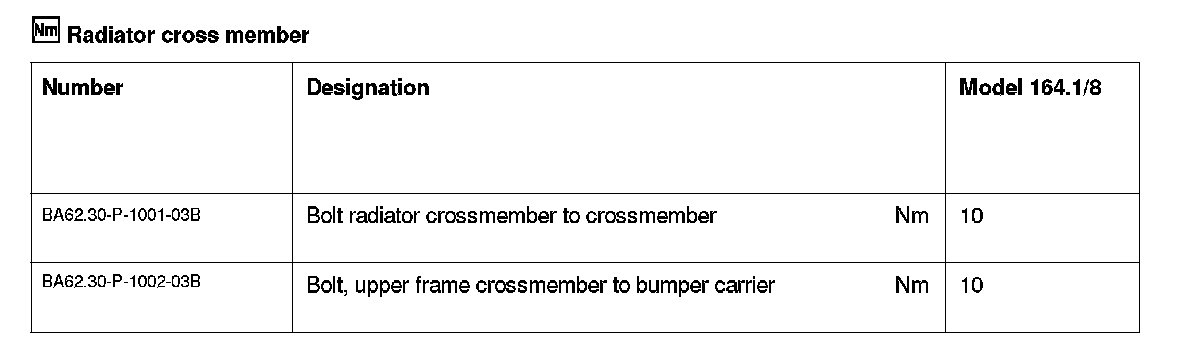

AR62.30-P-2300GZ Remove/Install Front End Cross Member

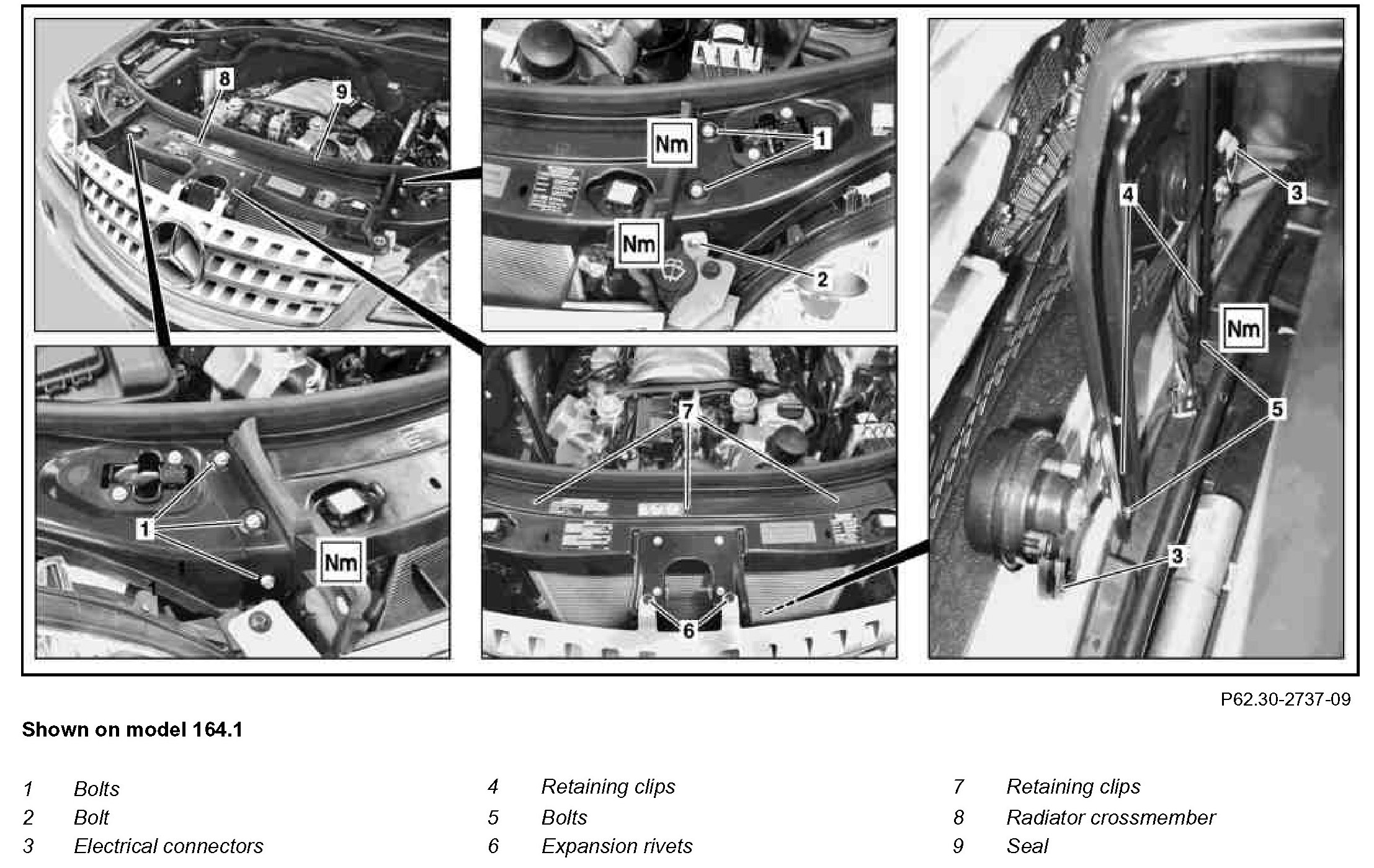

Component Identification:
