Mercedes Benz Truck
>>
2009
>>
ML 320 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Heater Core
>>
Service and Repair
Heater Core: Service and Repair
AR83.25-P-1100GZ Remove/Install Heat Exchanger

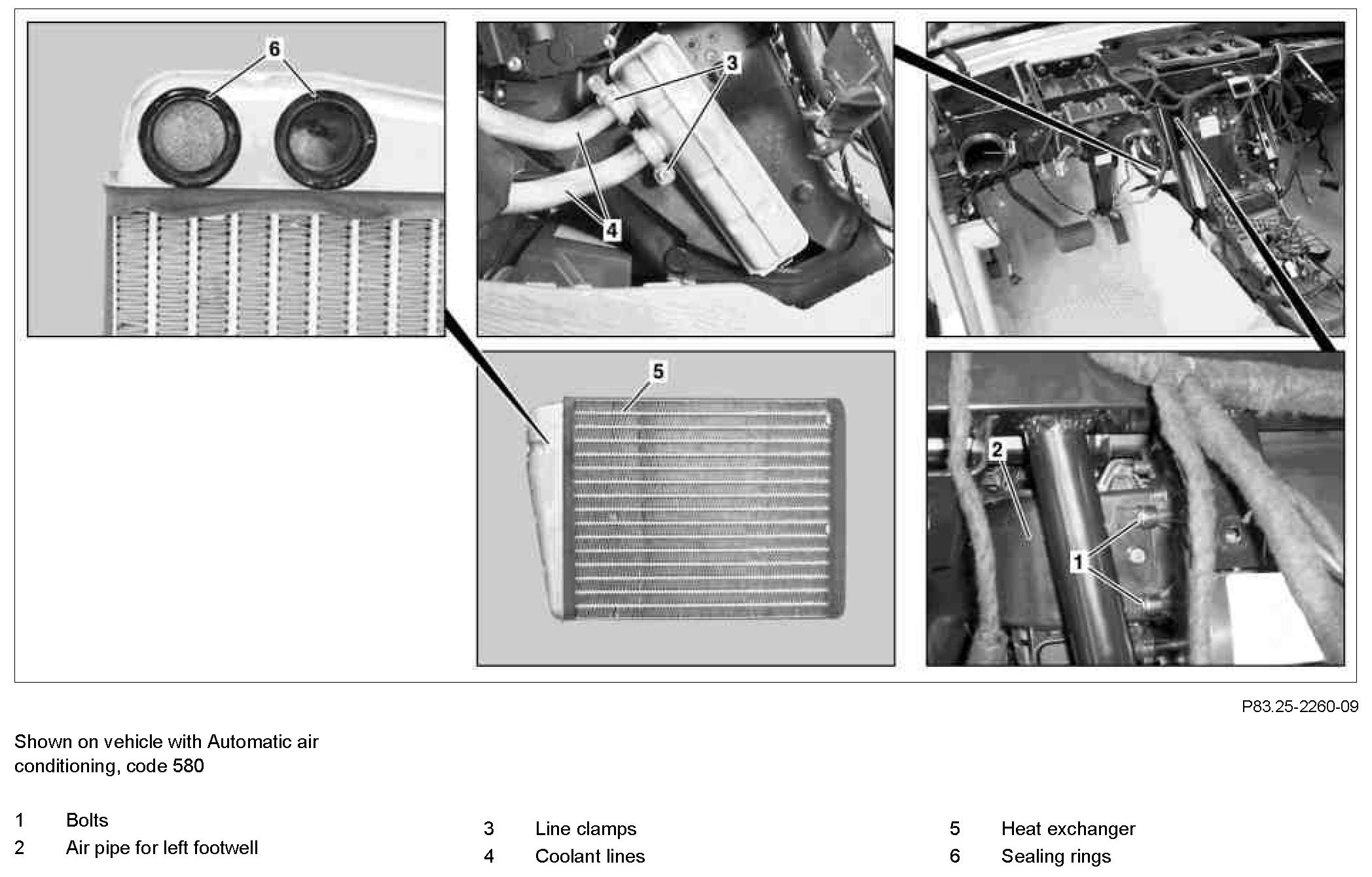

Component Identification:

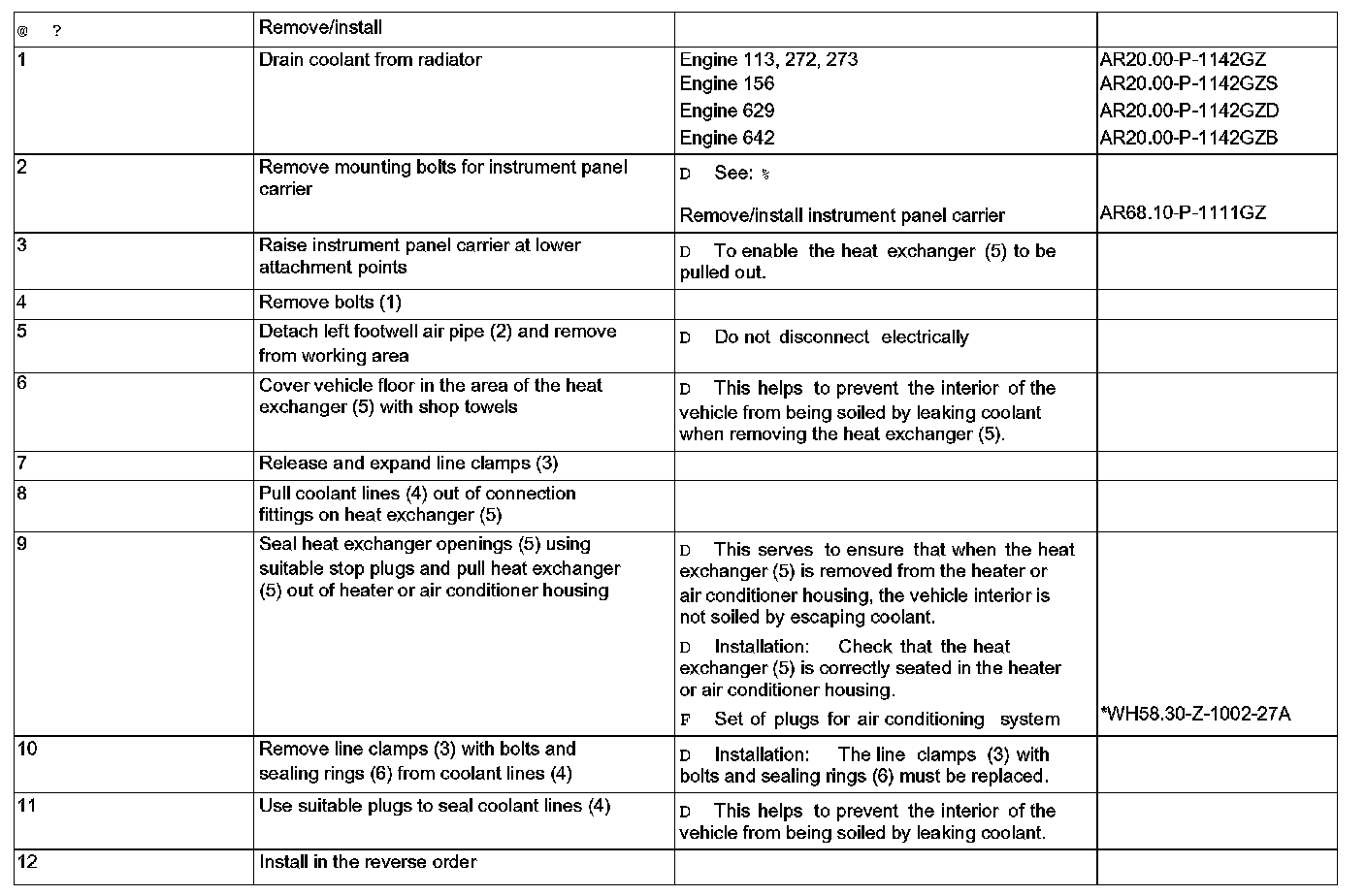

Steps 1 - 12:

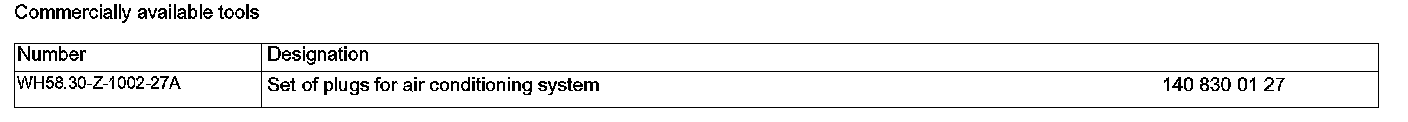

Commercially Available Tools:
