Body - Fuel Filler Door Is Loose

Date: December 9, 2008

Order No.: T-B-63.50/09a

Supersedes: T-B-63.50/09 dated June 1, 2006

Group: 63





Revision History

SUBJECT:
Model 164.122/125/172/175/177/186

Fuel Filler Flap Loose

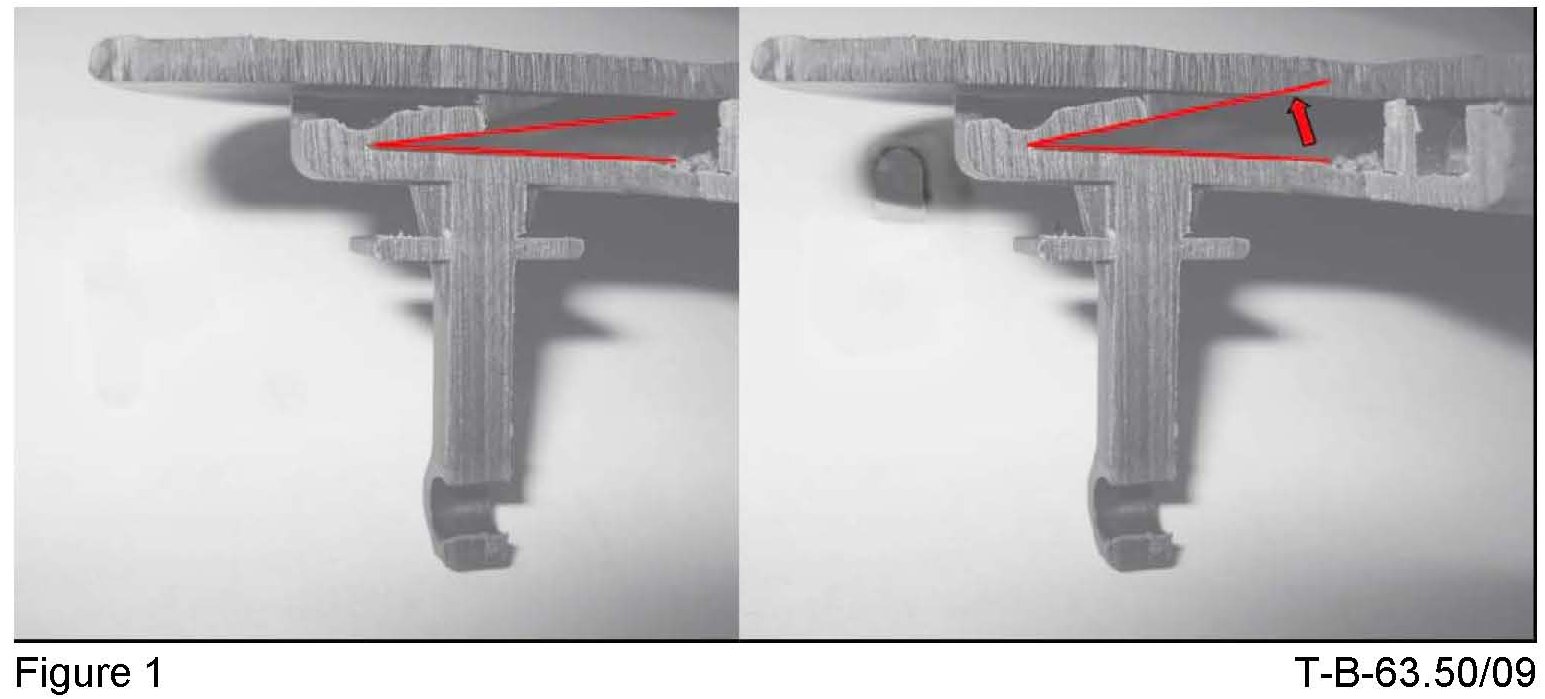

If you receive customer reports in the above model vehicles regarding a loose fuel filler flap, the locking tab for the fuel filler flap may not exert sufficient pressure (Figure 1) against the hinge portion. To tighten the fit between the fuel filler flap and the hinge, bond the fuel filler flap with a small piece of butyl tape (Figure 2) as used for windshields. There should be no need to replace the hinge assembly to correct the condition.





Parts Information

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on December 9, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty

Operation: Fuel filler flap, repair (63-0000)
