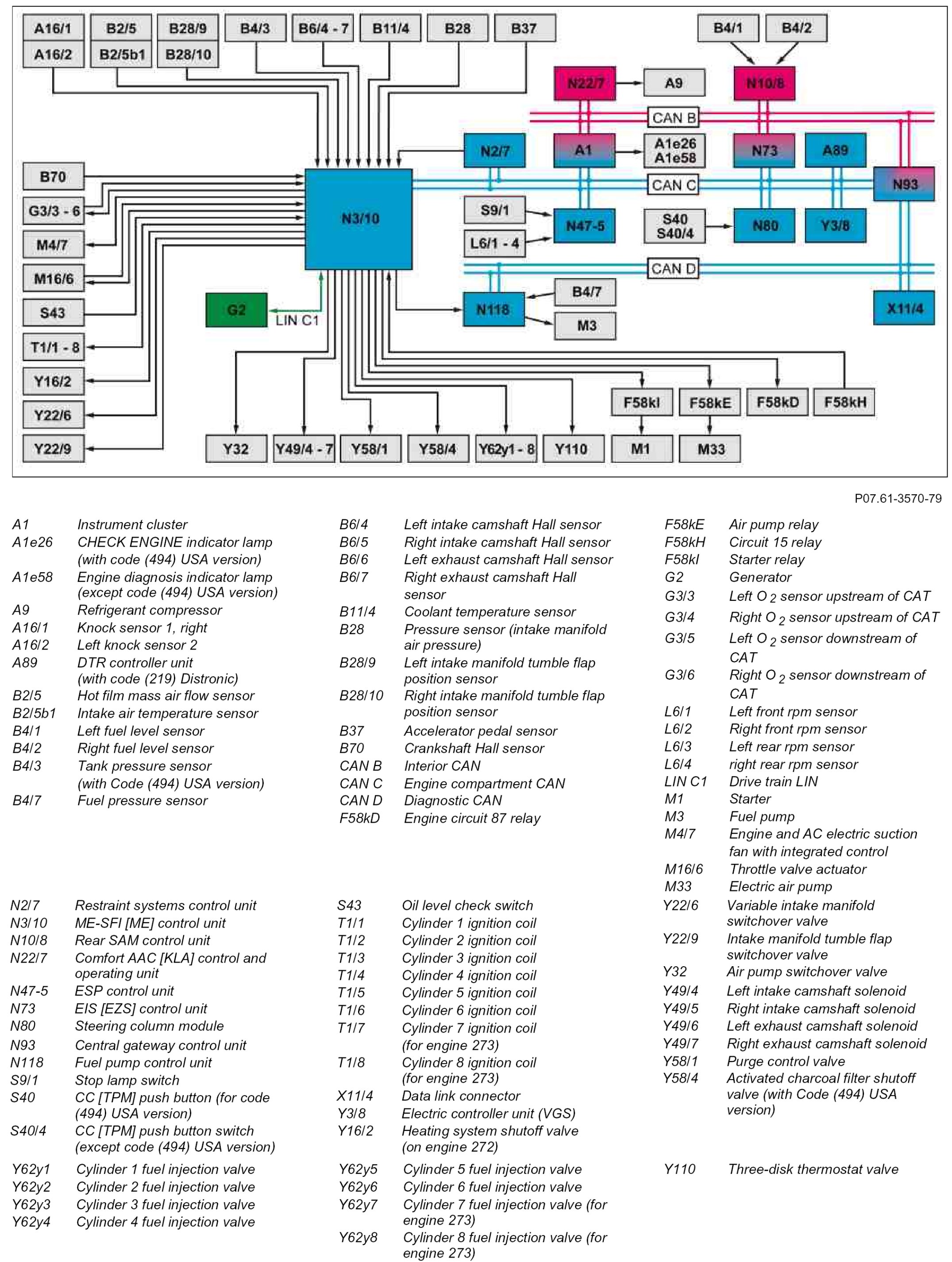

GF07.61-P-0001-13MIG Motor Electronics (ME-SFI) Fuel Injection and Ignition System, Block Diagram



GF07.61-P-0001-13MIG Motor Electronics (ME-SFI) Fuel Injection And Ignition System, Block Diagram
- as of model year 09


Component Identification:
