Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2009
>>
R 320 BLUETEC (251.125) V6-3.0L DSL Turbo (642.870)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Parking Brake System
>>
Adjustments
Parking Brake System: Adjustments
AR42.20-P-0540RT Adjusting parking brake

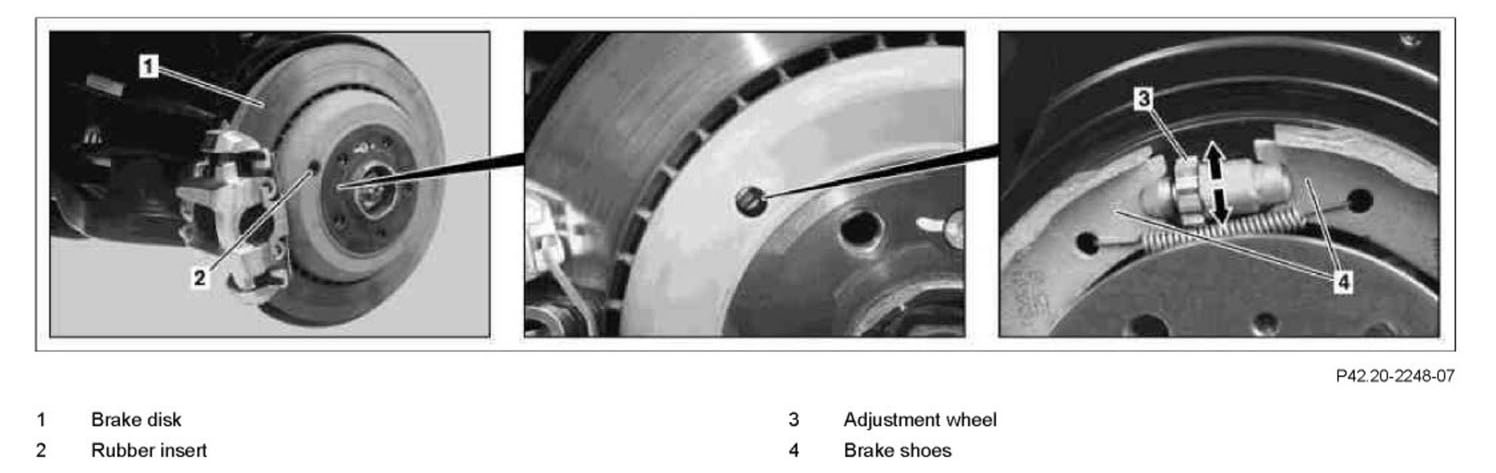

Component Identification:

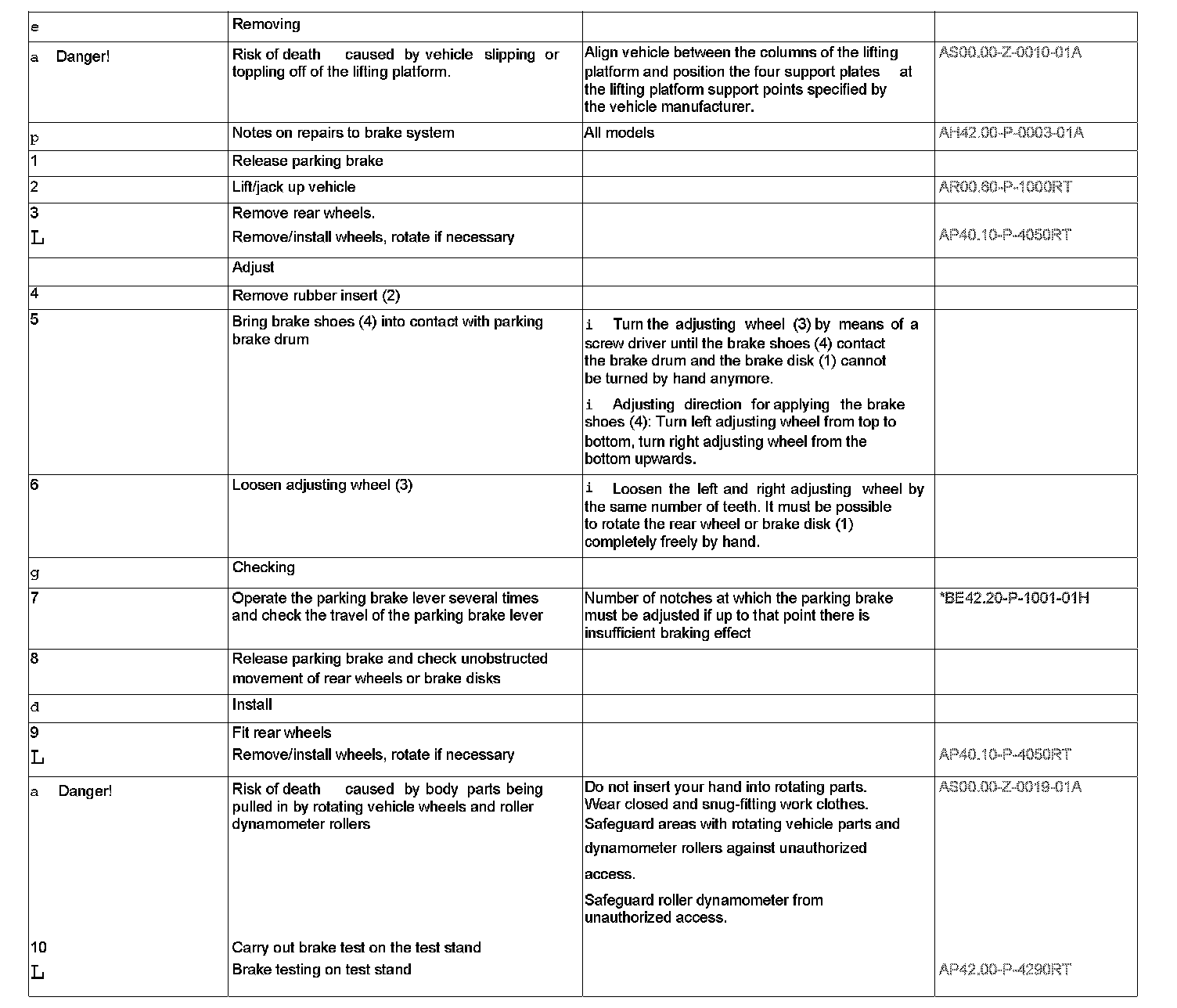

Steps 1 - 10:

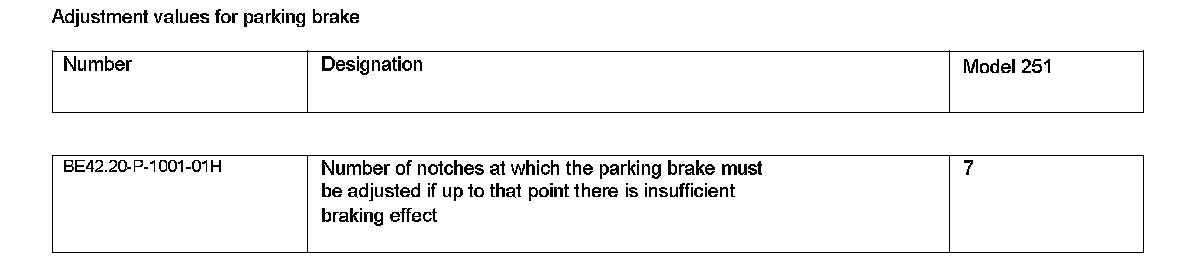

Adjustment Values For Parking Brake:
