Auxiliary Water Pump: Service and Repair



AR83.25-P-1170RT Remove/Install/Replace Heating Water Circulation Pump

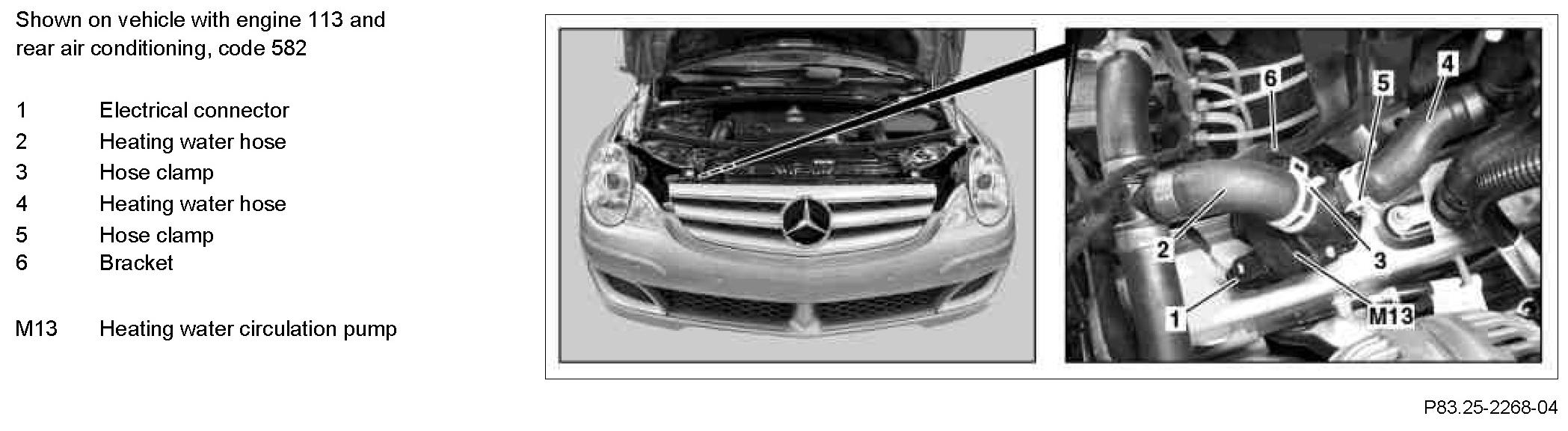

Component Identification:

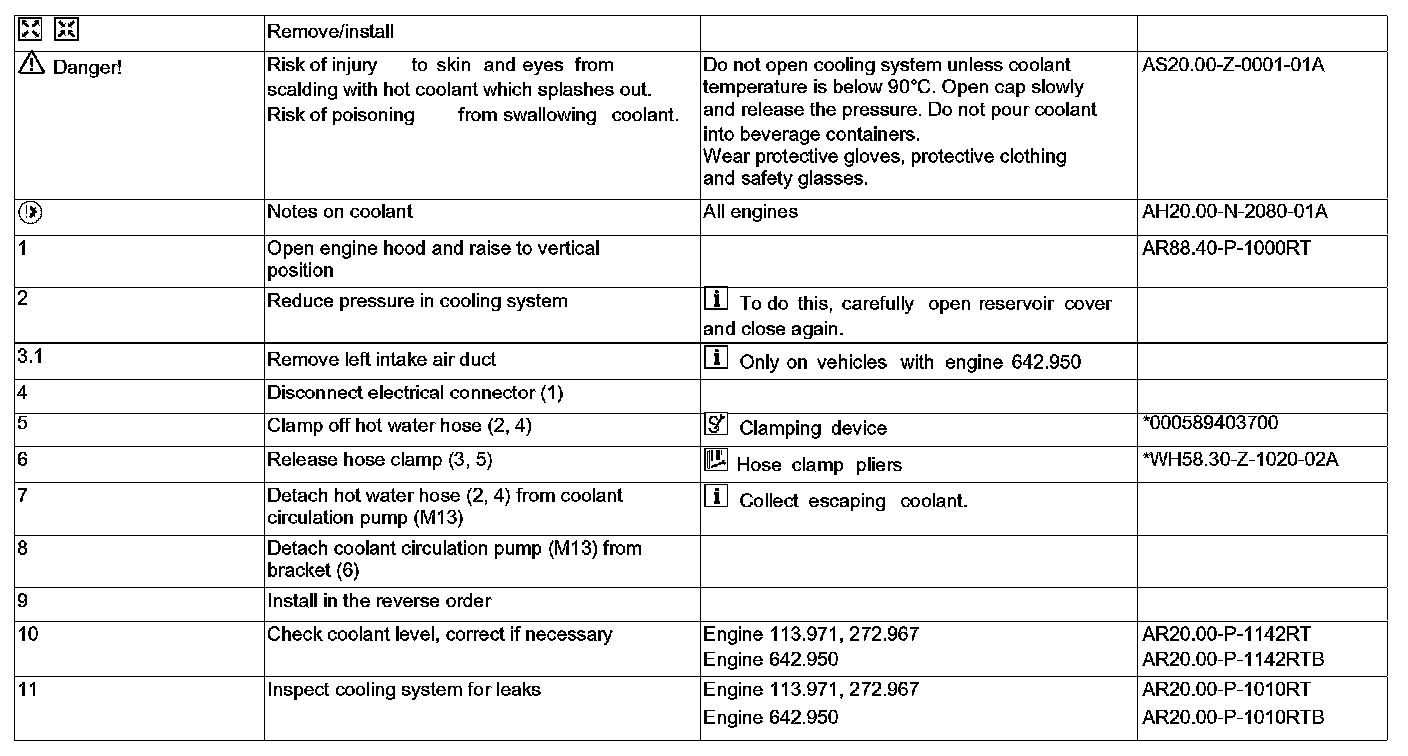

Steps 1 - 11:




Special Tools:

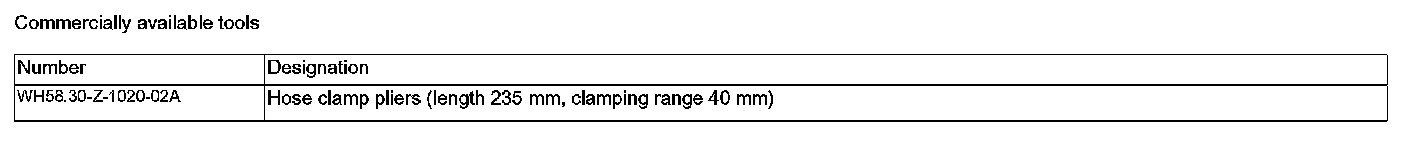

Commercially Available Tools:
