Condenser HVAC: Service and Repair

AR83.30-P-6540RT Install/Remove Condenser
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

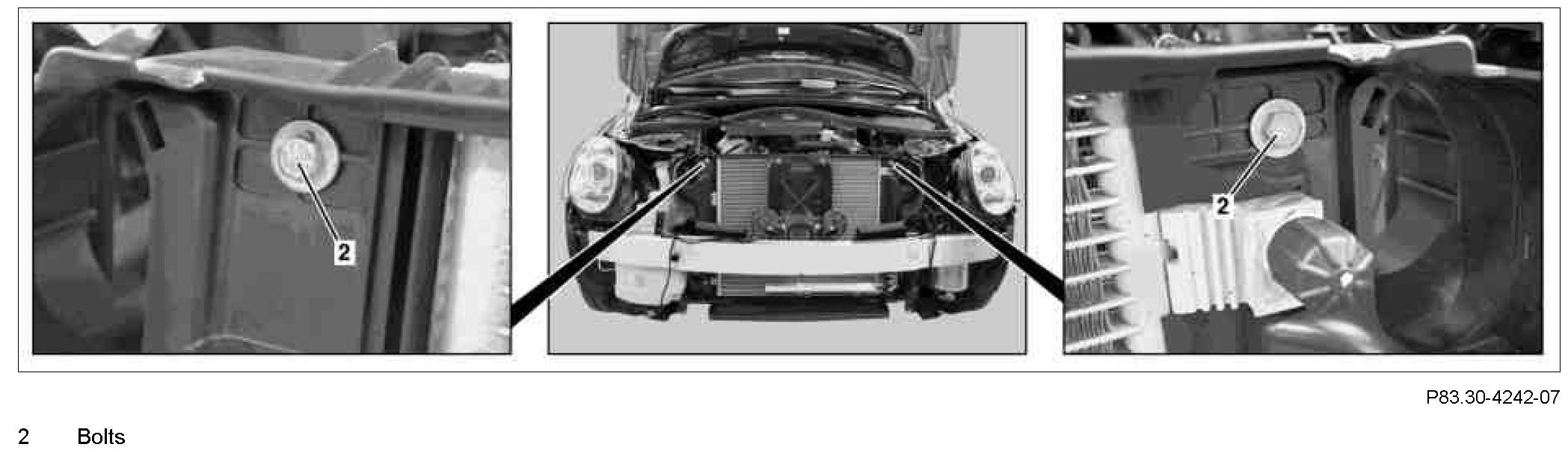

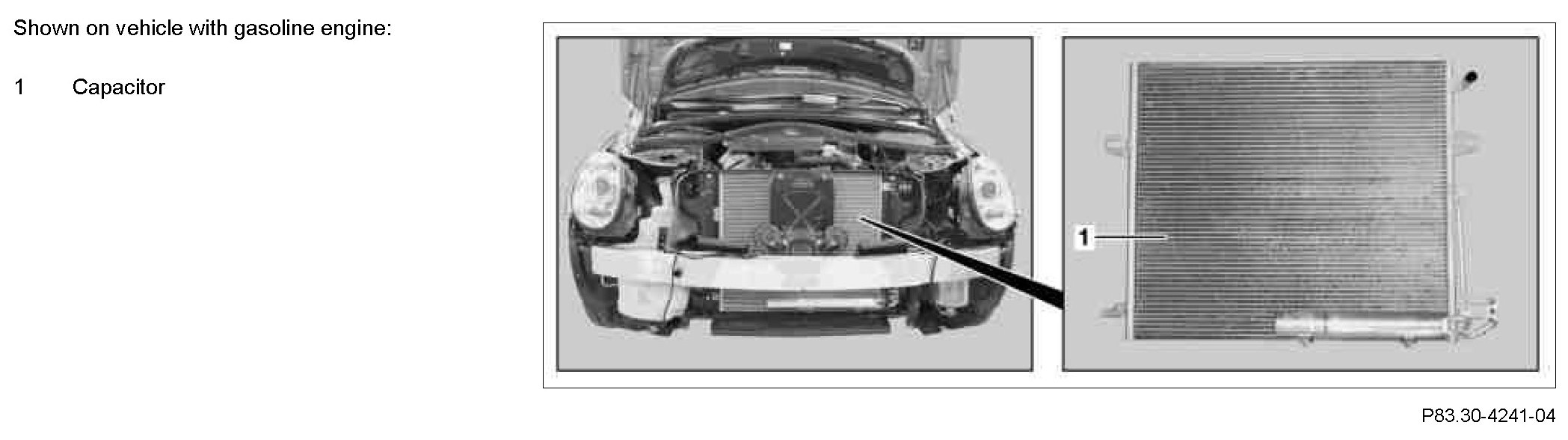

Component Identification:

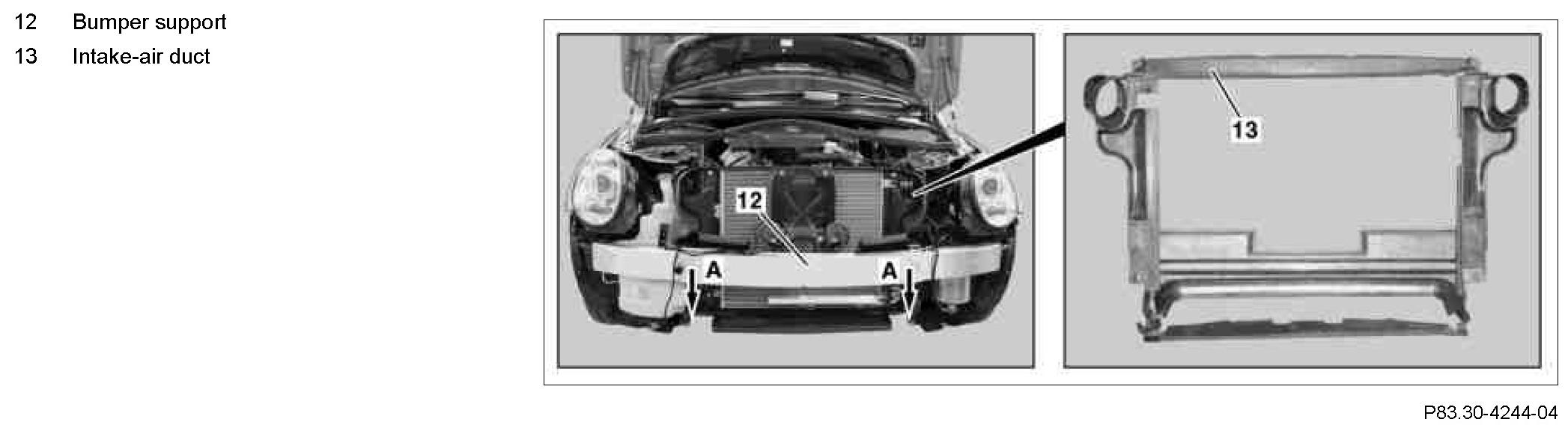

Component Identification:

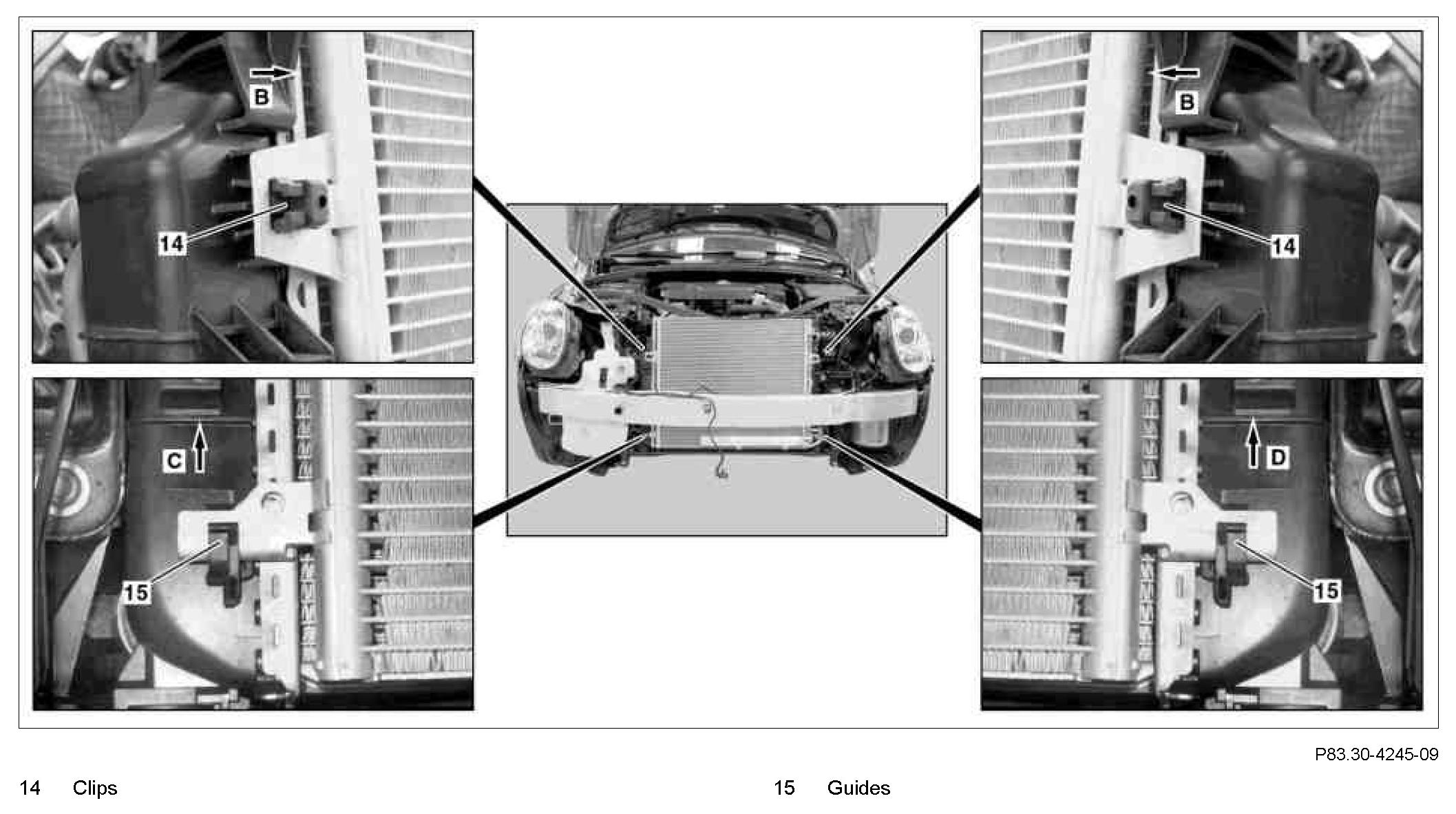

Component Identification:

Component Identification:

Component Identification:

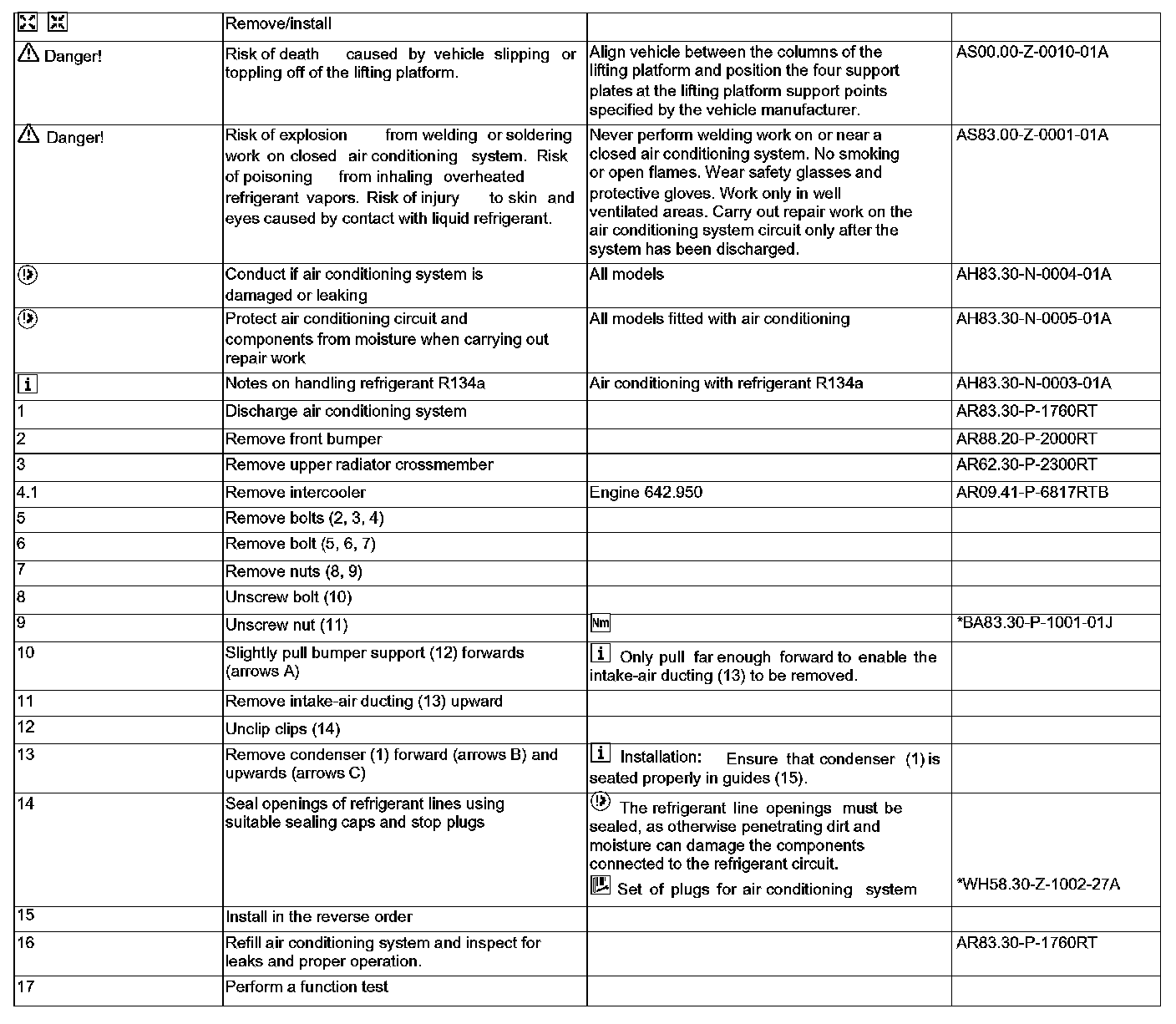

Steps 1 - 17:

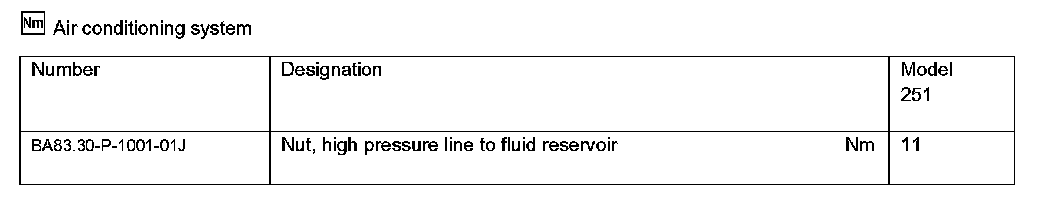

Air Conditioning System:

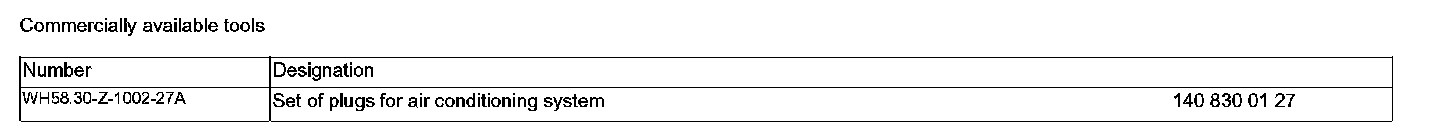

Commercially Available Tools:
