Service Port HVAC: Service and Repair
AR83.30-P-6522RT Remove/Install Service Valve
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

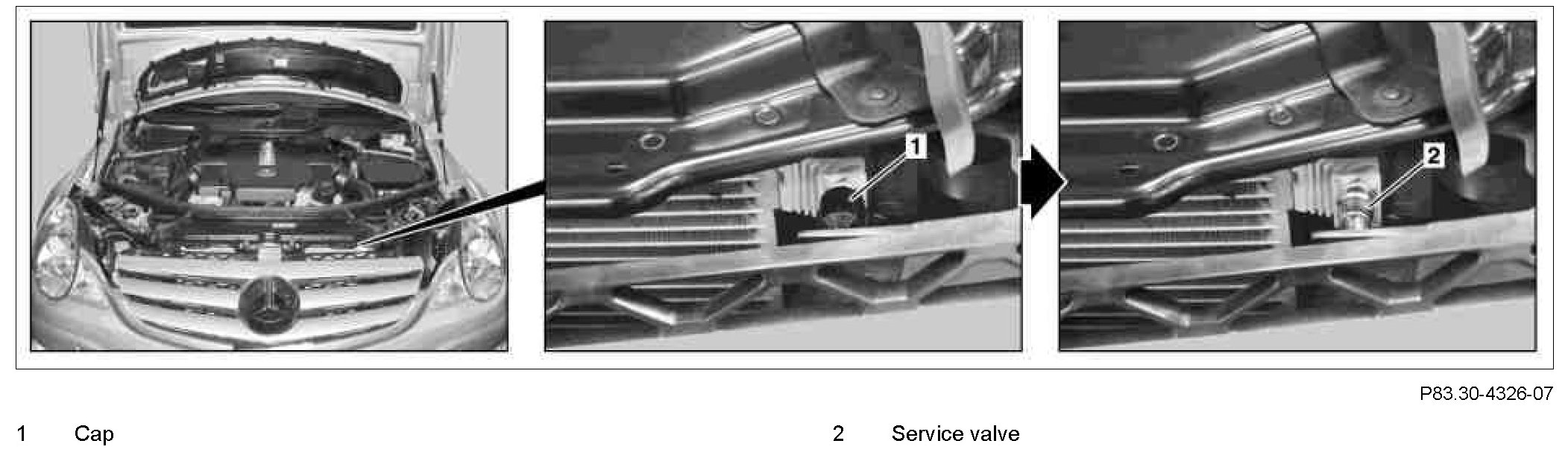

Component Identification:

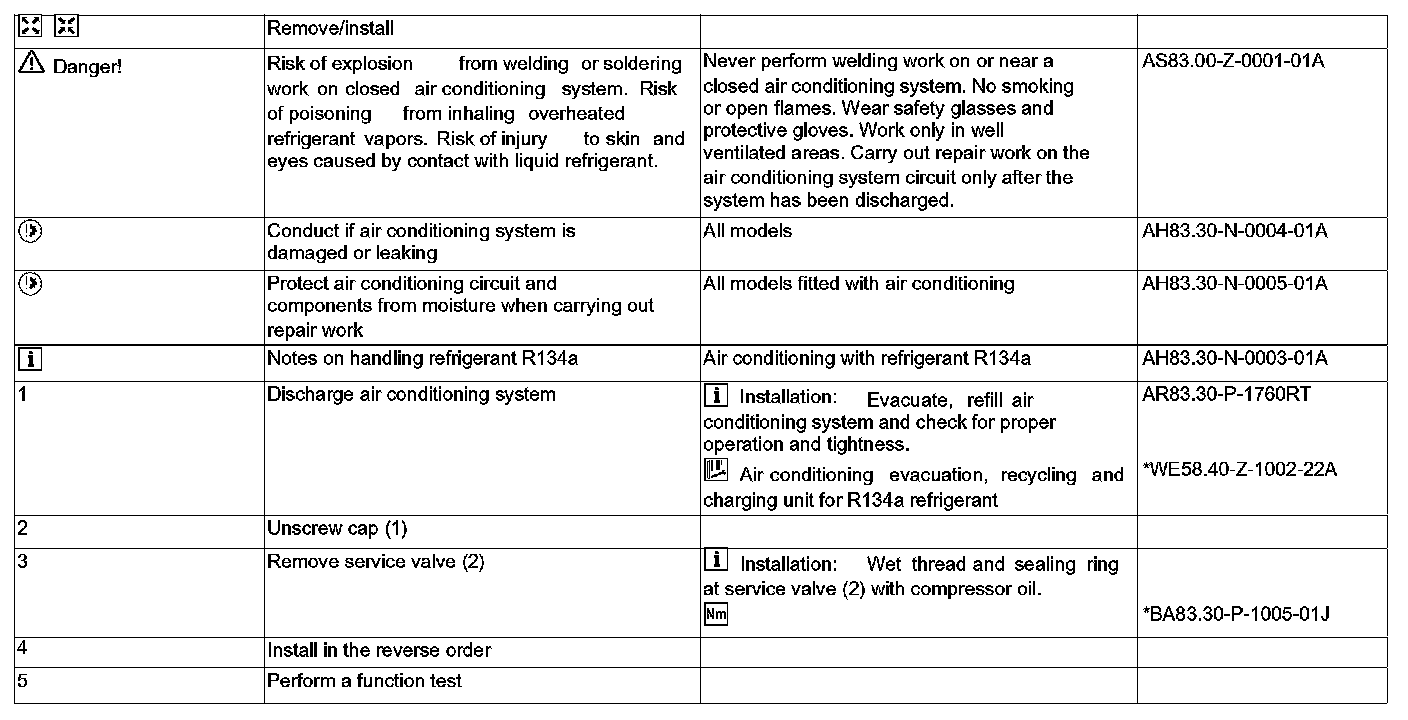

Steps 1 - 5:
Air Conditioning System:

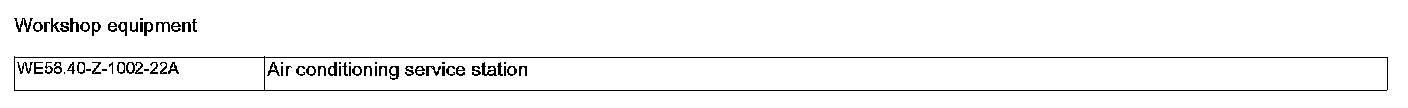

Workshop Equipment:
