Windshield Washer Hose: Service and Repair
AR82.35-P-6980RT Remove/Install Windshield Washer System
Washer Fluid
Hose

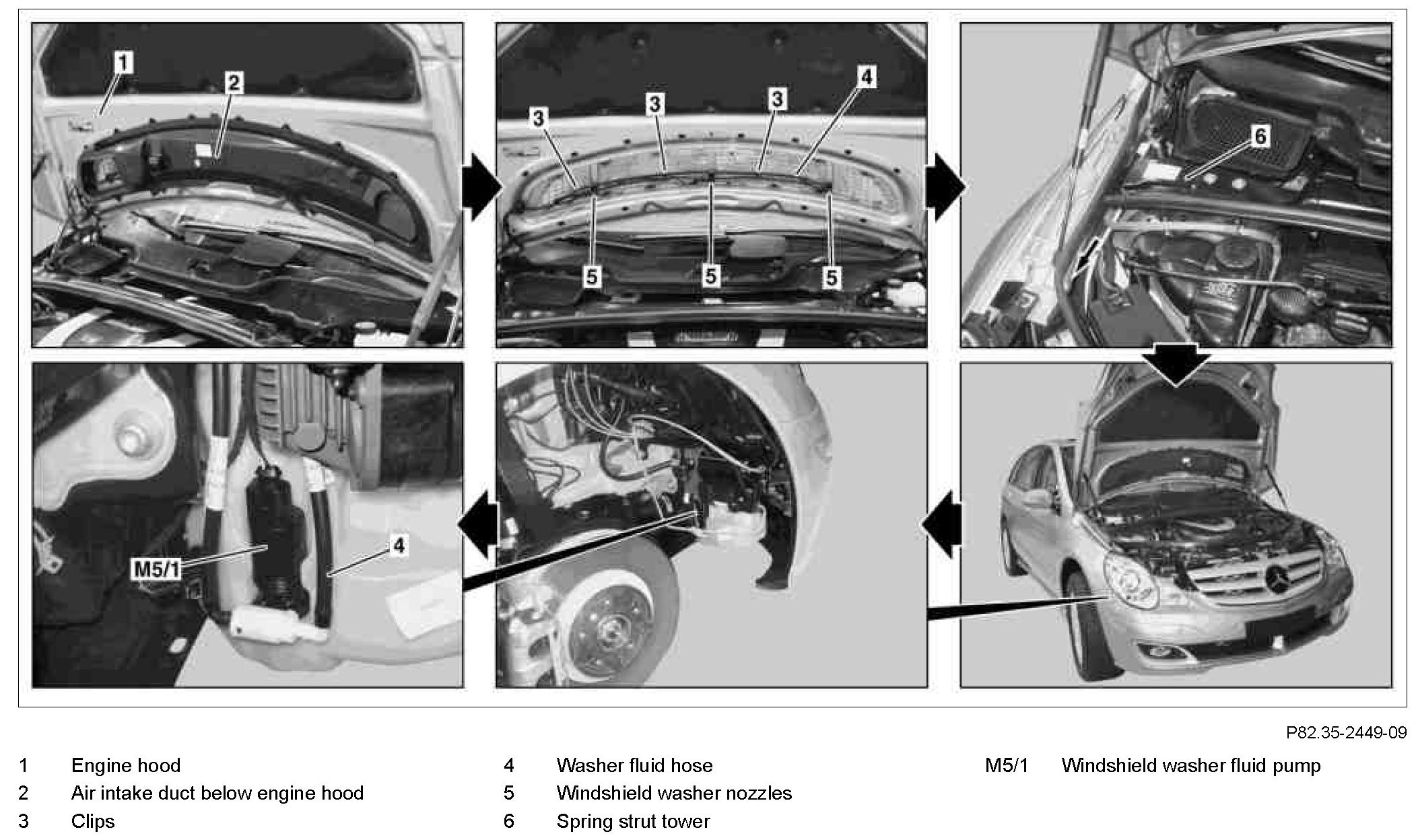

Component Identification:

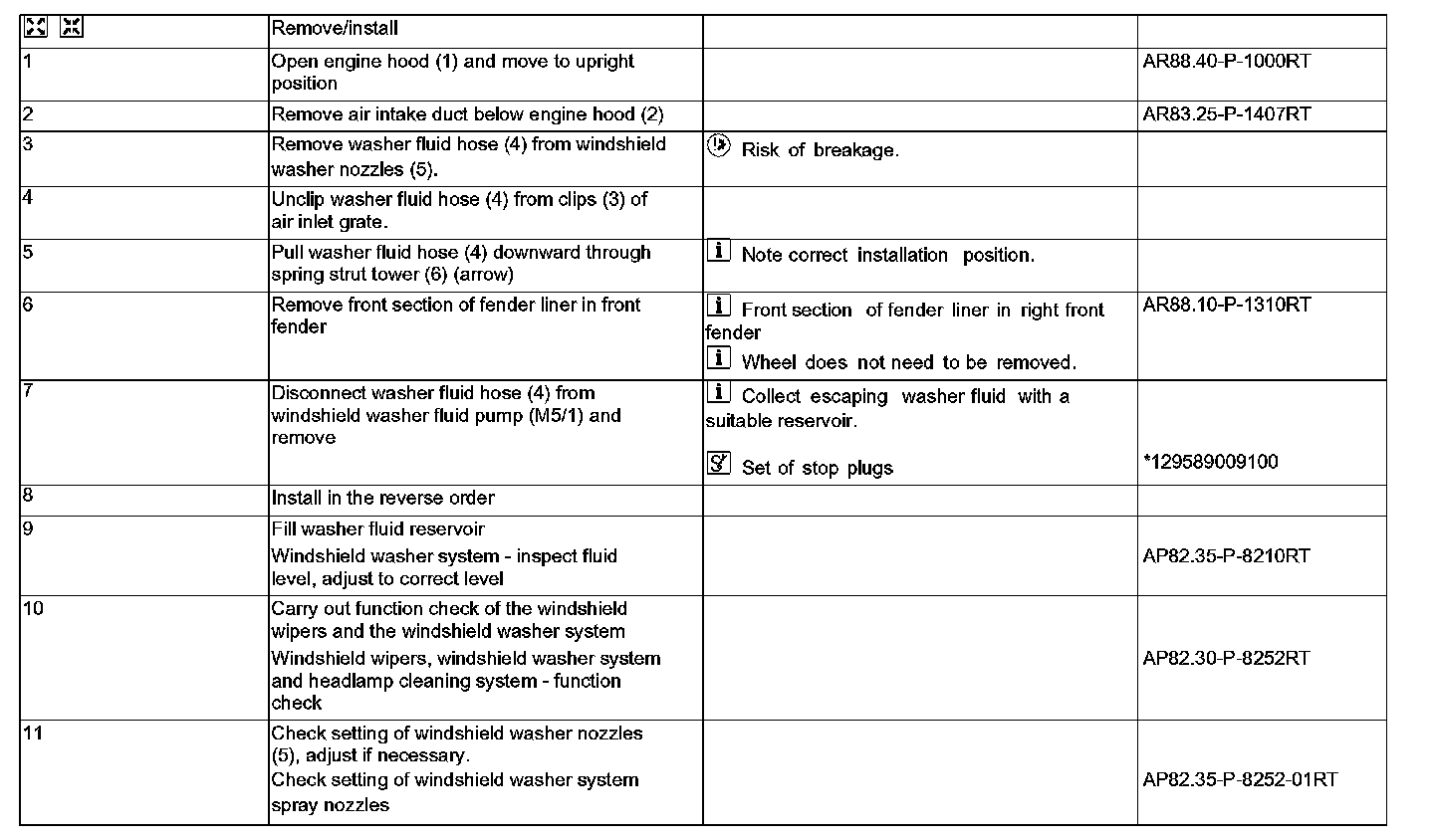

Steps 1 - 11:

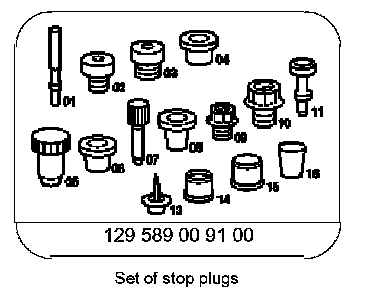

Special Tools:
