Windshield Washer Pump: Service and Repair
AR82.35-P-6002RT Remove/Install Windshield Washer System Pump

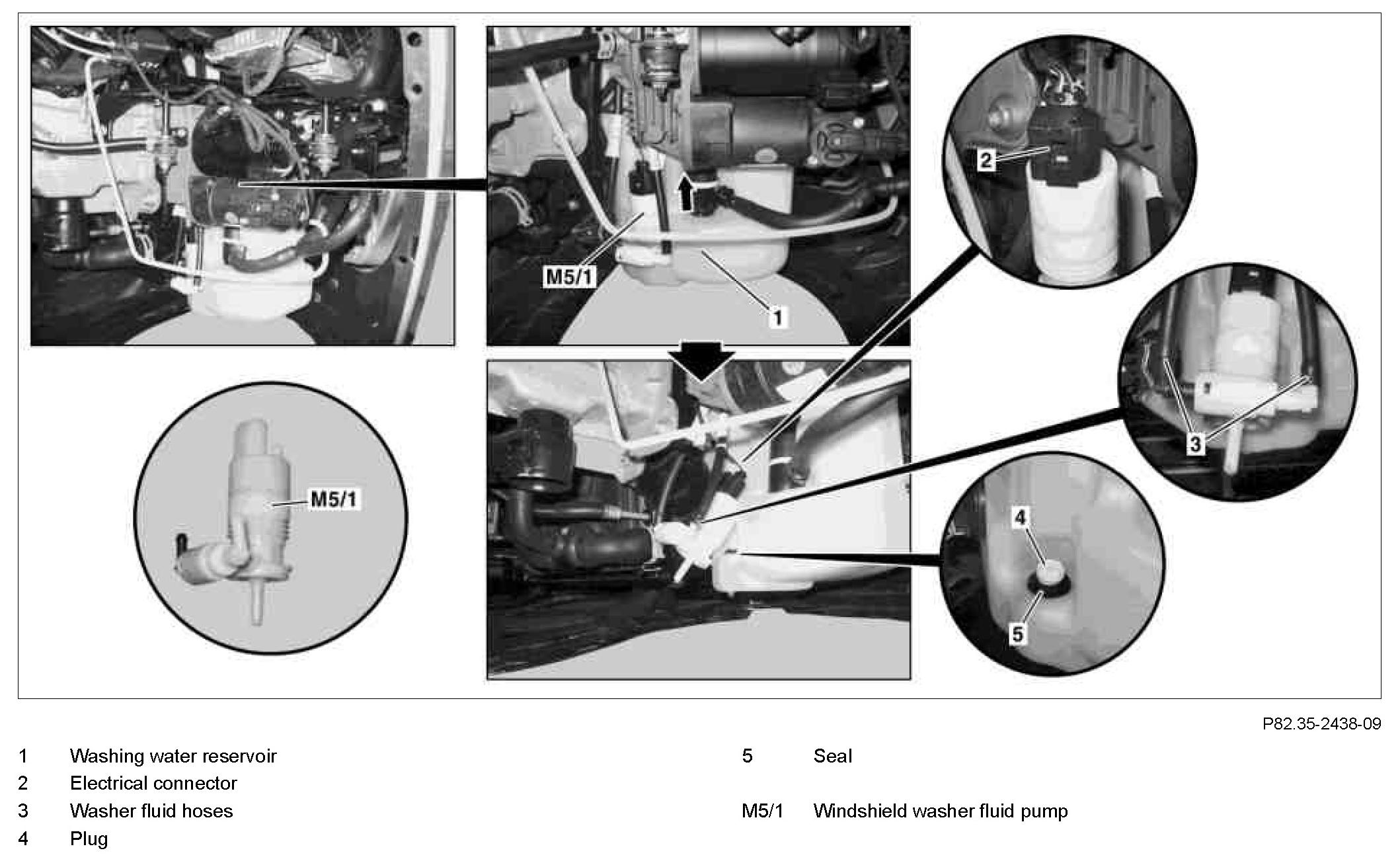

Component Identification:

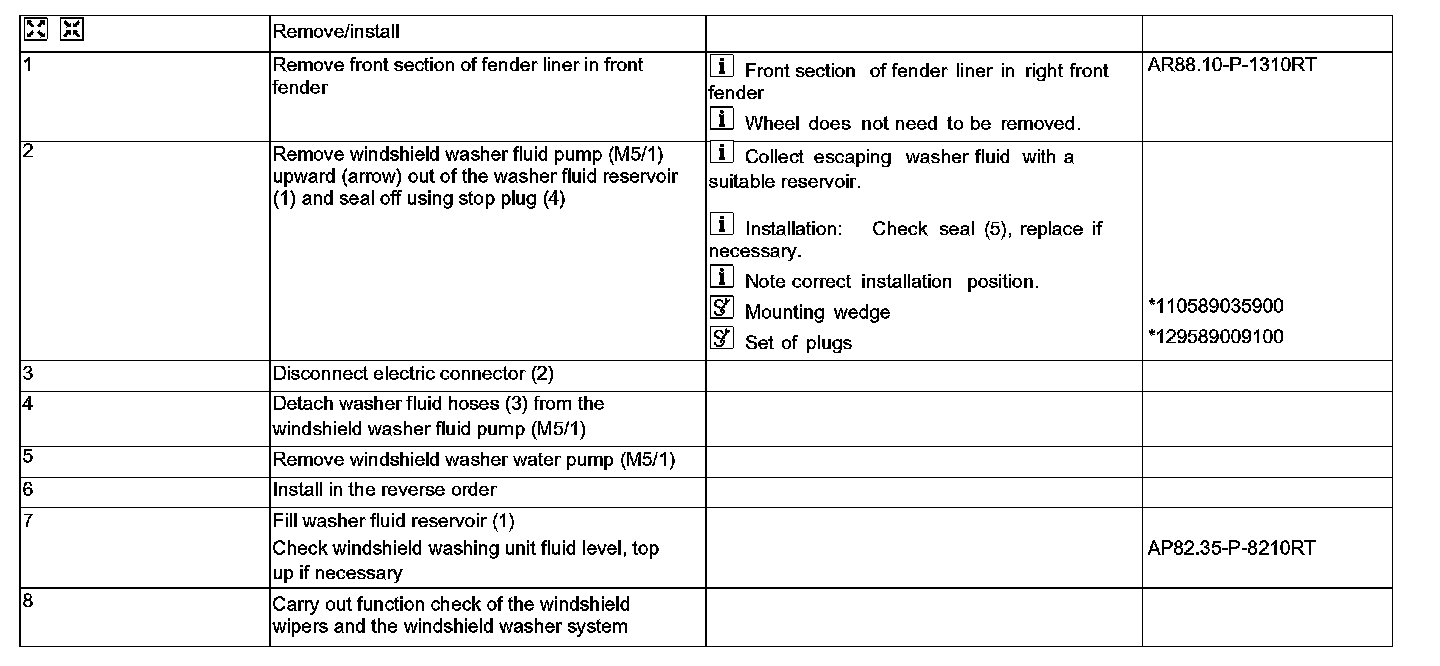

Steps 1 - 8:

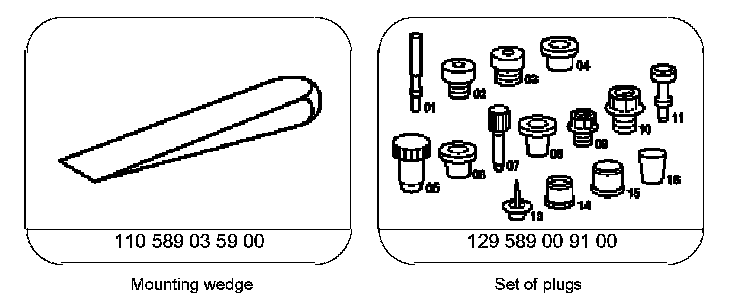

Special Tools:
