Electrical Diagrams

Wiring Diagram Of Telephone Preinstallation PE82.70-P-2100RAA
- with CODE (386) Preinstallation for telephone "Cellphone"
- UPCI [UHI] system
- except CODE (498) Japan version
- up to model year 2009

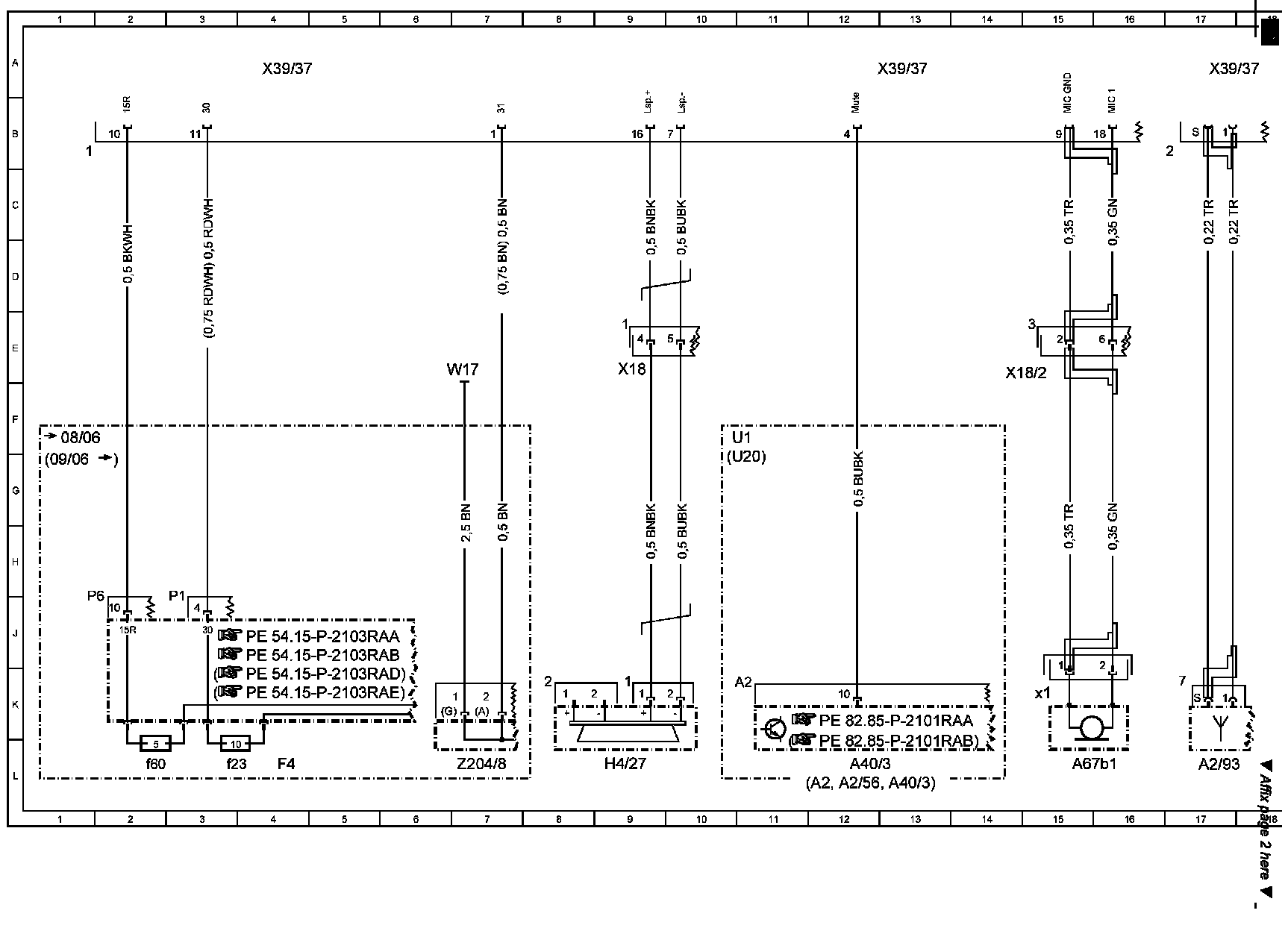

Wiring Diagram (Part 1):

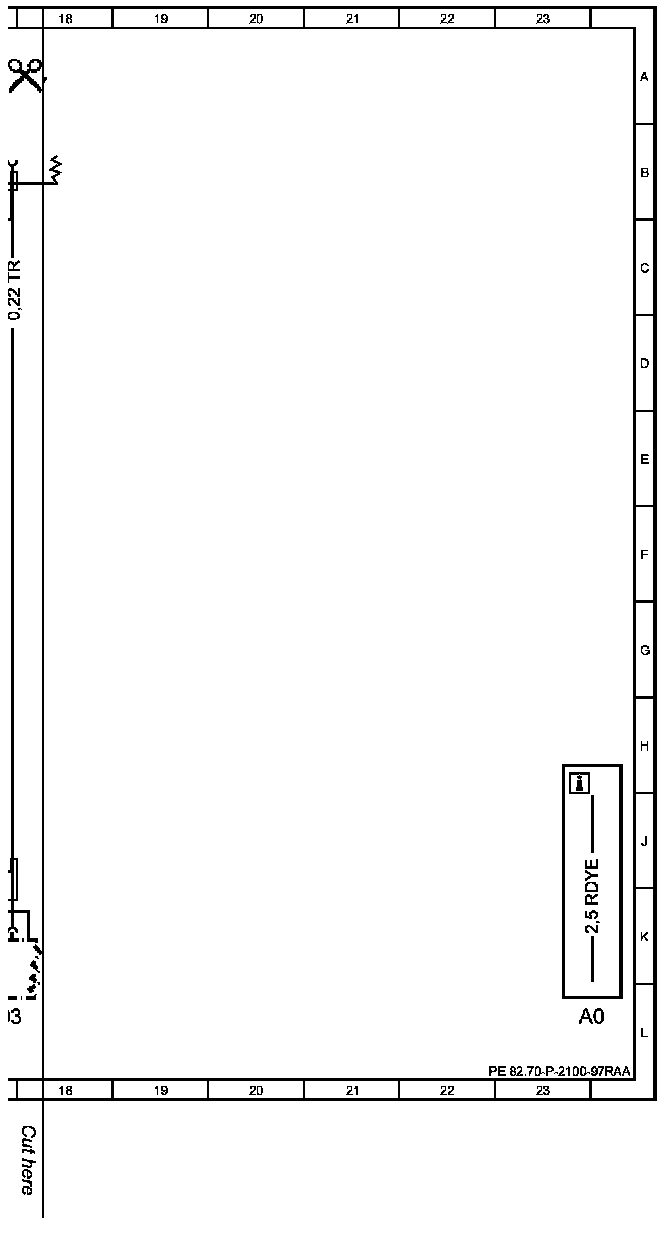

Wiring Diagram (Part 2):

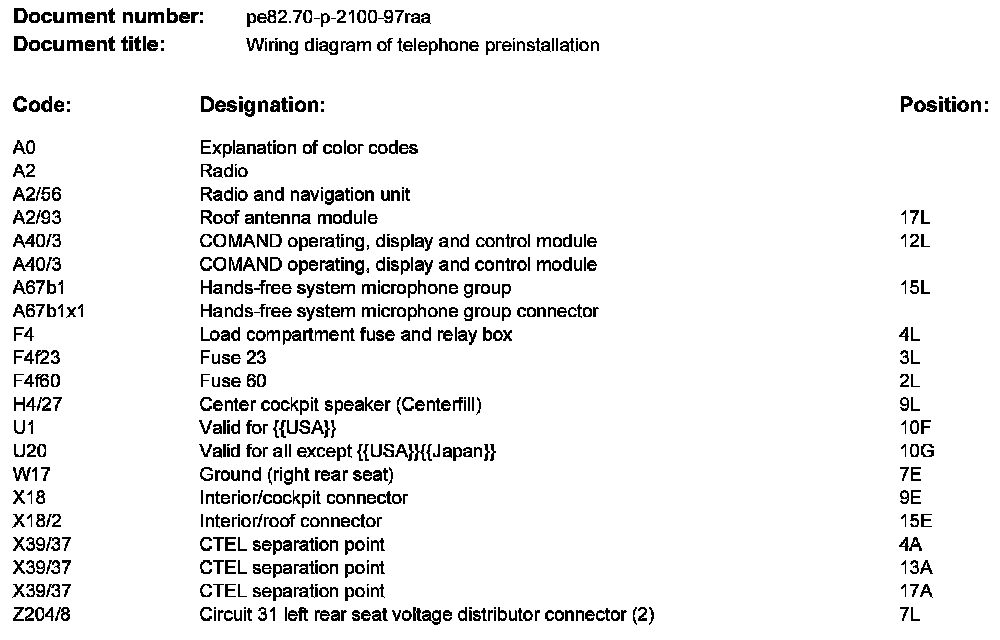

Component Description/Coordinates, A0 To Z204/8:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
