PE82.90-P-2053RAA Electrical Function Schematic For Rear Entertainment TV Reception

Electrical Function Schematic For Rear Entertainment TV Reception PE82.90-P-2053RAA
- with CODE (864) Rear entertainment system
- with CODE (863) Digital/analog TV tuner
- as of model year 09

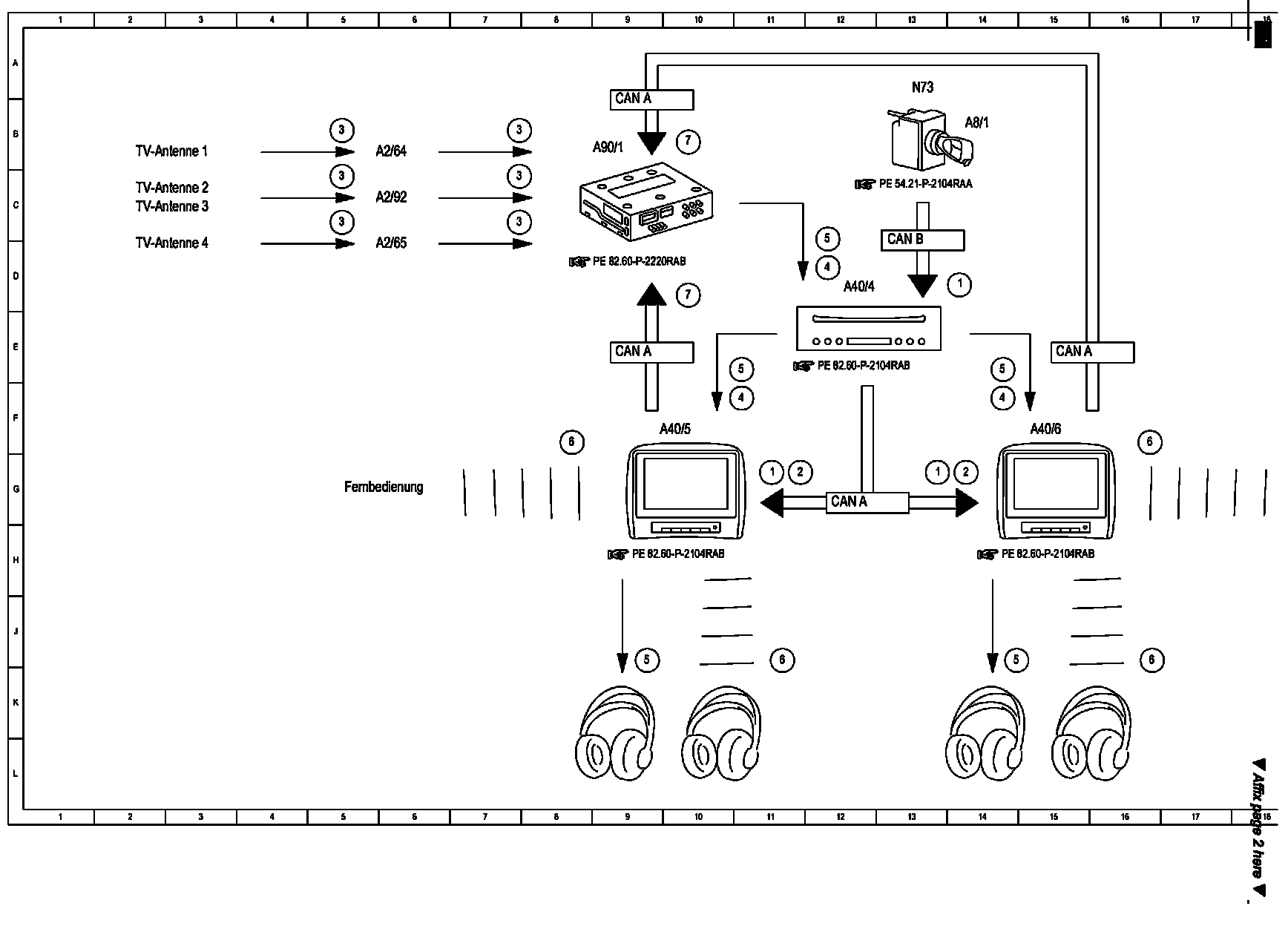

Function Diagram (Part 1):

Function Diagram (Part 2):

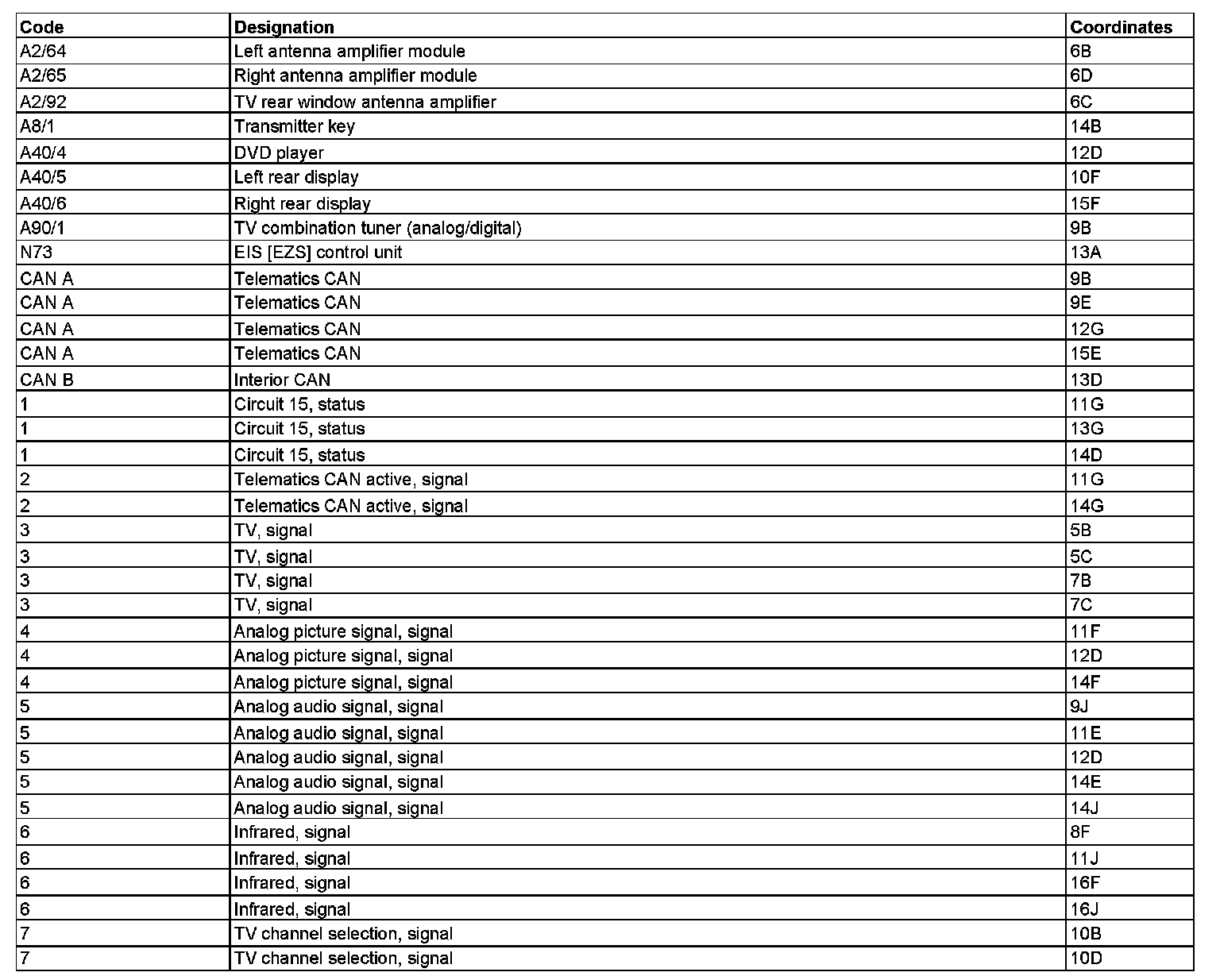

Component Description/Coordinates, A2/64 To 7:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
