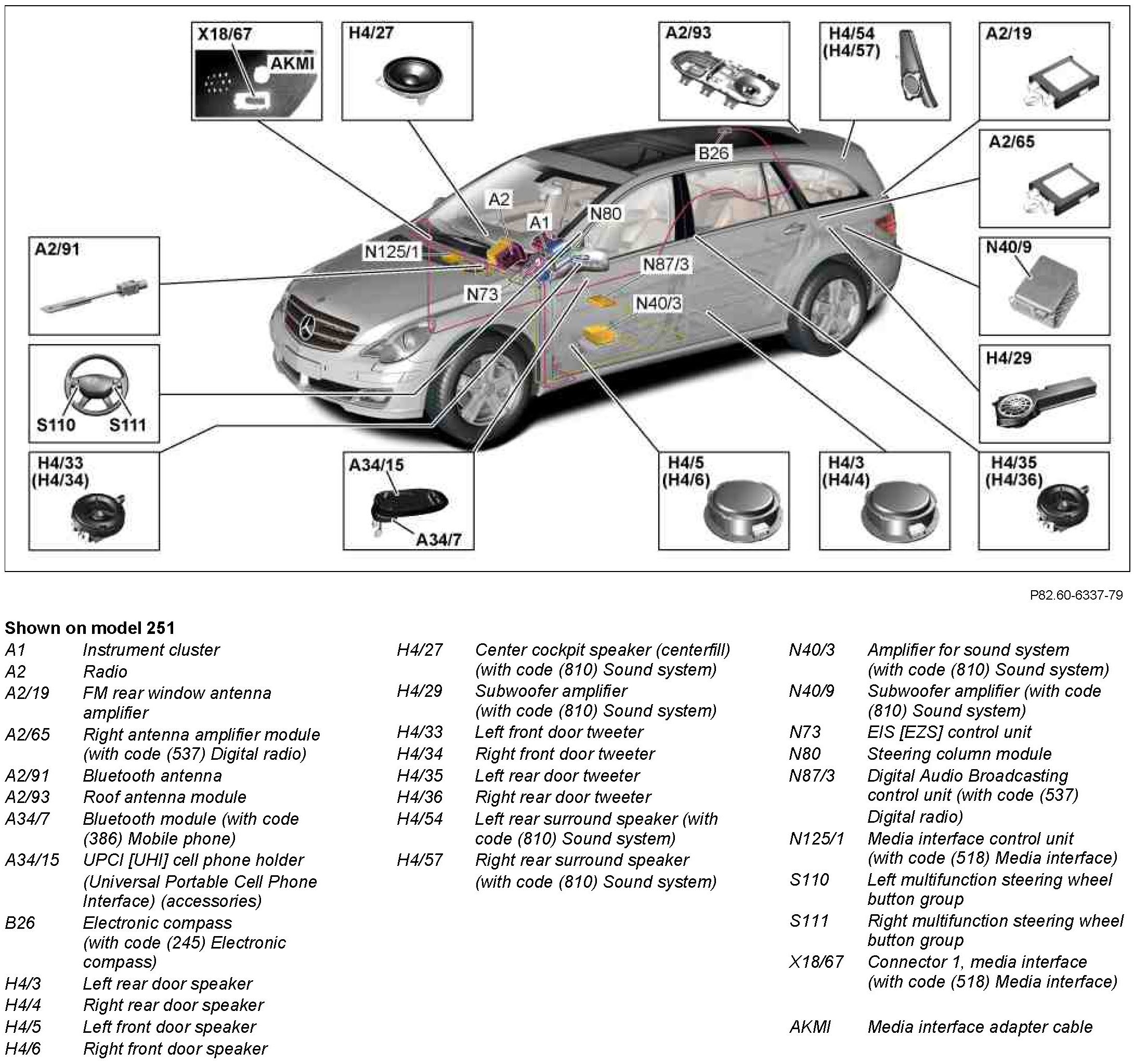

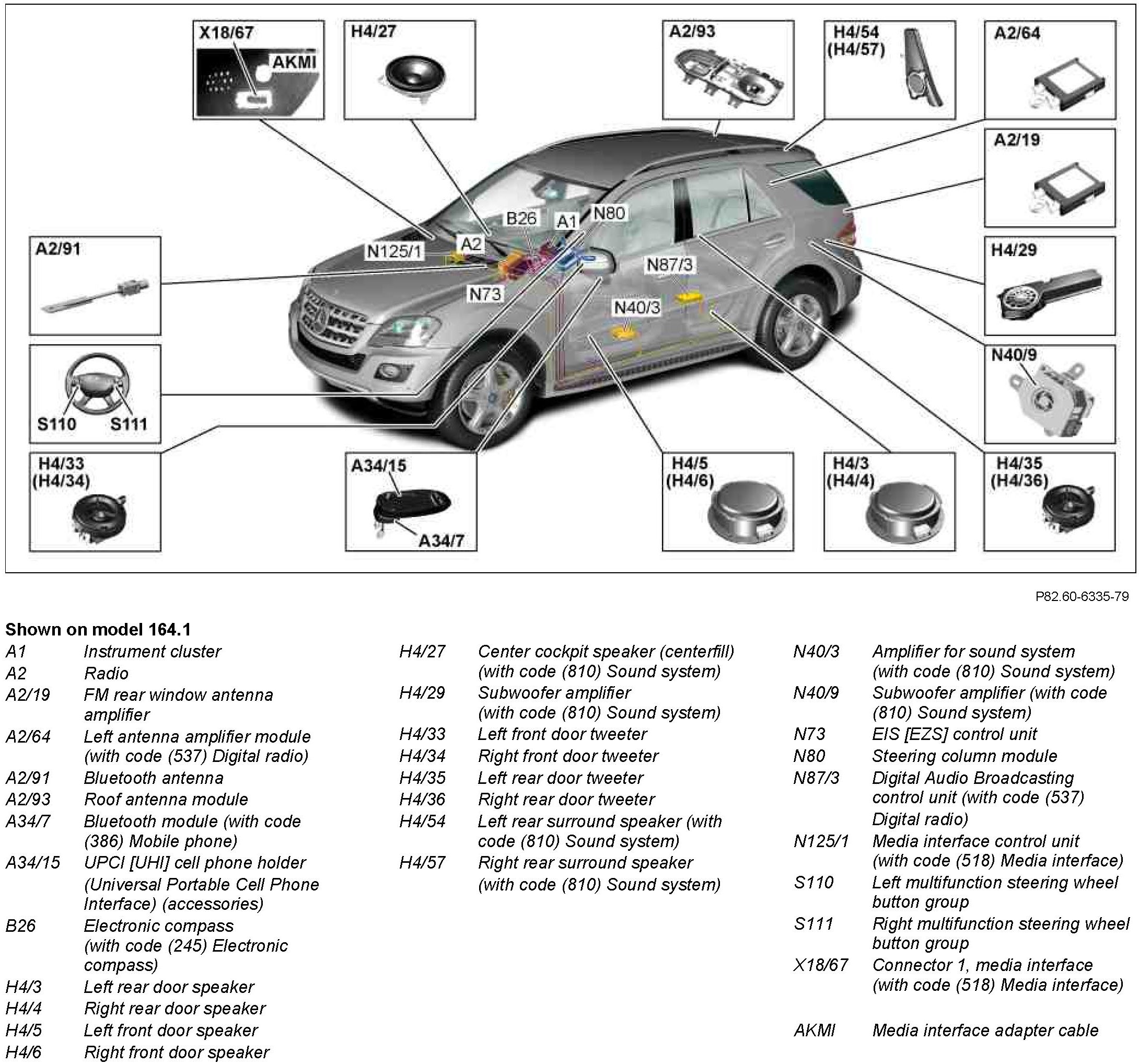

GF82.60-P-0004-01GQA Audio System, Location of Components



GF82.60-P-0004-01GQA Audio System, Location Of Components
- with CODE (510) Audio 20 with CD changer



Component Identification:





Component Identification:
