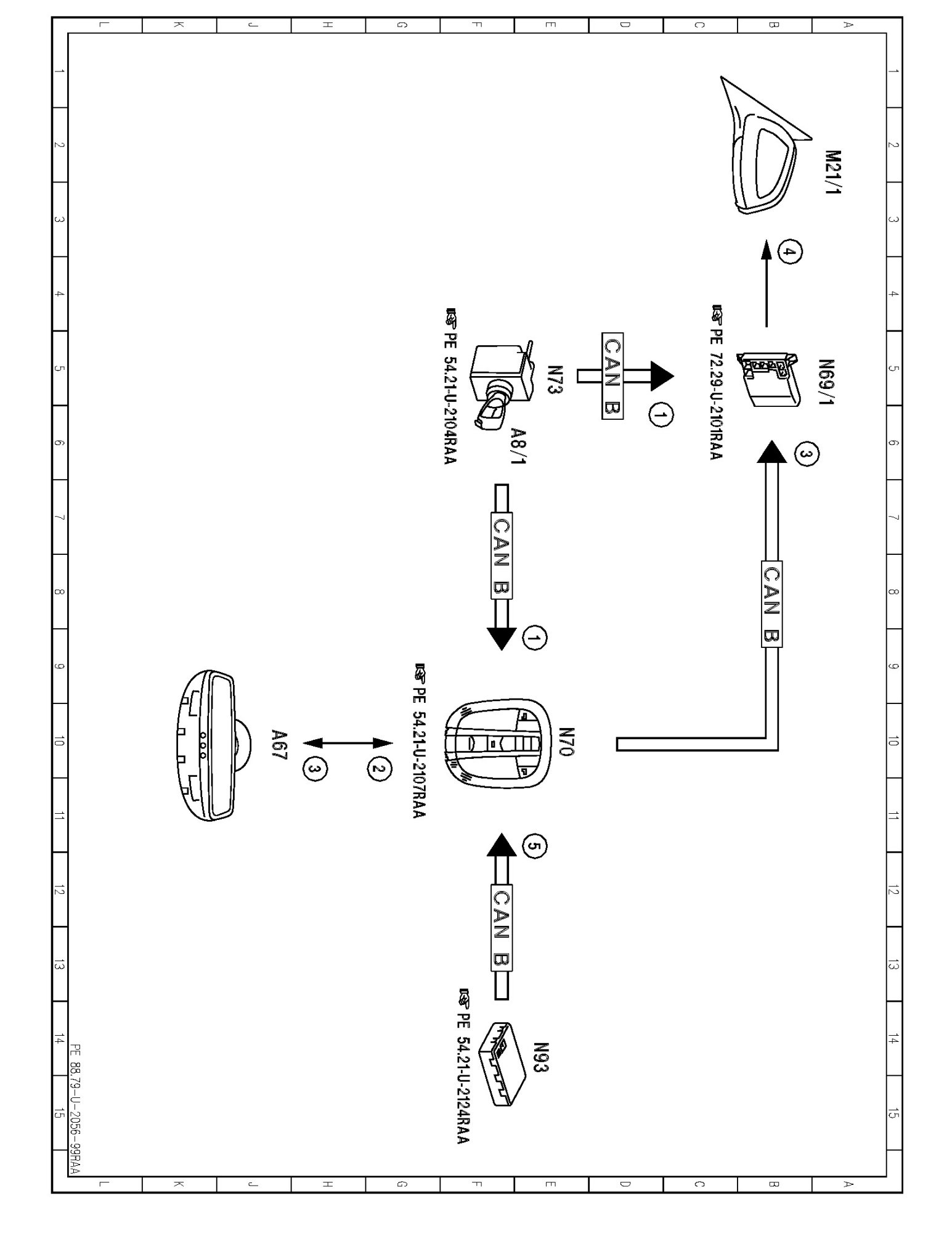

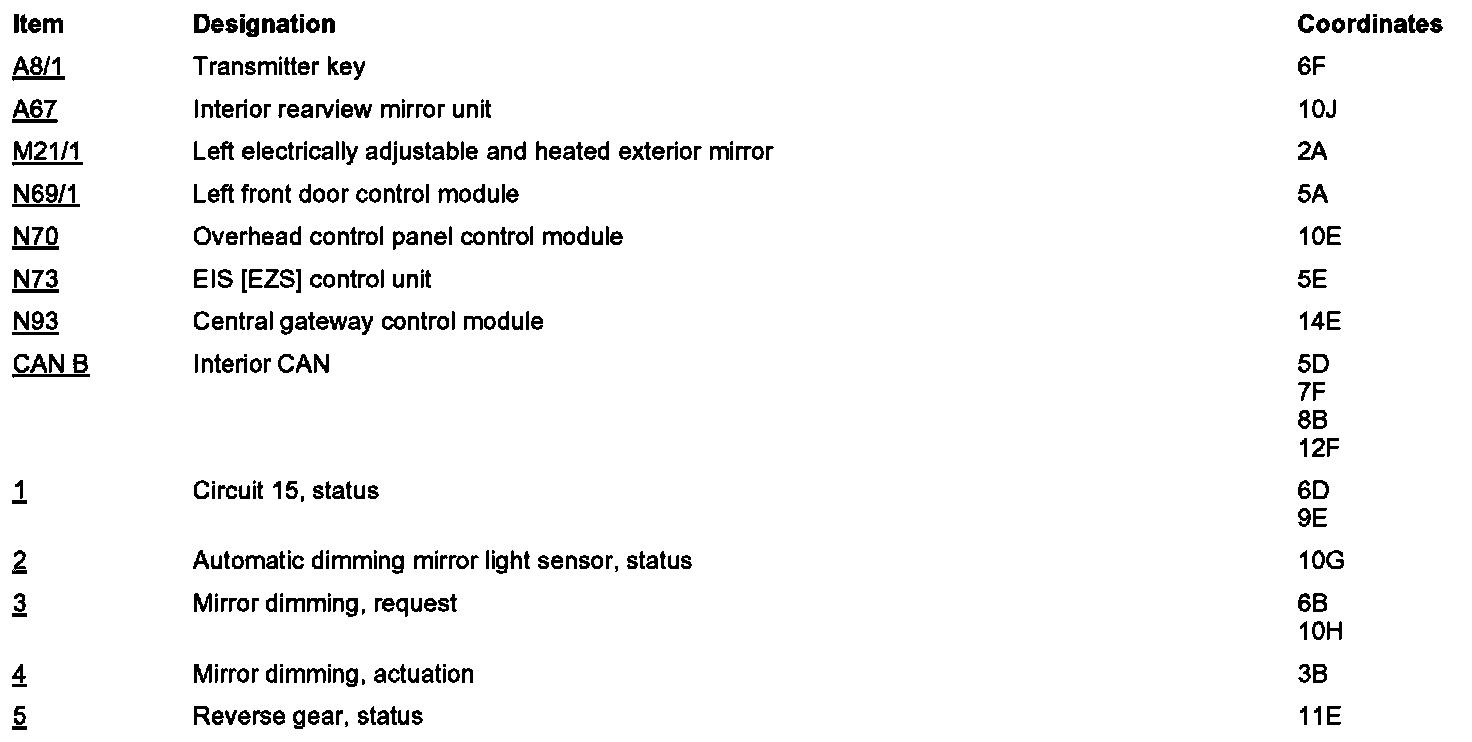

PE88.79-U-2056RAA Electrical Function Schematic For Automatic Dimming Mirror

PE88.79-U-2056RAA Electrical Function Schematic For Automatic Dimming Mirror
- with CODE (249) Automatically dimming inside rearview mirror and outside mirror (driver)
- as of model year 09










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
