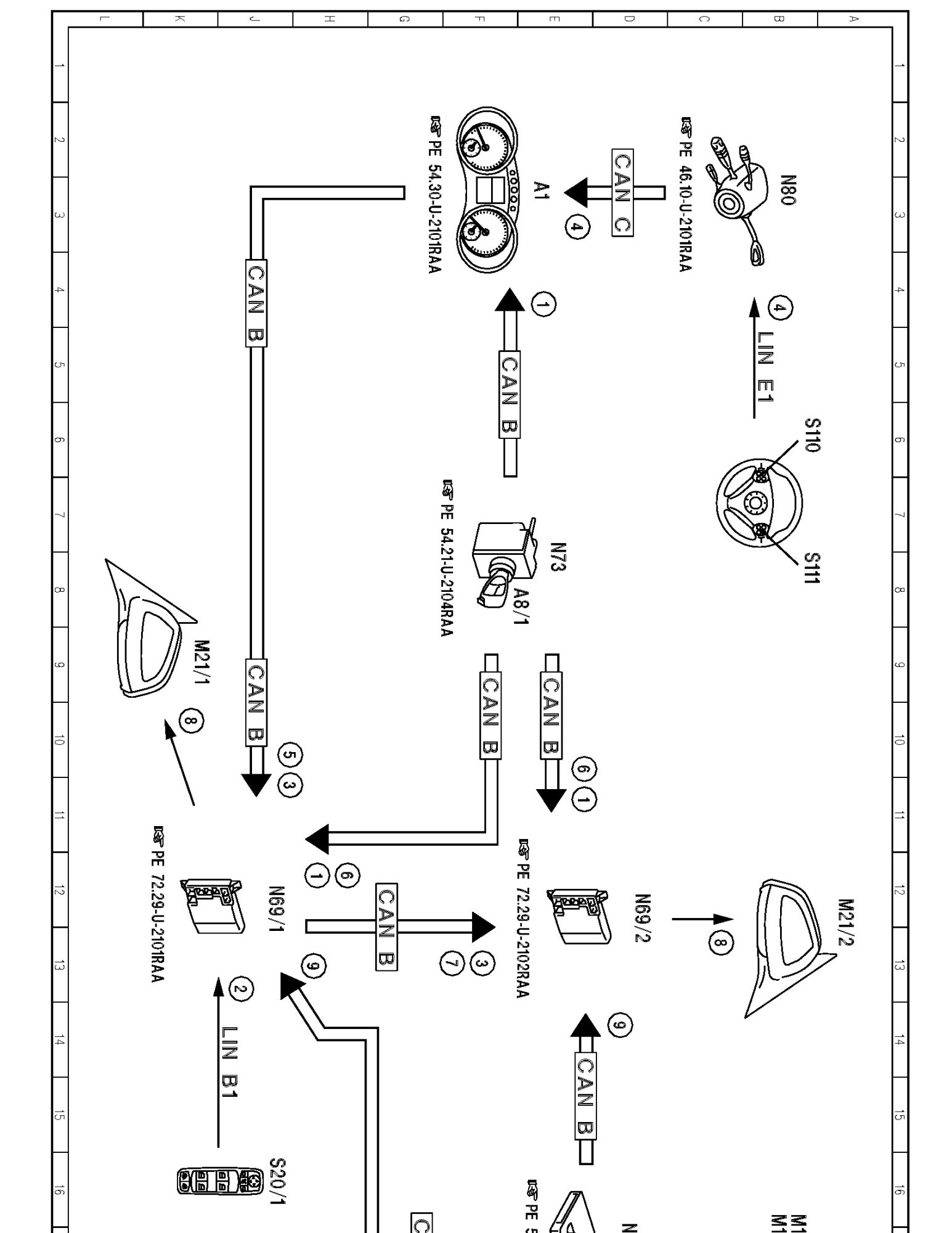

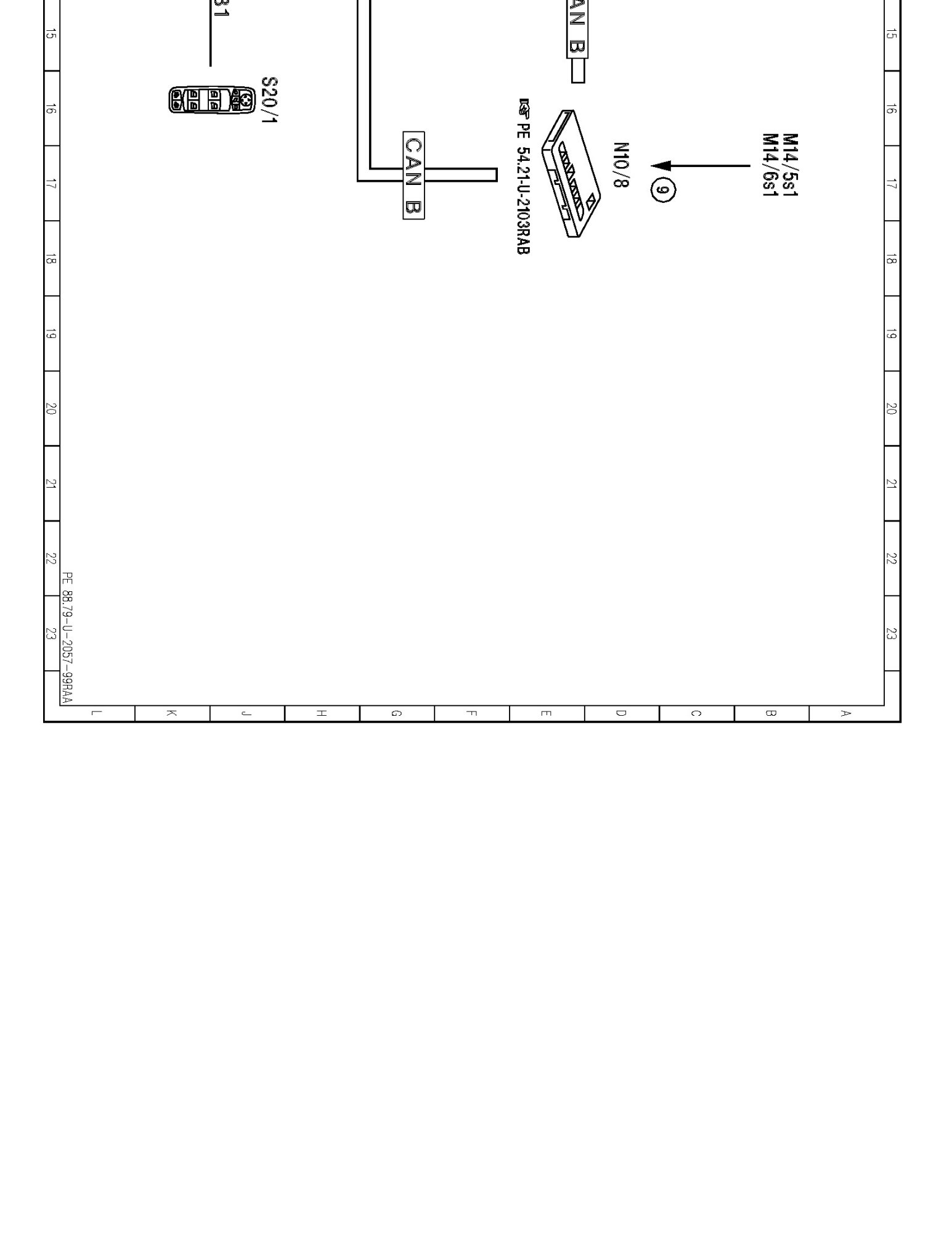

PE88.79-U-2057RAA Electrical Function Schematic For Folding Outside Mirrors

PE88.79-U-2057RAA Electrical Function Schematic For Folding Outside Mirrors
- with CODE (500) Folding left/right outside mirrors
- as of model year 09

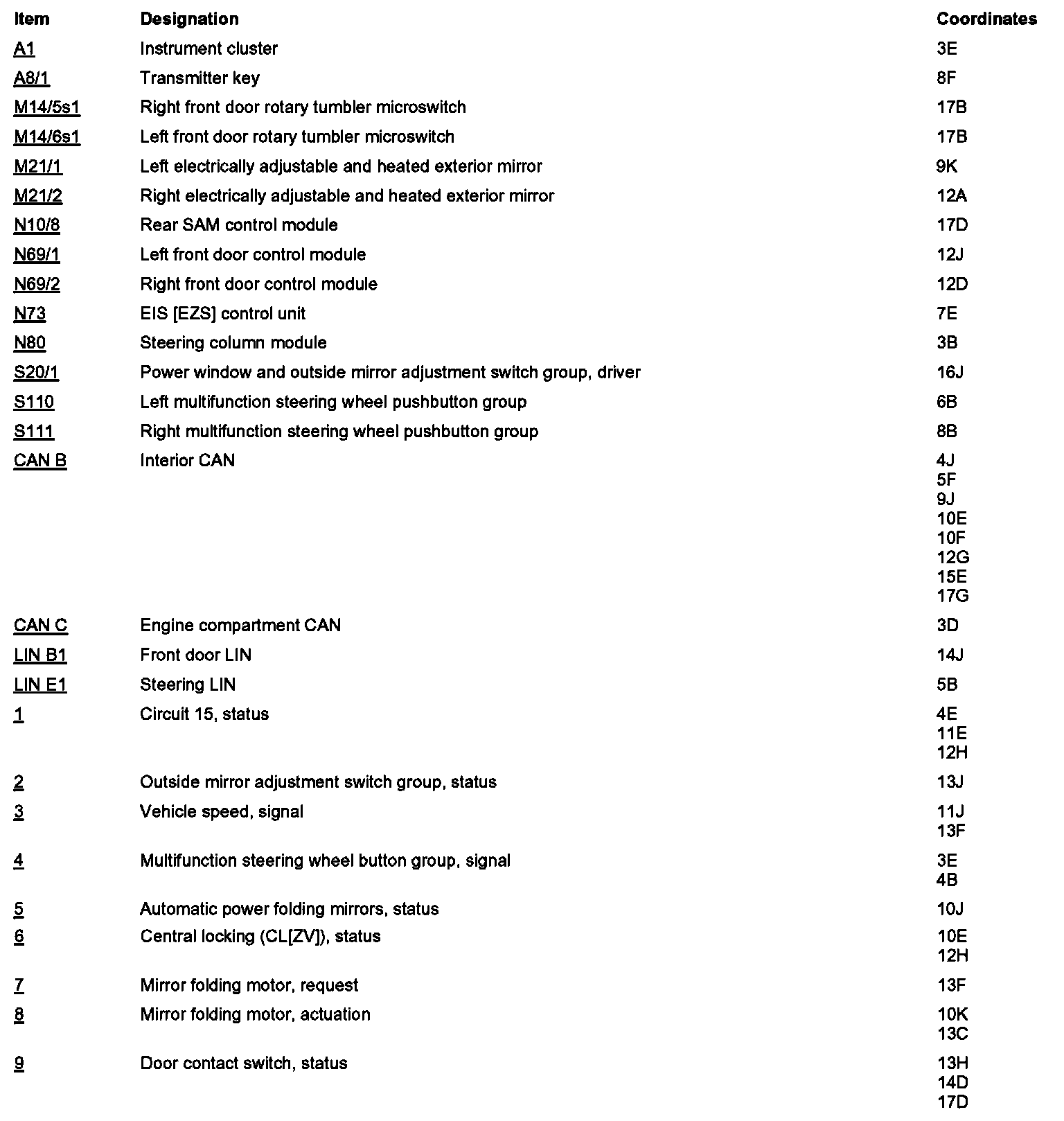

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
