Splash Guard: Service and Repair

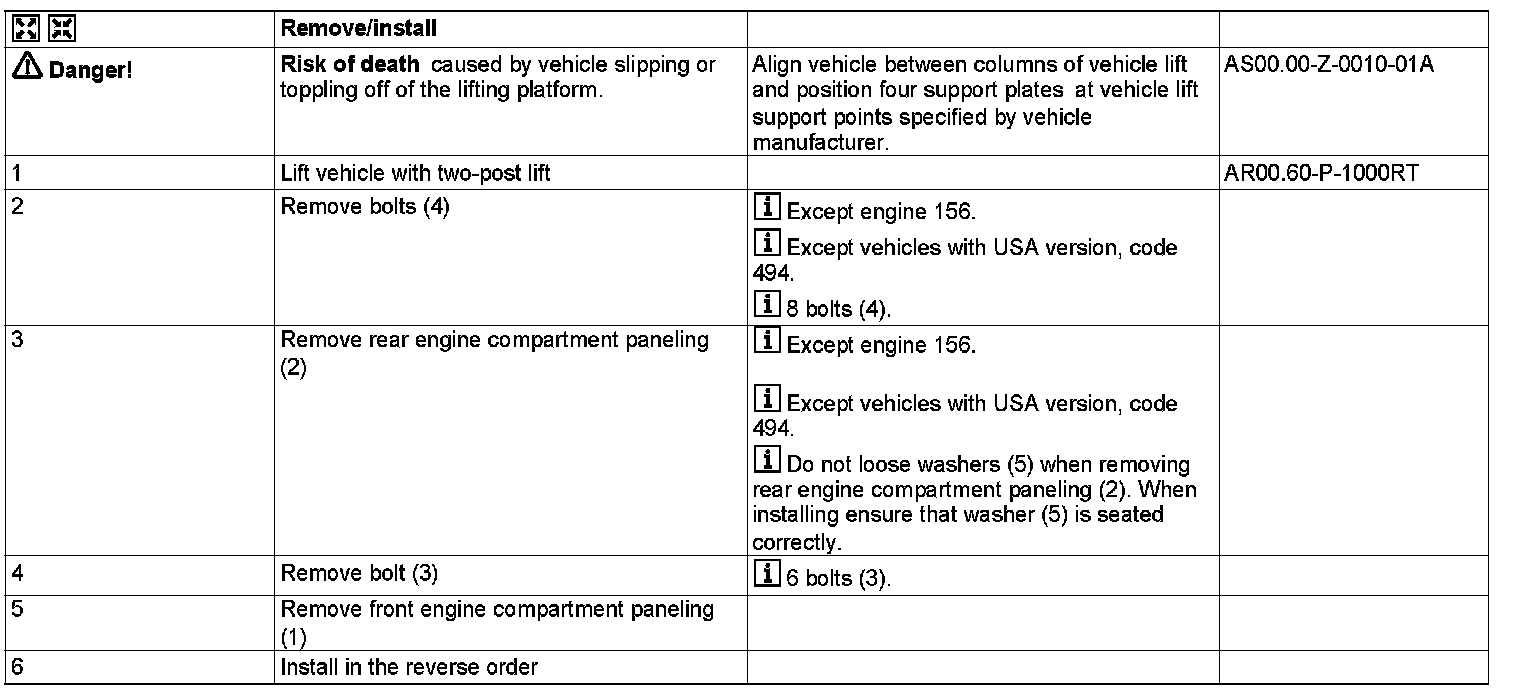

Remove/Install Bottom Engine Compartment Paneling

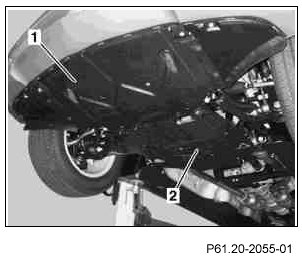

Shown on vehicle without USA version, code 494 and engine 156

1 Front engine compartment paneling
2 Rear engine compartment paneling

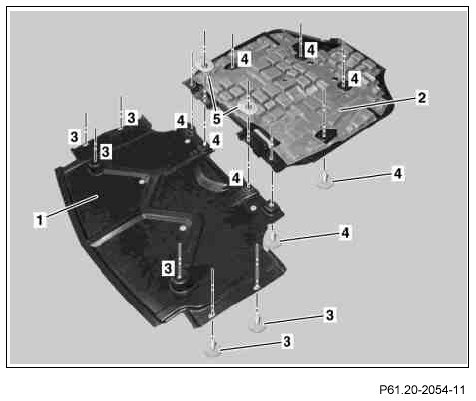

Shown On Underfloor Paneling On Vehicle Without USA Version, Code 494 And Engine 156

1 Front engine compartment paneling
2 Rear engine compartment paneling
3 Bolts
4 Bolts
5 Shims
