Television / Monitor

Wiring Diagram Of TV Tuner PE82.60-P-2220RAB
- except CODE (494) USA version
- with CODE (863) Digital/analog TV tuner
- Control unit A90/1
- as of model year 09

- with CODE (865) TV tuner Digital Japan
- Control unit A90/3
- as of model year 09

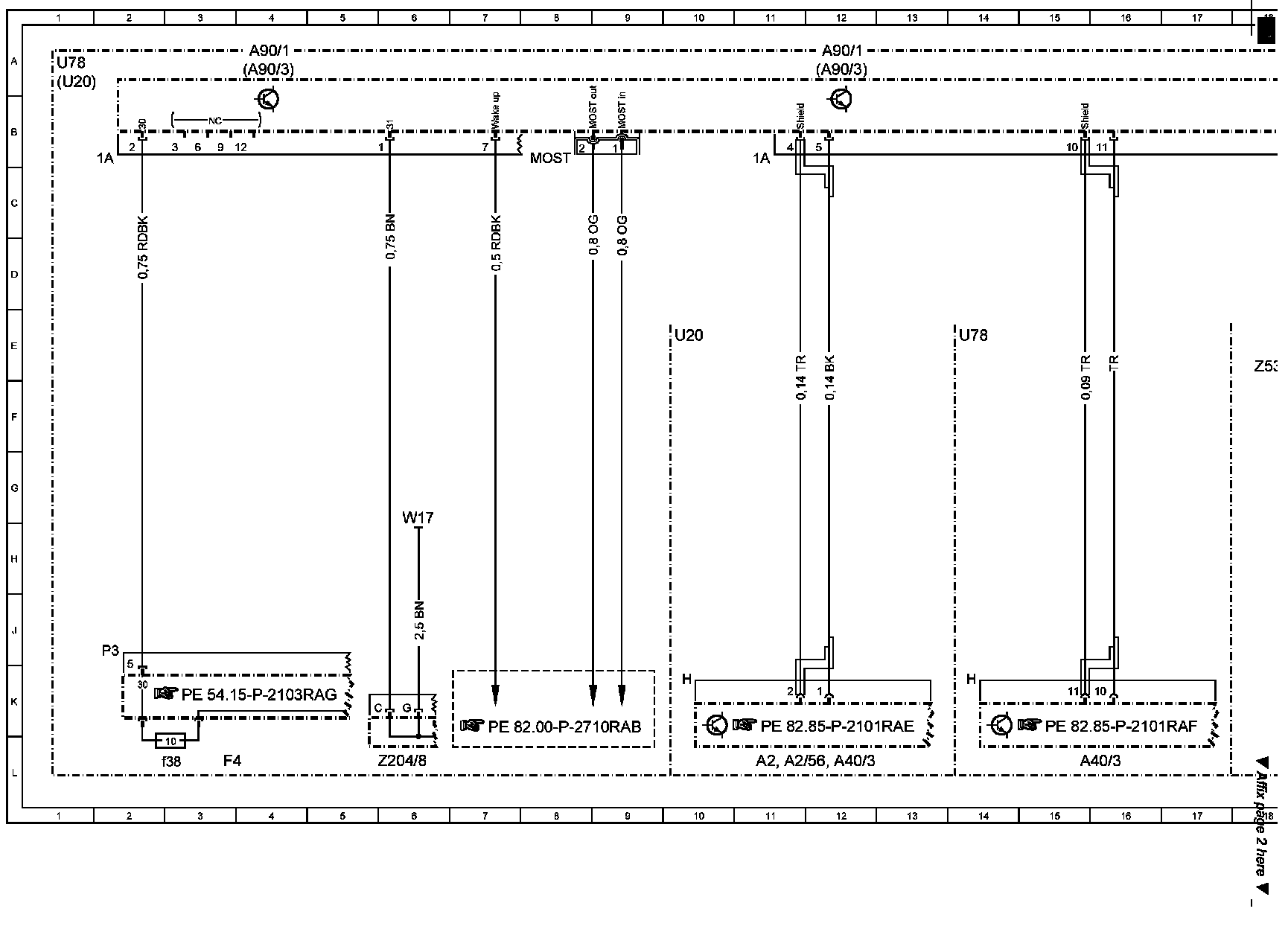

Wiring Diagram (Part 1):

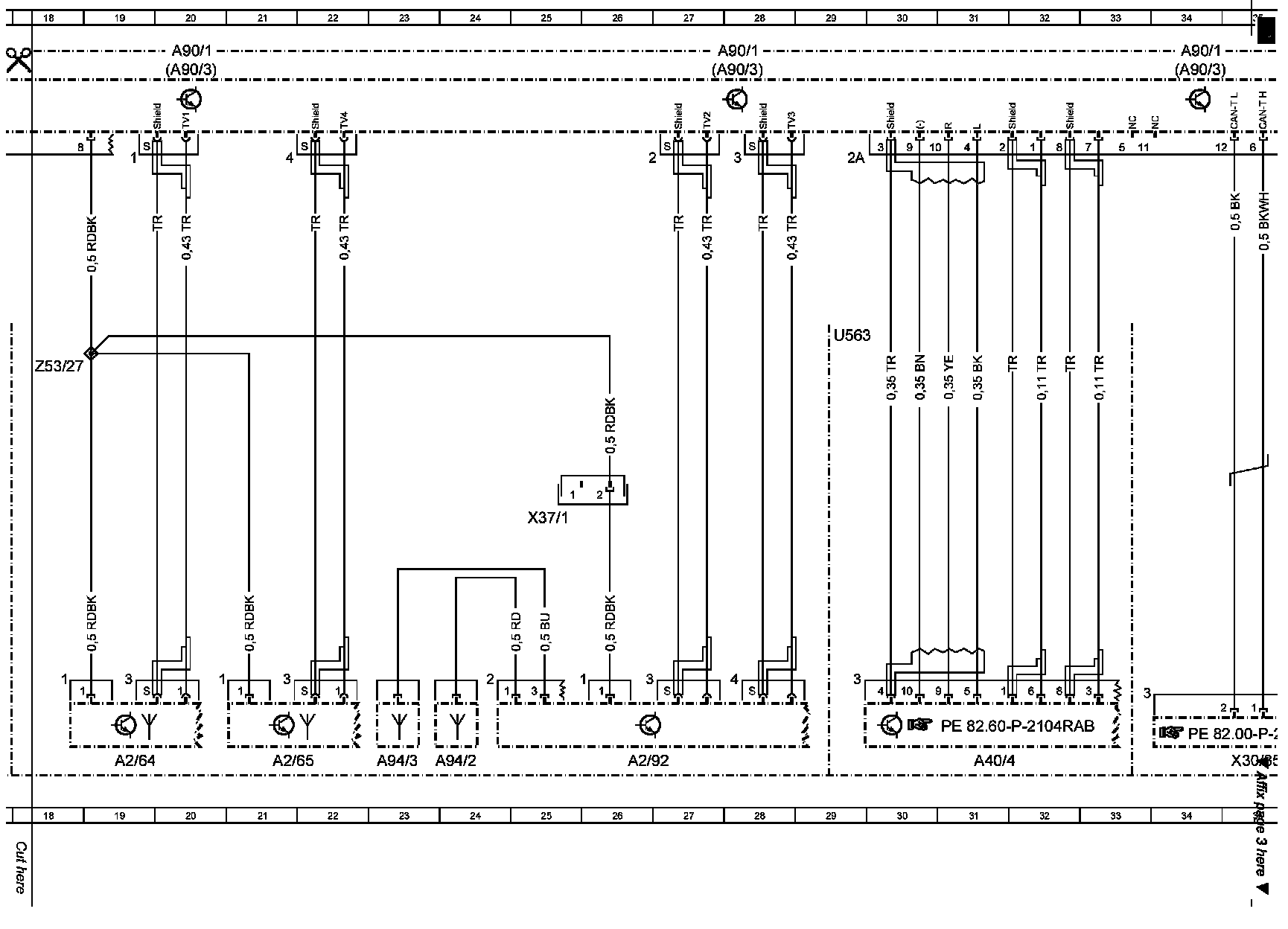

Wiring Diagram (Part 2):

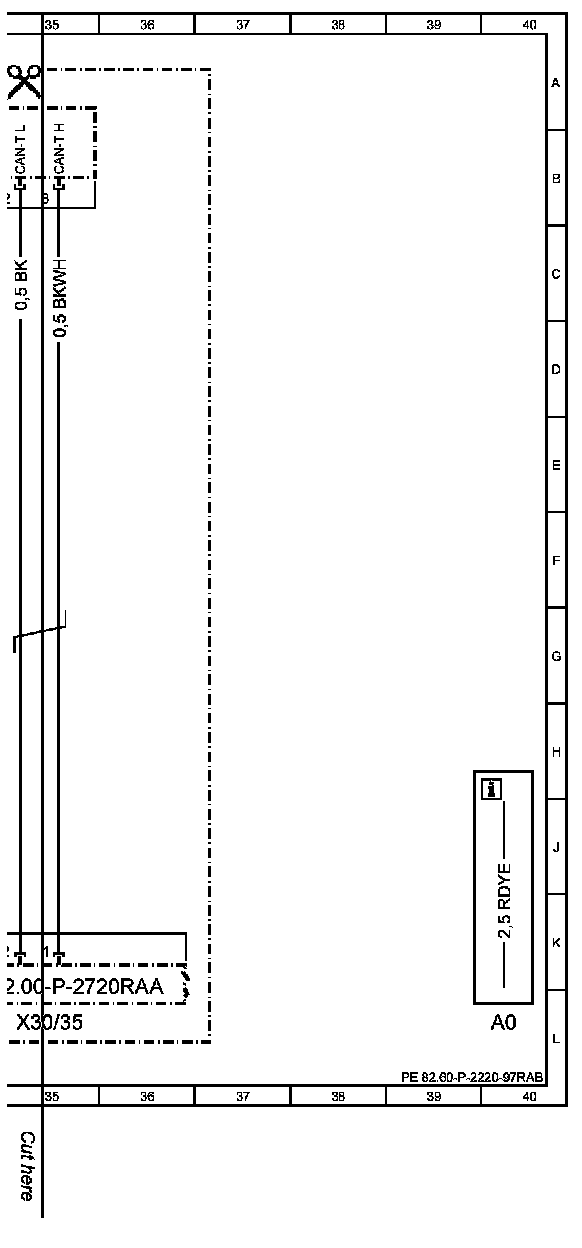

Wiring Diagram (Part 3):

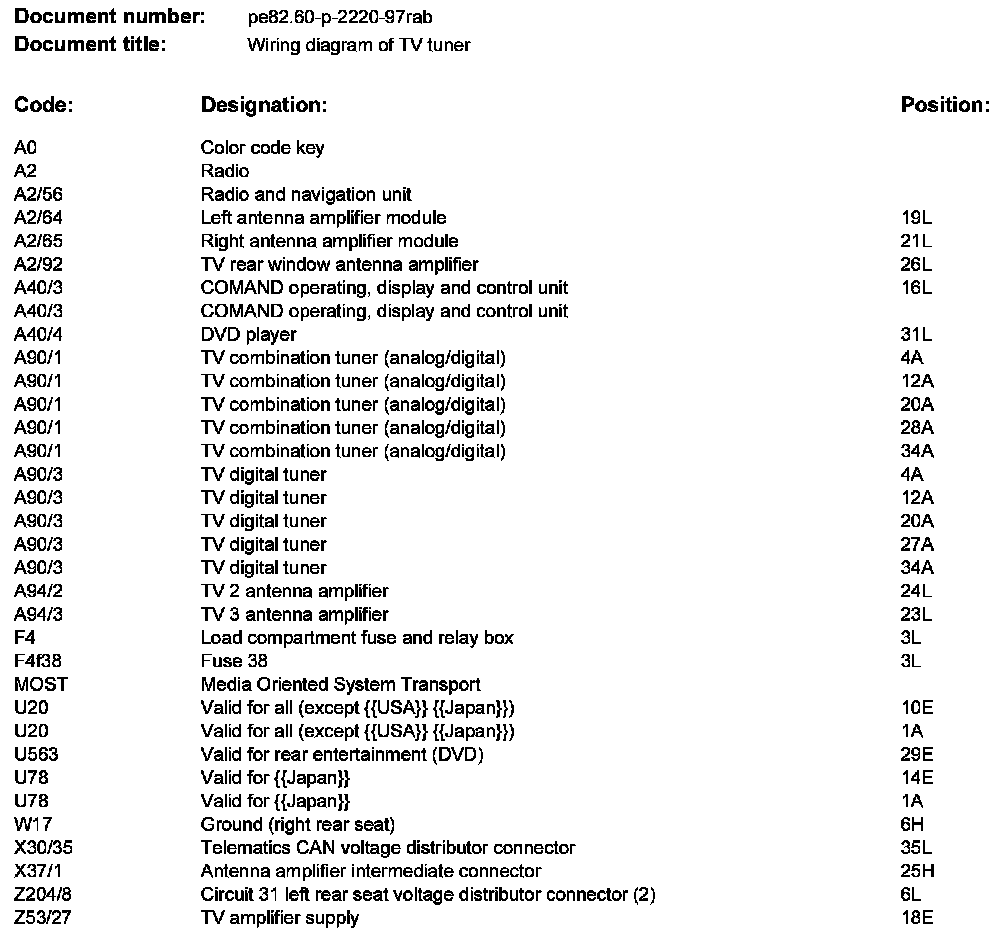

Component Description/Coordinates, A0 To Z53/27:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
