AR01.00-P-1300GZA Inspect Cylinders For Leaks
AR01.00-P-1300GZA Inspect Cylinders For Leaks
AR01.00-P-1300GZA Inspecting cylinders for leaks

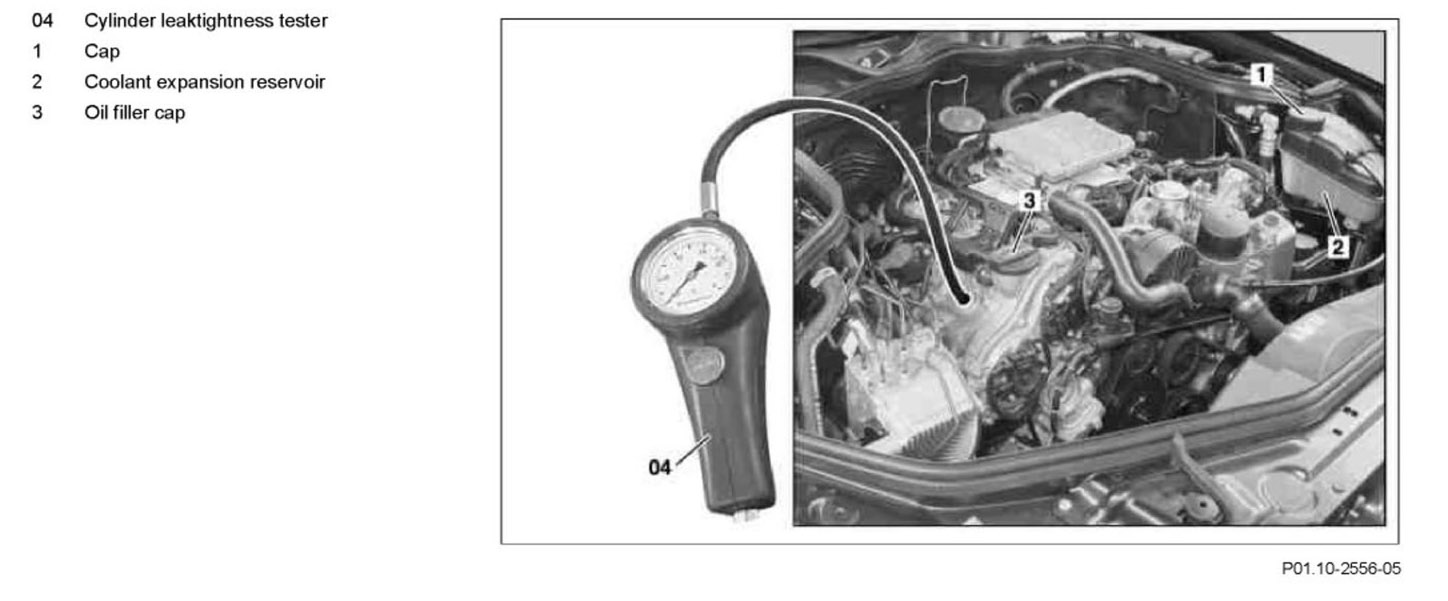

Component Identification:

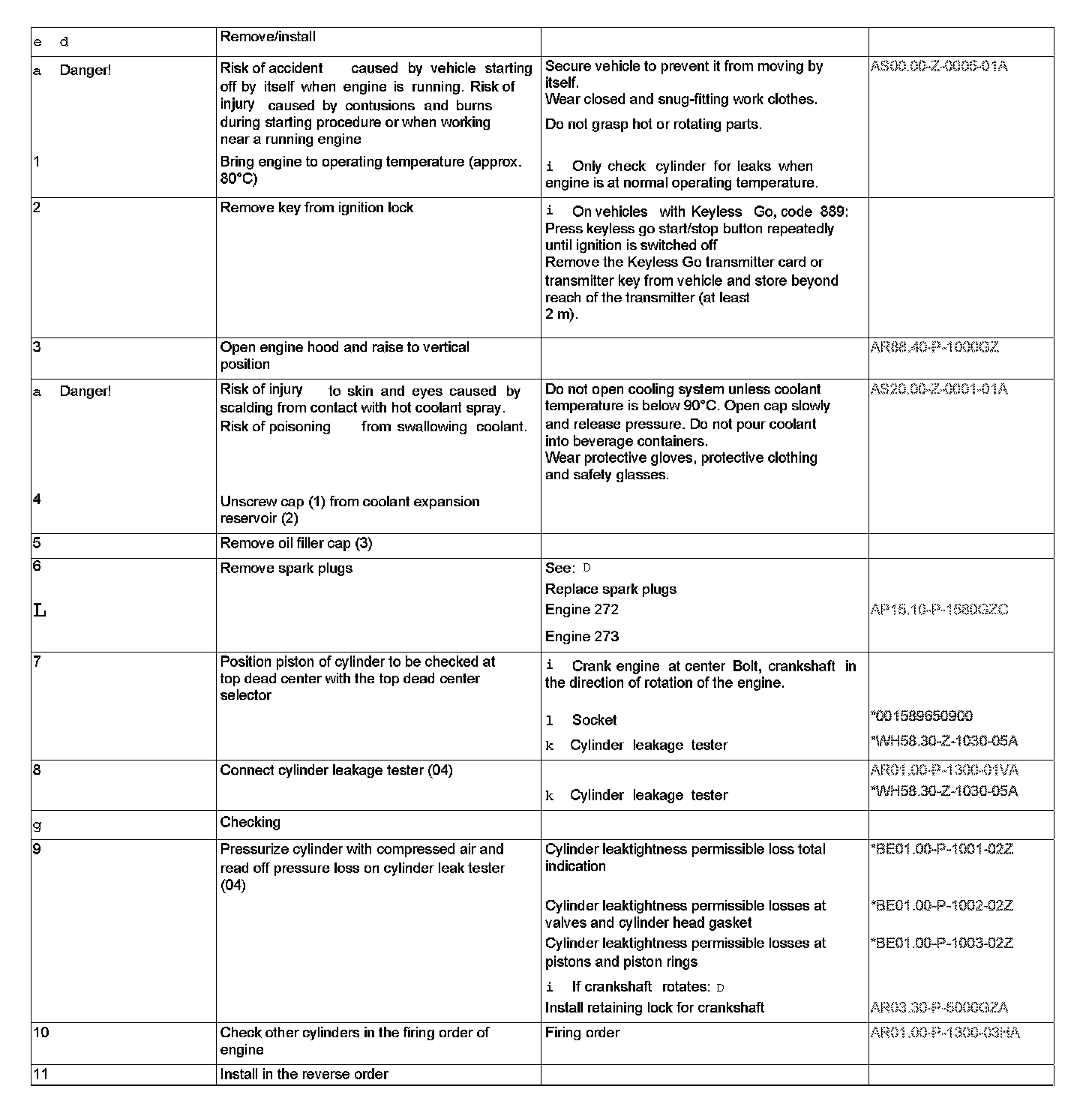

Steps 1 - 11:

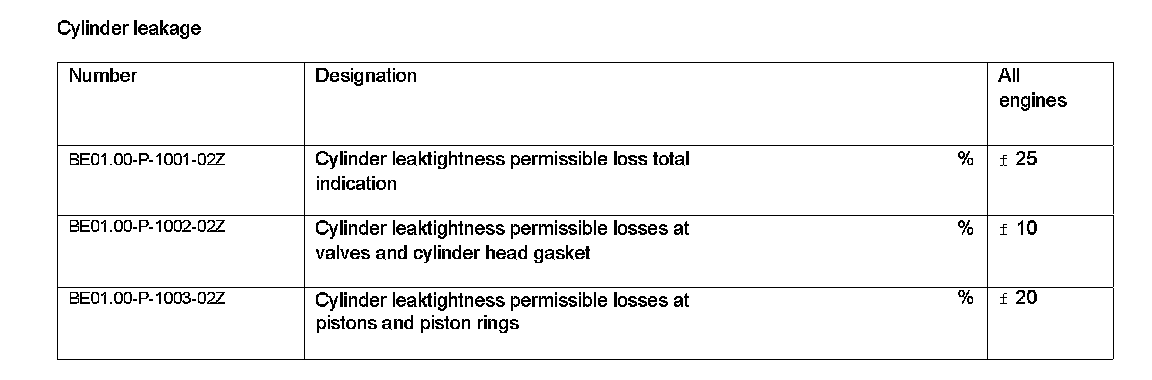

Cylinder leakage:

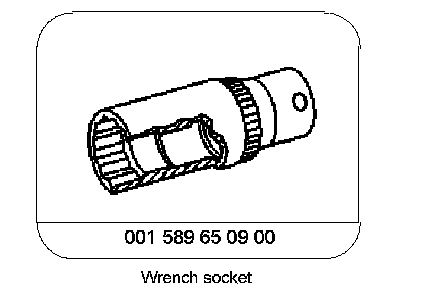

Special Tools:

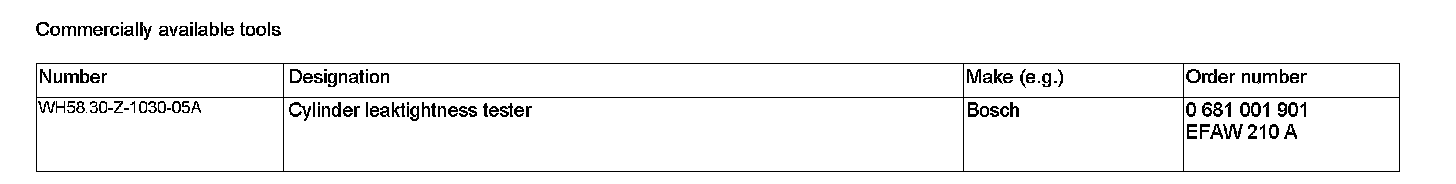

Commercially available tools:
