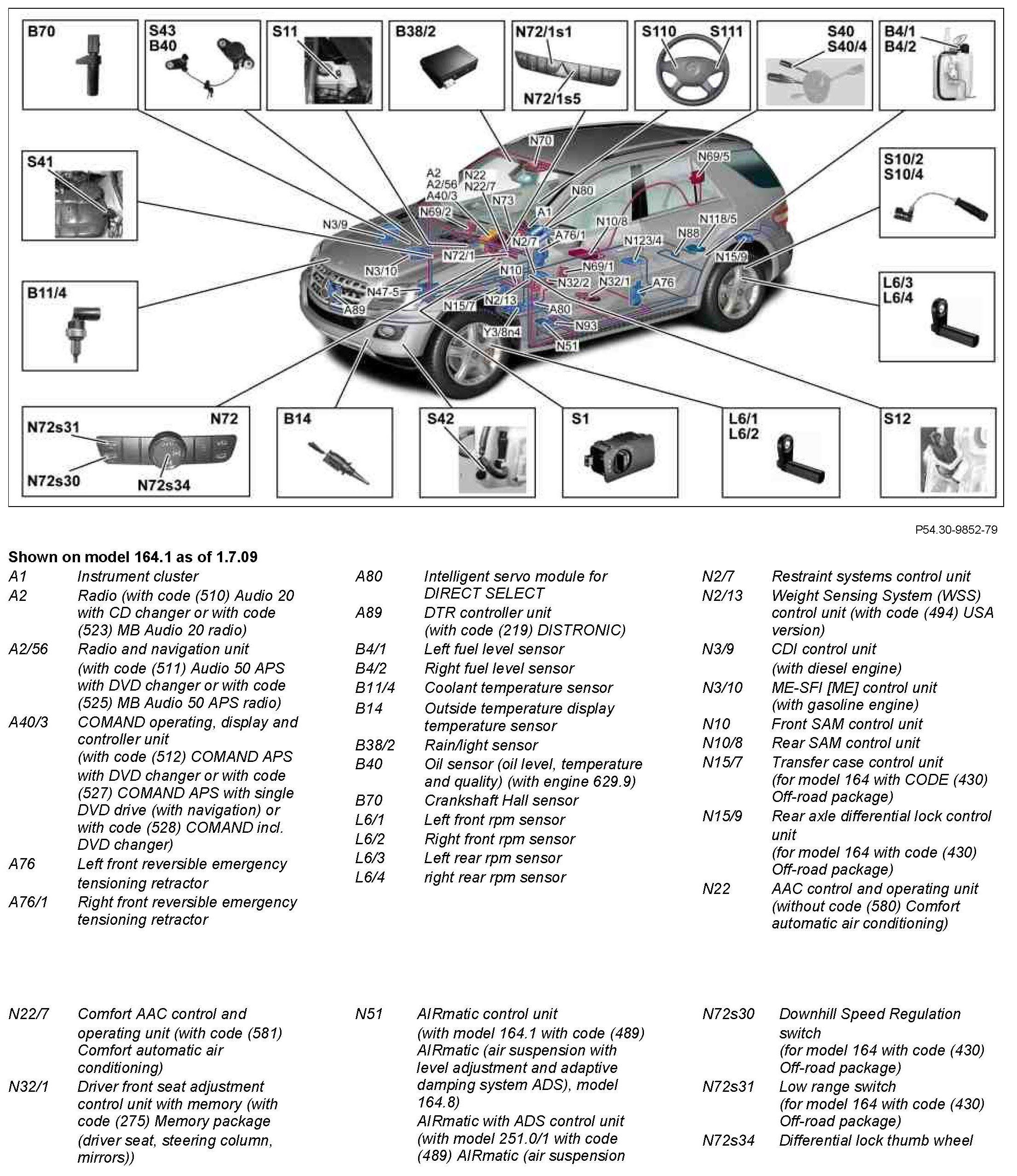

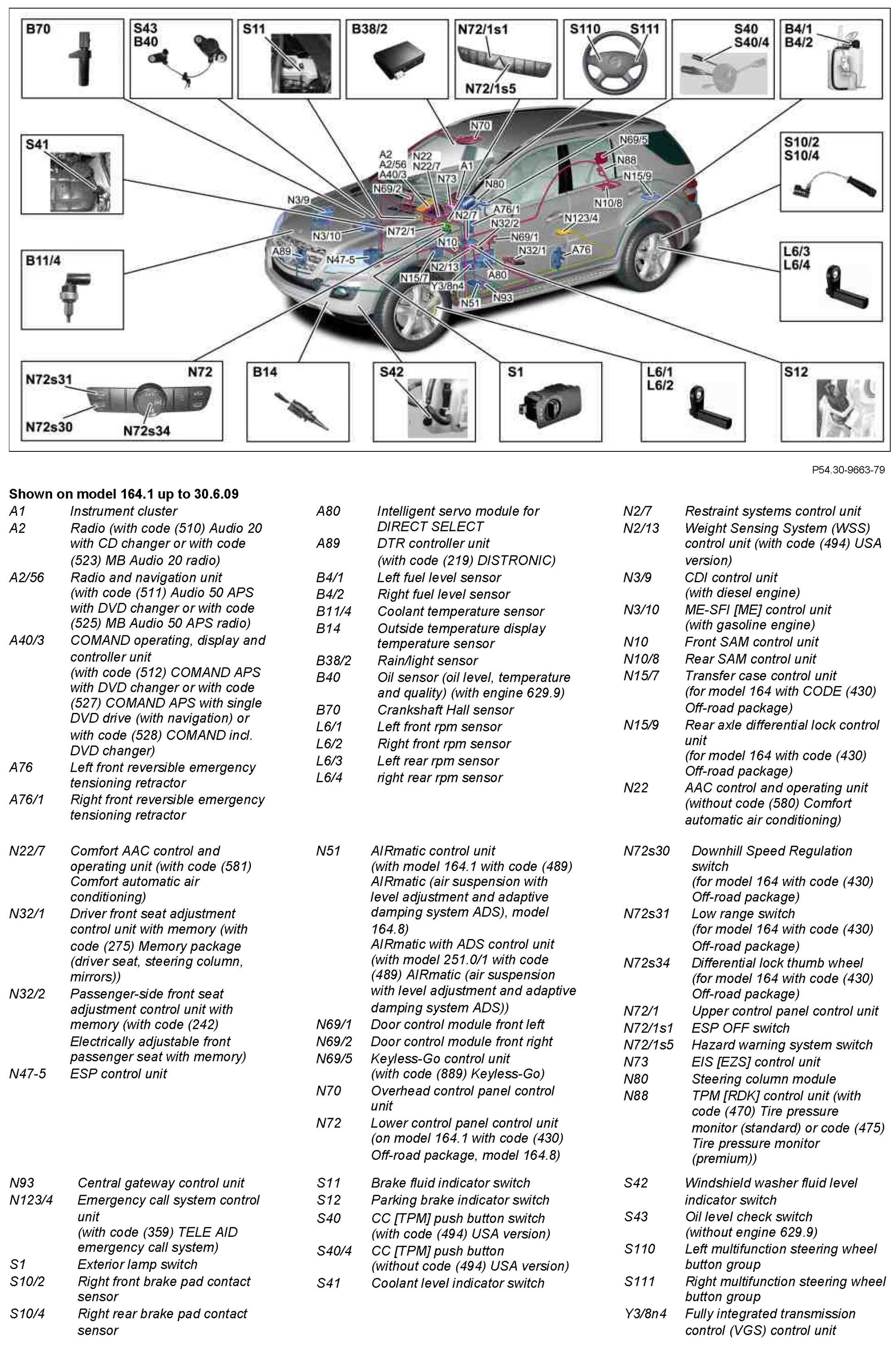

GF54.30-P-0002-04GM Instrument Cluster (KI), Location of Components



GF54.30-P-0002-04GM Instrument Cluster (KI), Location Of Components
- as of model year 09

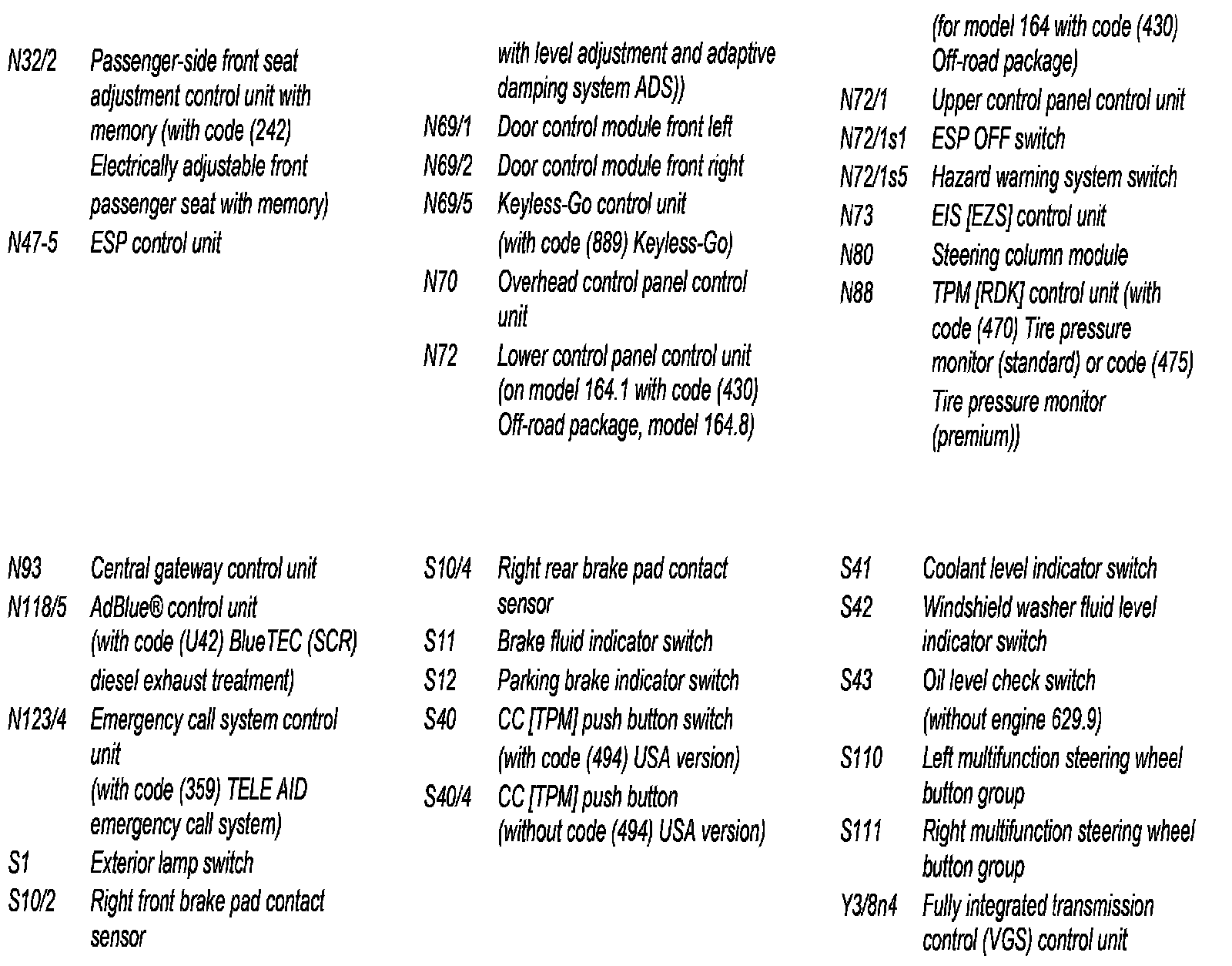

Component Identification:





Component Identification:
