Fuse: Locations

Fuse Box Location


Fuse Box in Engine Compartment






The main fuse box is located on the passenger side of the engine compartment.


Fuse Box in Cargo Compartment






The fuse box is located under the cargo compartment cover on the right-hand side of the spare wheel well.

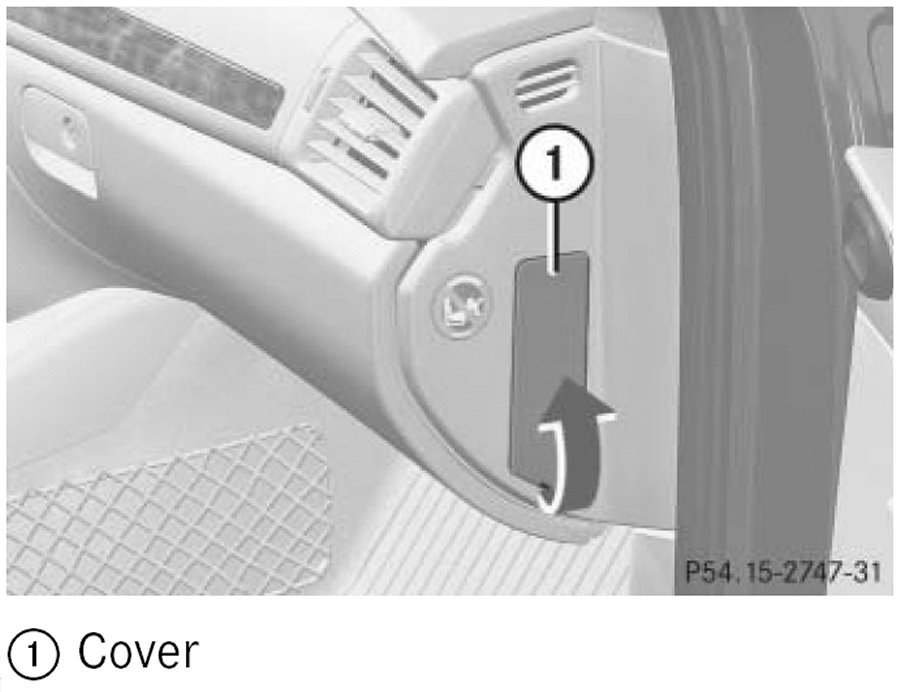

Fuse Box in Passenger Compartment






The fuse box is located behind a cover in the dashboard on the passenger side.
