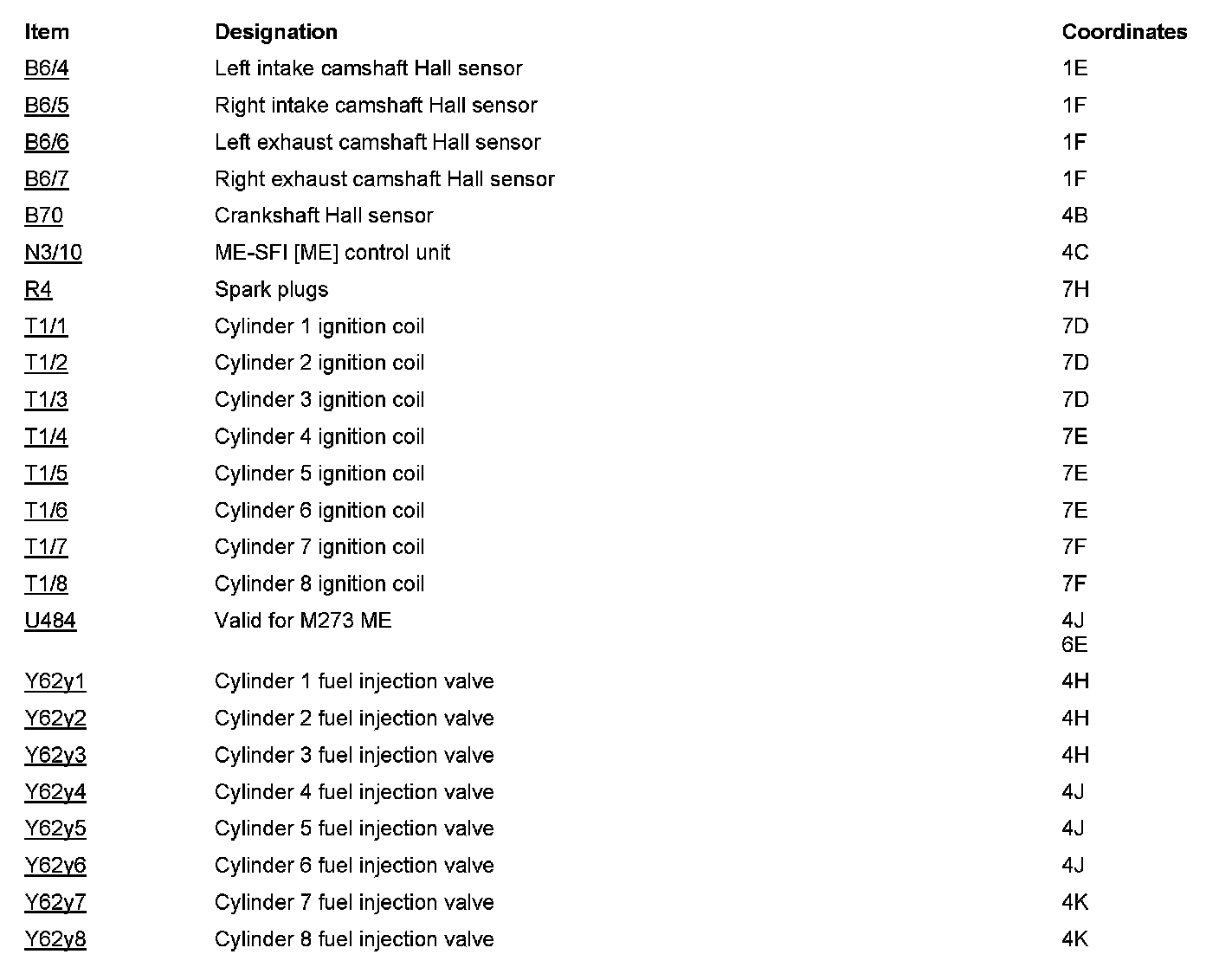

PE07.61-U-2771RAA Electrical Function Diagram For Synchronization Of ME Injection And Firing Order

PE07.61-U-2771RAA Electrical Function Diagram For Synchronization Of ME Injection And Firing Order

ENGINE 272, 273 in MODEL 251
- as of Model Year 2009










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Components
