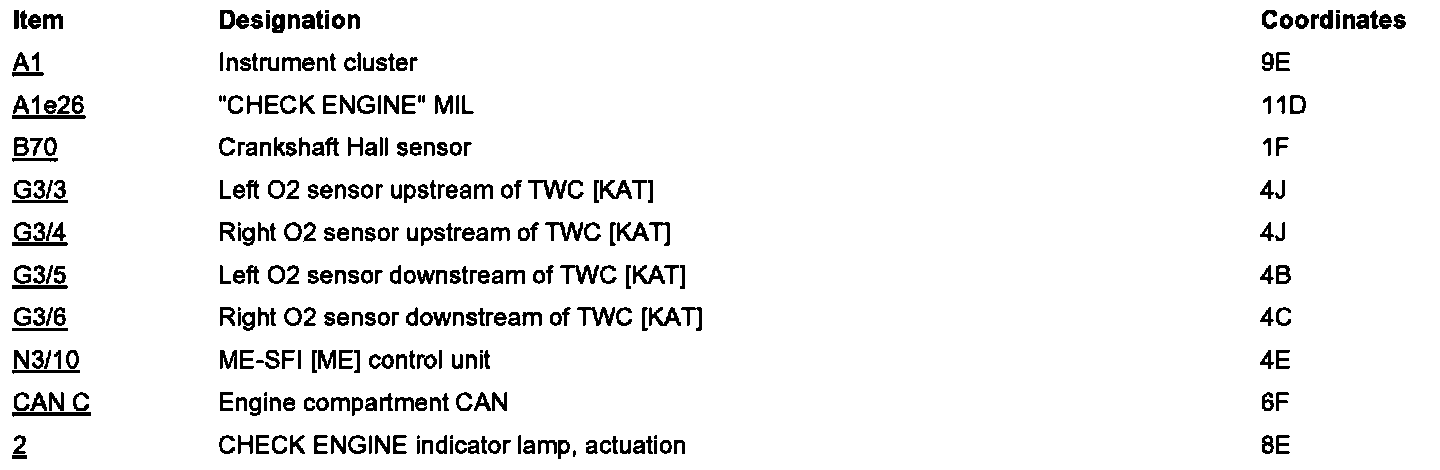

PE49.10-U-2050RAA Electrical Function Diagram For Catalytic Converter Efficiency Monitoring

PE49.10-U-2050RAA Electrical Function Diagram For Catalytic Converter Efficiency Monitoring
- as of model year 09










Component Locations: Component Location photographs can be found via their component names at the vehicle level. A - Z Component List
