Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz Truck
>>
2009
>>
R 350 4MATIC (251.165) V6-3.5L (272.967)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>

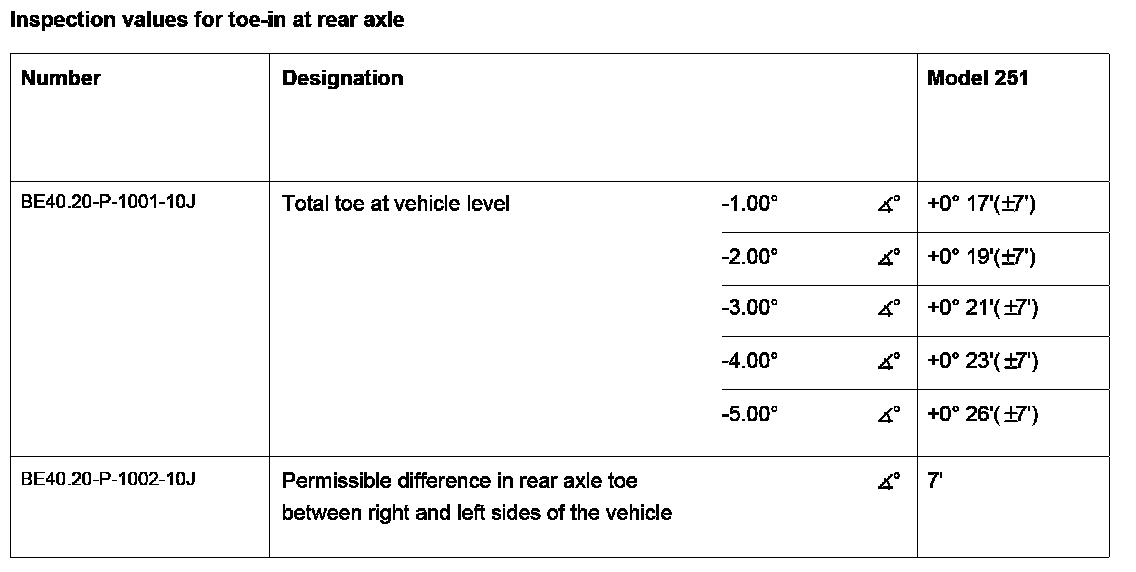

BE40.20-P-1001-10J Inspection Values For Toe-In at Rear Axle
BE40.20-P-1001-10J Inspection Values For Toe-In at Rear Axle
BE40.20-P-1001-10J Inspection Values For Toe-In at Rear Axle
Inspection Values:
