Grille: Service and Repair



AR88.40-P-4001GZA Remove/Install Radiator Grille
- as of model year 09

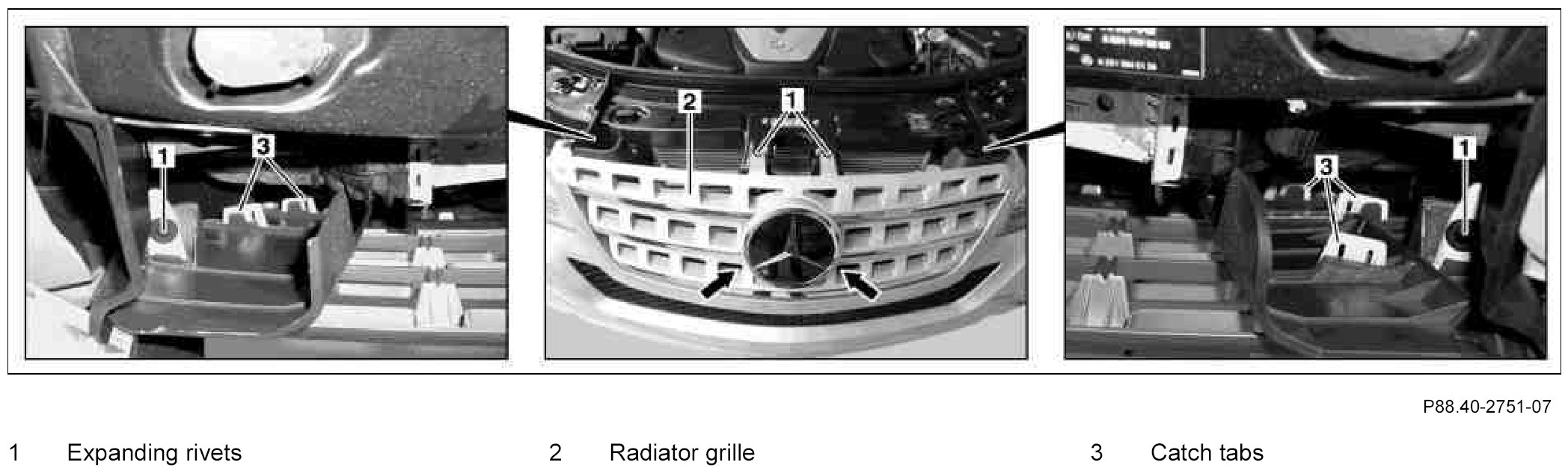

Component Identification:

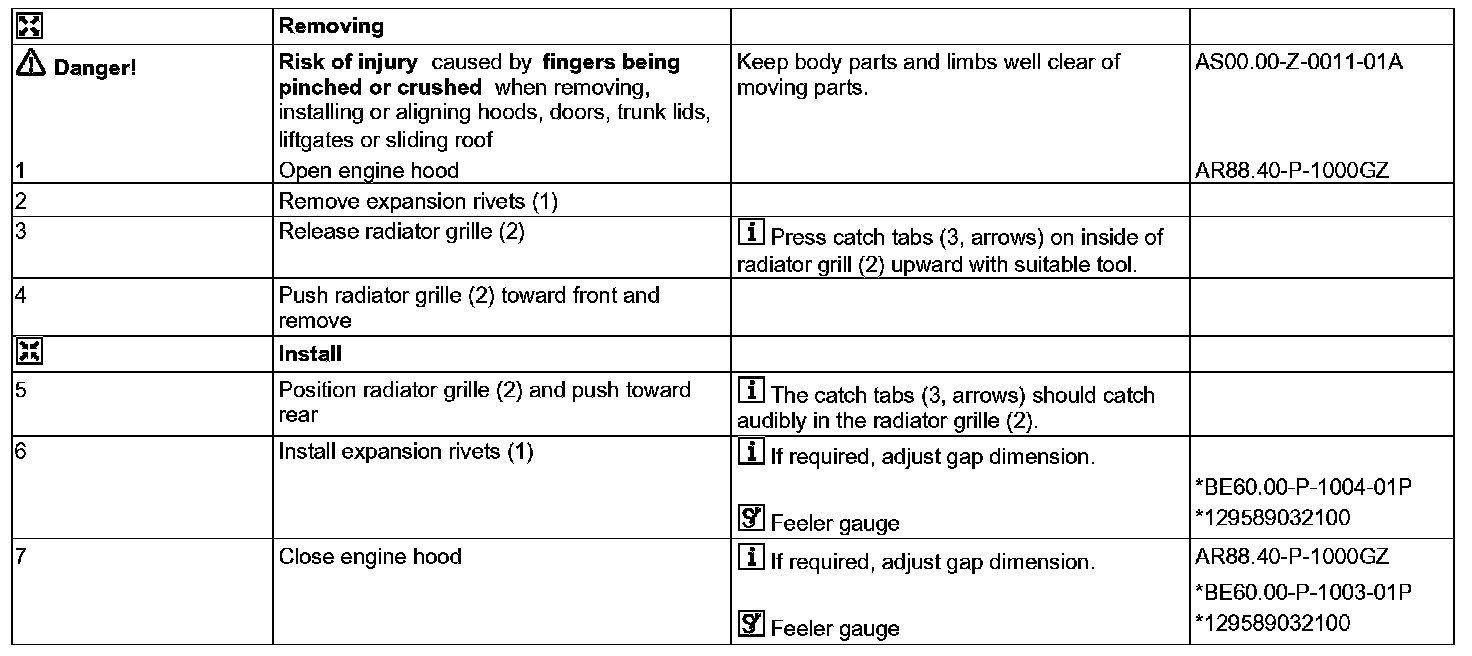

Steps 1 - 7:

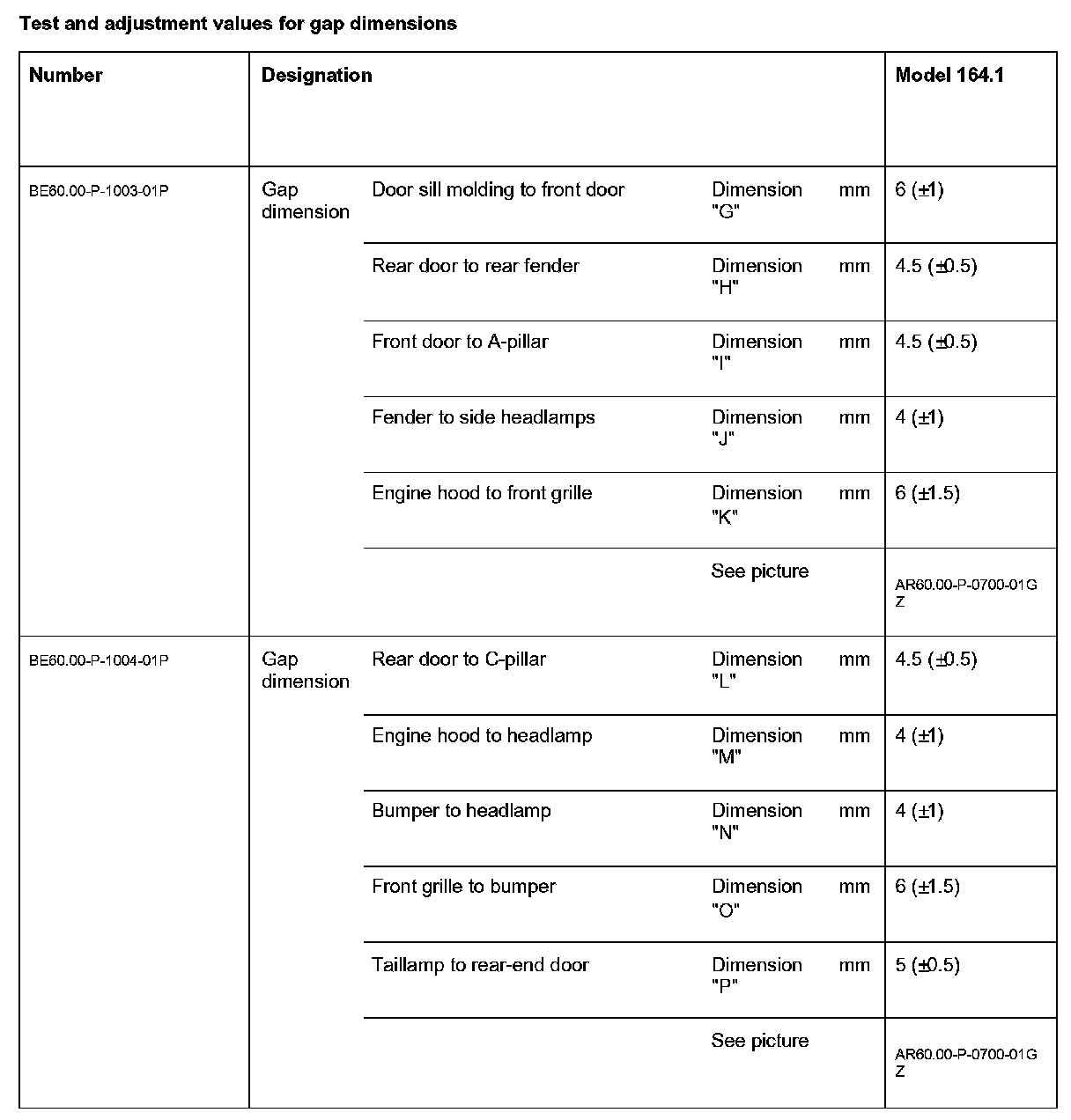

Test And Adjustment Values For Gap Dimensions:




Special Tools:
