Condenser HVAC: Service and Repair

AR83.30-P-6540GZ Install/Remove Condenser
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner

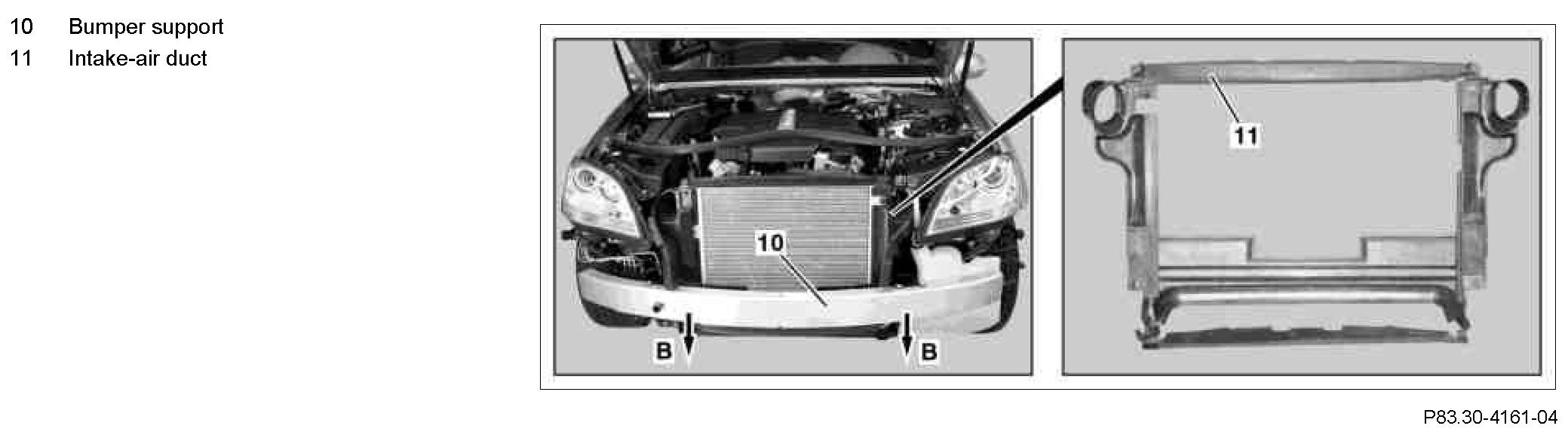

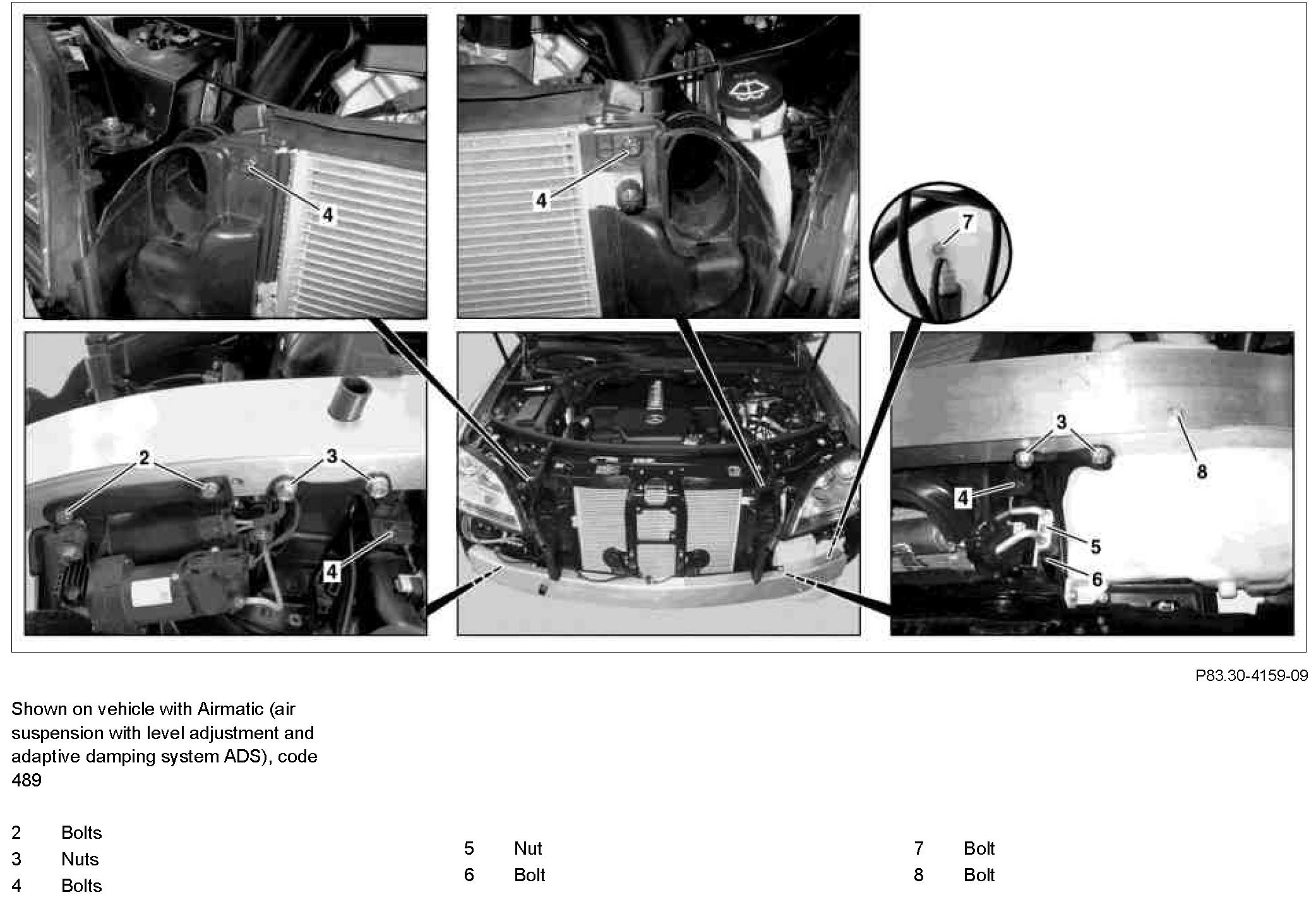

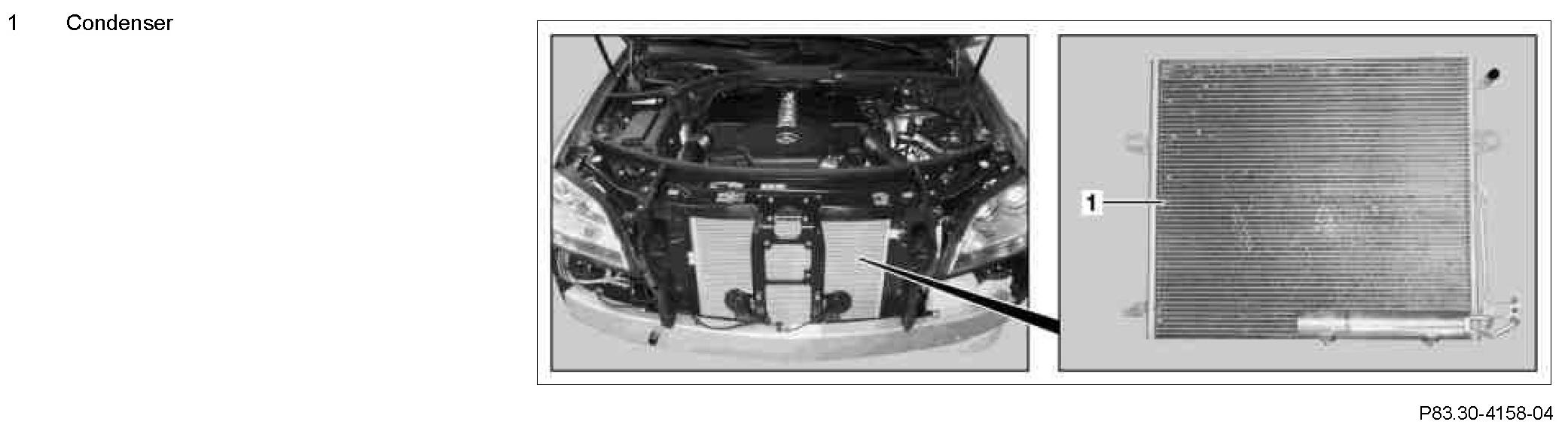

Component Identification:

Component Identification:

Component Identification:

Component Identification:

Component Identification:

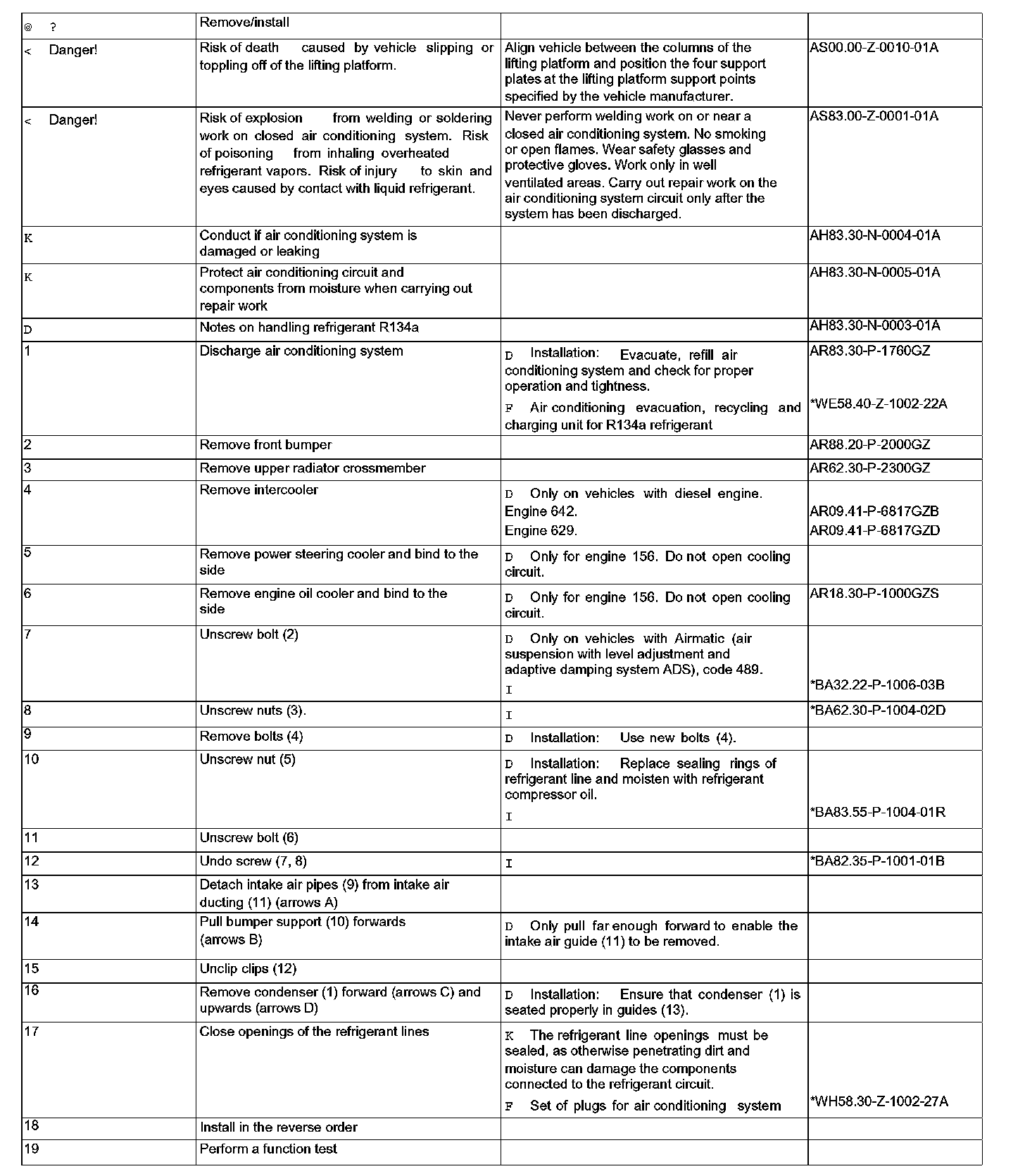

Steps 1 - 19:

Air Suspension:

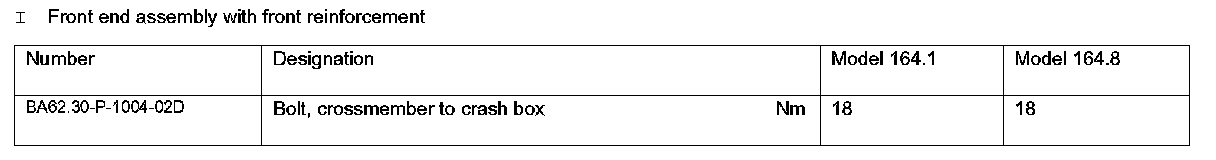

Front End Assembly With Front Reinforcement:

Windshield Washer System:

Refrigerant Compressor:

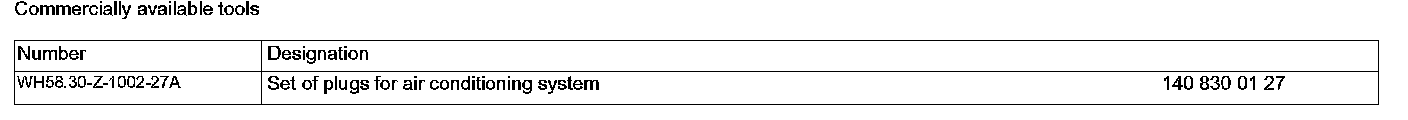

Commercially Available Tools:

Workshop Equipment:
