Receiver Dryer: Service and Repair
AR83.30-P-6520GZ Remove/Install Fluid Reservoir
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning
- with CODE (582) Rear air conditioner
Component Identification:
Component Identification:

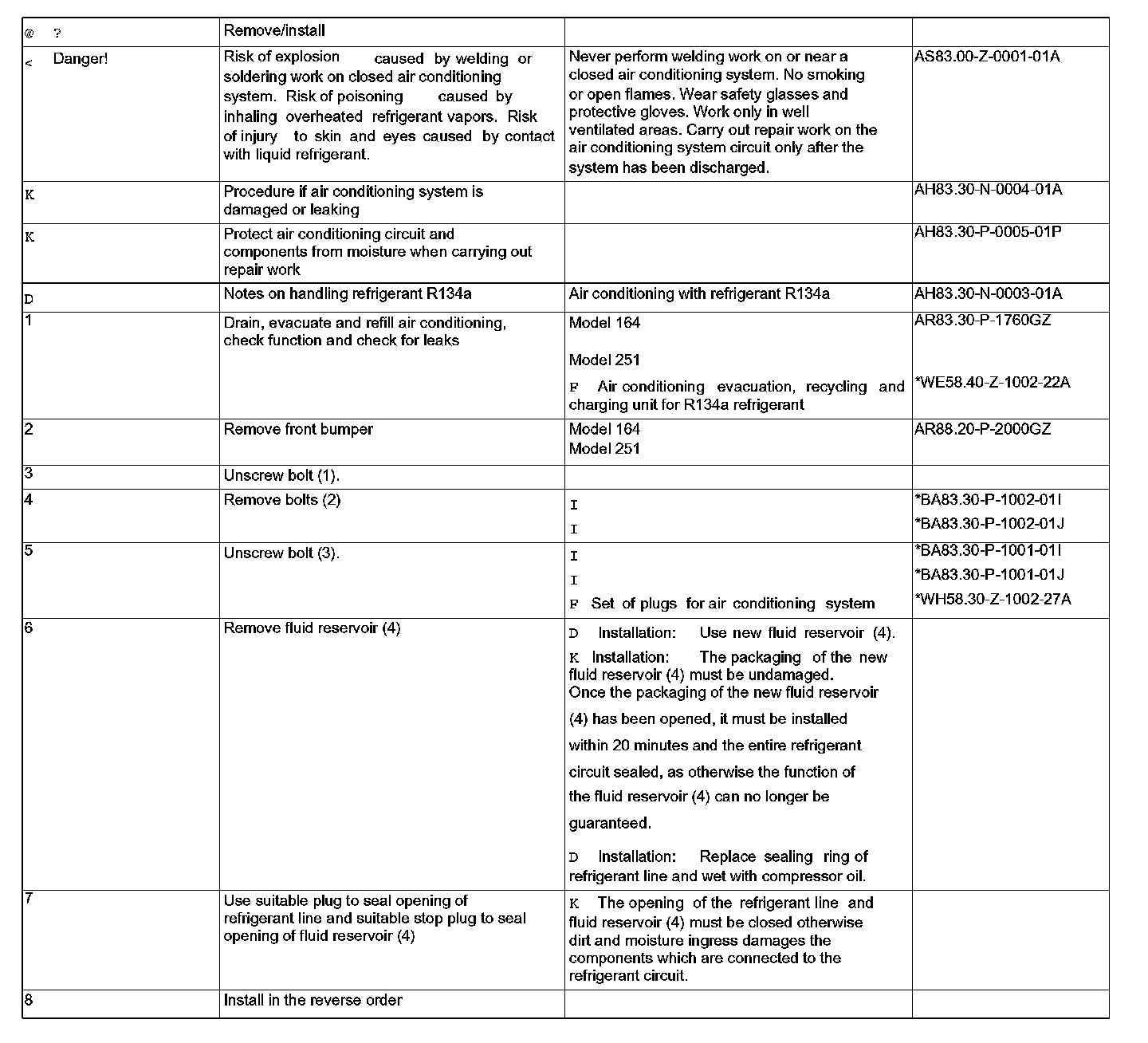

Steps 1 - 8:

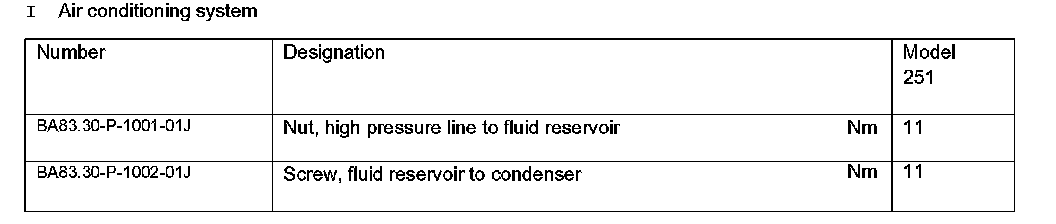

Air Conditioning System:
Air Conditioning System:
Commercially Available Tools:
Workshop Equipment:
