Mercedes Benz Truck
>>
2010
>>
ML 350 BLUETEC (164.125) V6-3.0L DSL Turbo (642.820)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Headlamp Washer Hose
>>
Service and Repair
Headlamp Washer Hose: Service and Repair
AR82.15-P-6201GZ Remove/Install
Washer Fluid
Hose Of Headlamp Cleaning System
- with CODE (600) Headlamp cleaning system

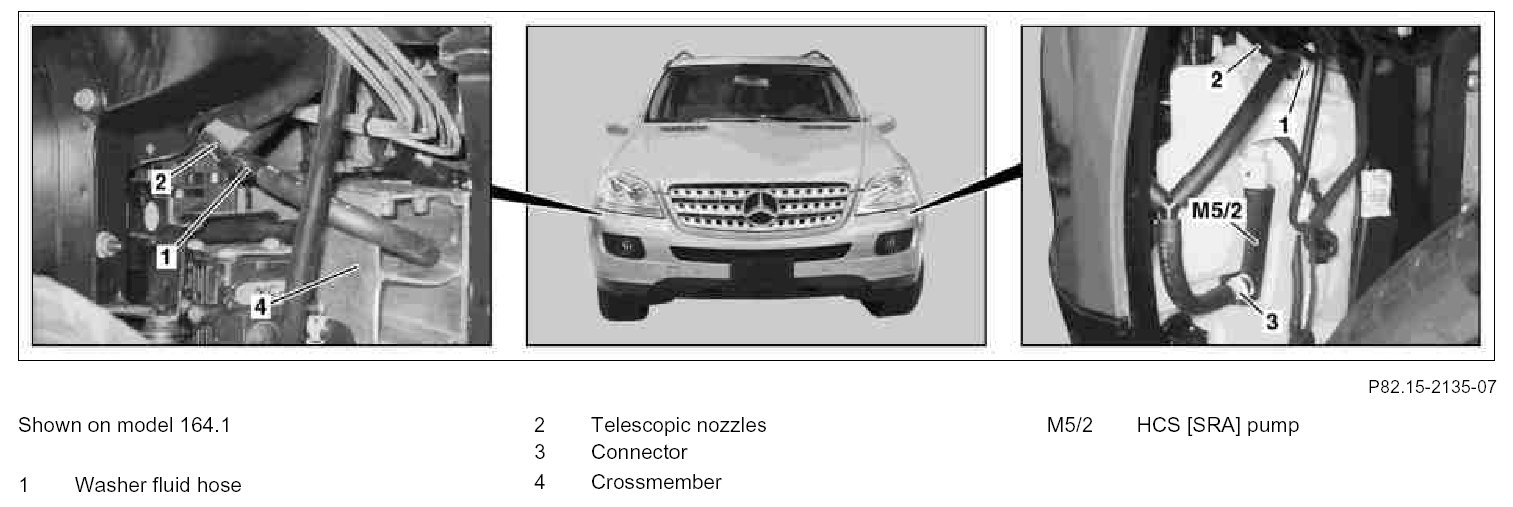

Component Identification:

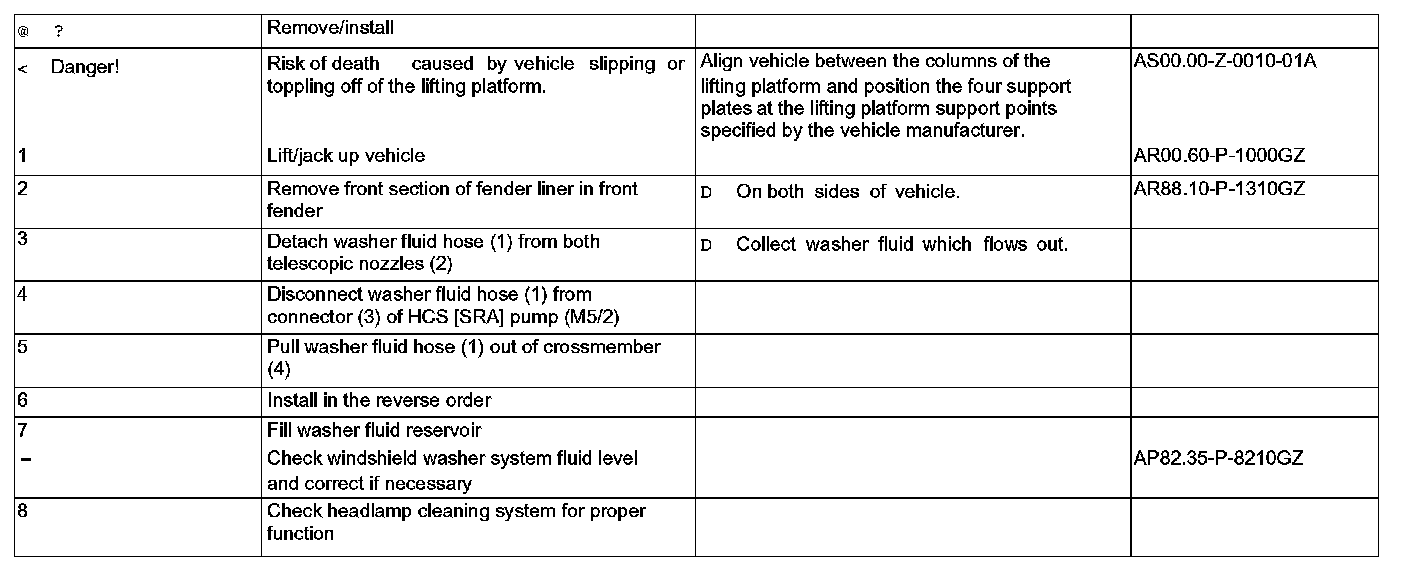

Steps 1 - 8:
