Headlamp Washer Pump: Service and Repair



AR82.35-P-6003GZ Remove/Install Headlamp Cleaning System Pump
- with CODE (600) Headlamp cleaning system

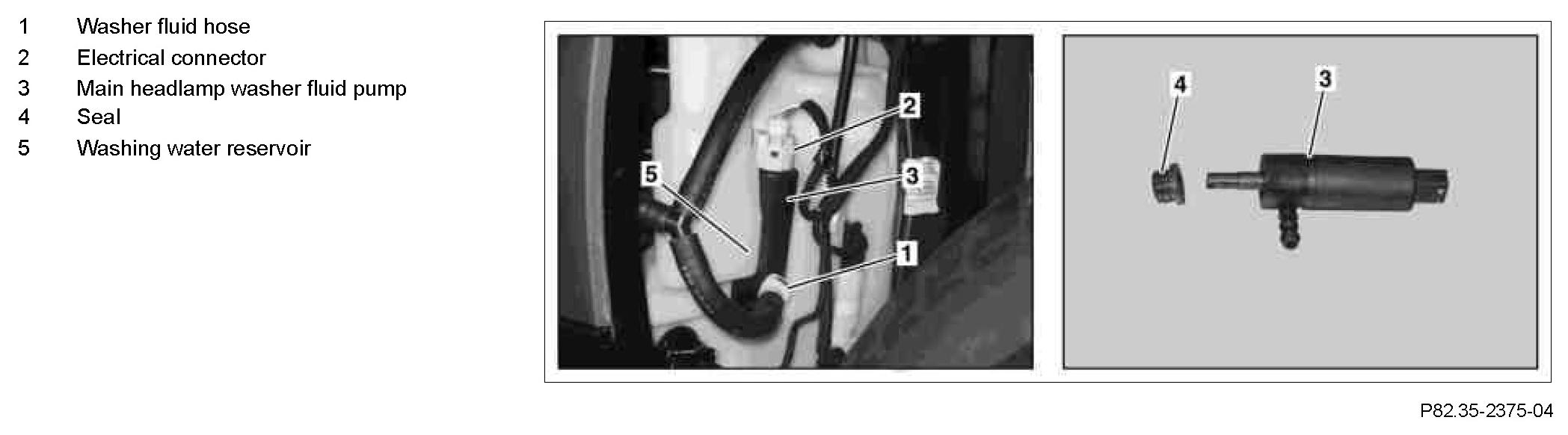

Component Identification:

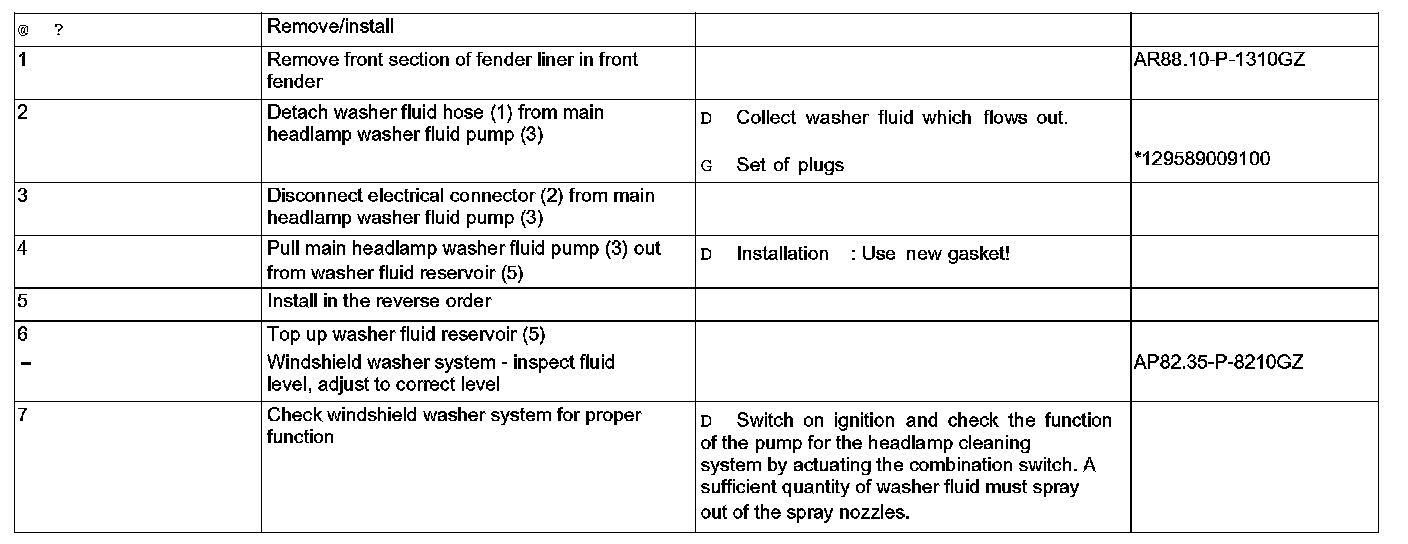

Steps 1 - 7:

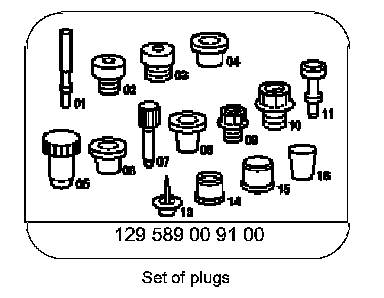

Special Tools:
